Panasonic PT-DZ870E

Chapter 2 Getting Started — Setting up
ENGLISH - 33
Attention
f To ensure projector performance and security, installation of the Ceiling Mount Bracket must be carried out by your dealer or a qualied
technician.

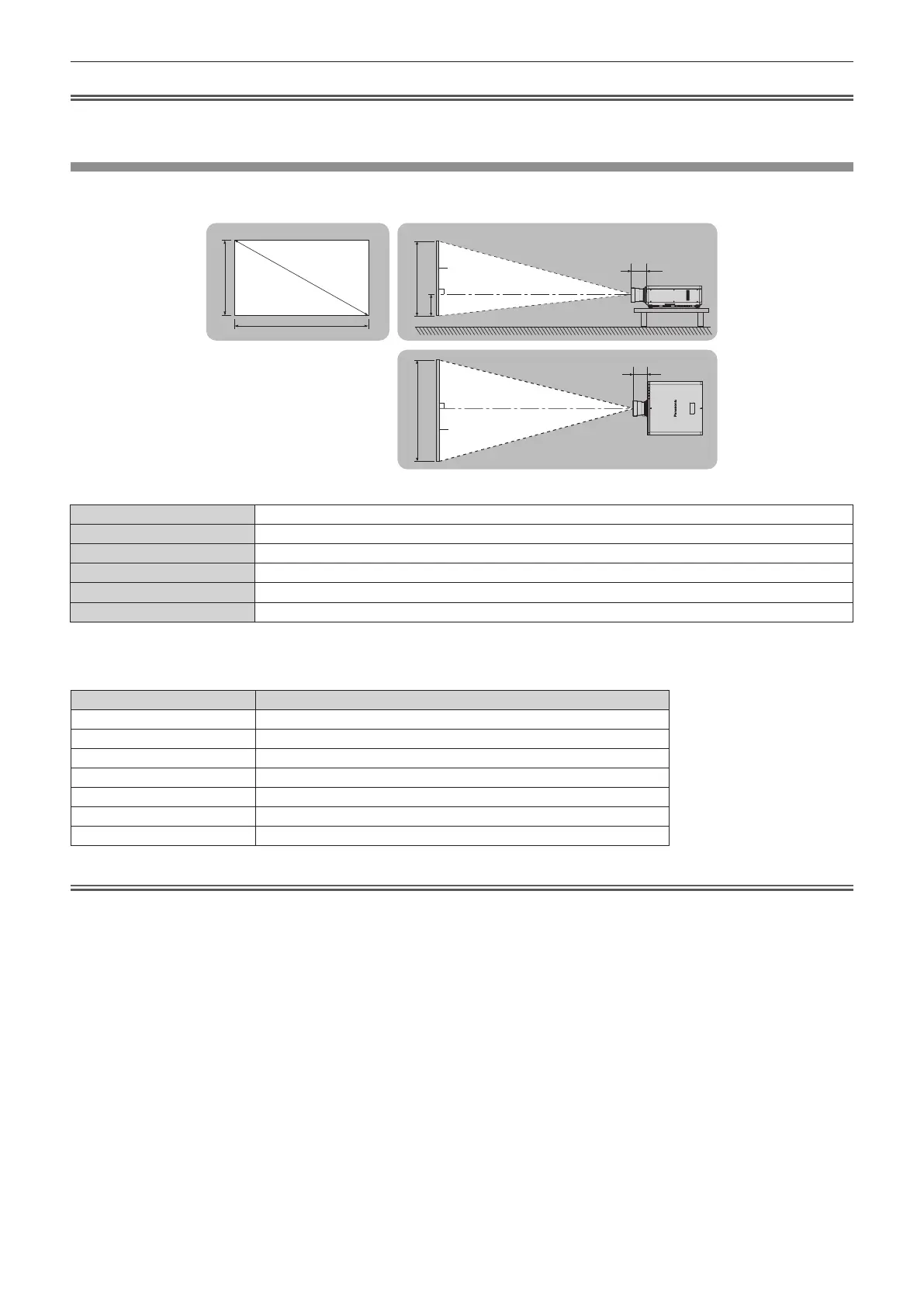

Screen size and throw distance
Refer to the screen size and projection distances to install the projector. Image size and image position can be adjusted in accordance with the
screen size and screen position.
SD
L (LW/LT)
L1
L1
L (LW/LT)
SW SH
H
SH
SW
Projection screen
Screen
Screen
(Unit: m)
L (LW/LT)
*1
Projection distance
L1 Lens protrusion dimension
SH Image height
SW Image width
H Distance from the lens center to the lower edge of the image
SD Image diagonal size
*1 LW: Minimum projection distance when the Zoom Lens is used
LT: Maximum projection distance when the Zoom Lens is used
(Unit: m)
Projection lens Model No. L1 dimension (approximate value)
Standard lens 0.043
ET-DLE055 0.027
ET-DLE085 0.084
ET-DLE150 0.044
ET-DLE250 0.045
ET-DLE350 0.051
ET-DLE450 0.095
Attention
f Before setting up, read “Precautions for use” (x page 16).
f Do not use the projector and the high-powered laser equipment in the same room. The DLP chips can be damaged if a laser beam hits the
projection lens surface.
