Panasonic PT-DZ870E

Chapter 4 Settings — [POSITION] menu
82 - ENGLISH

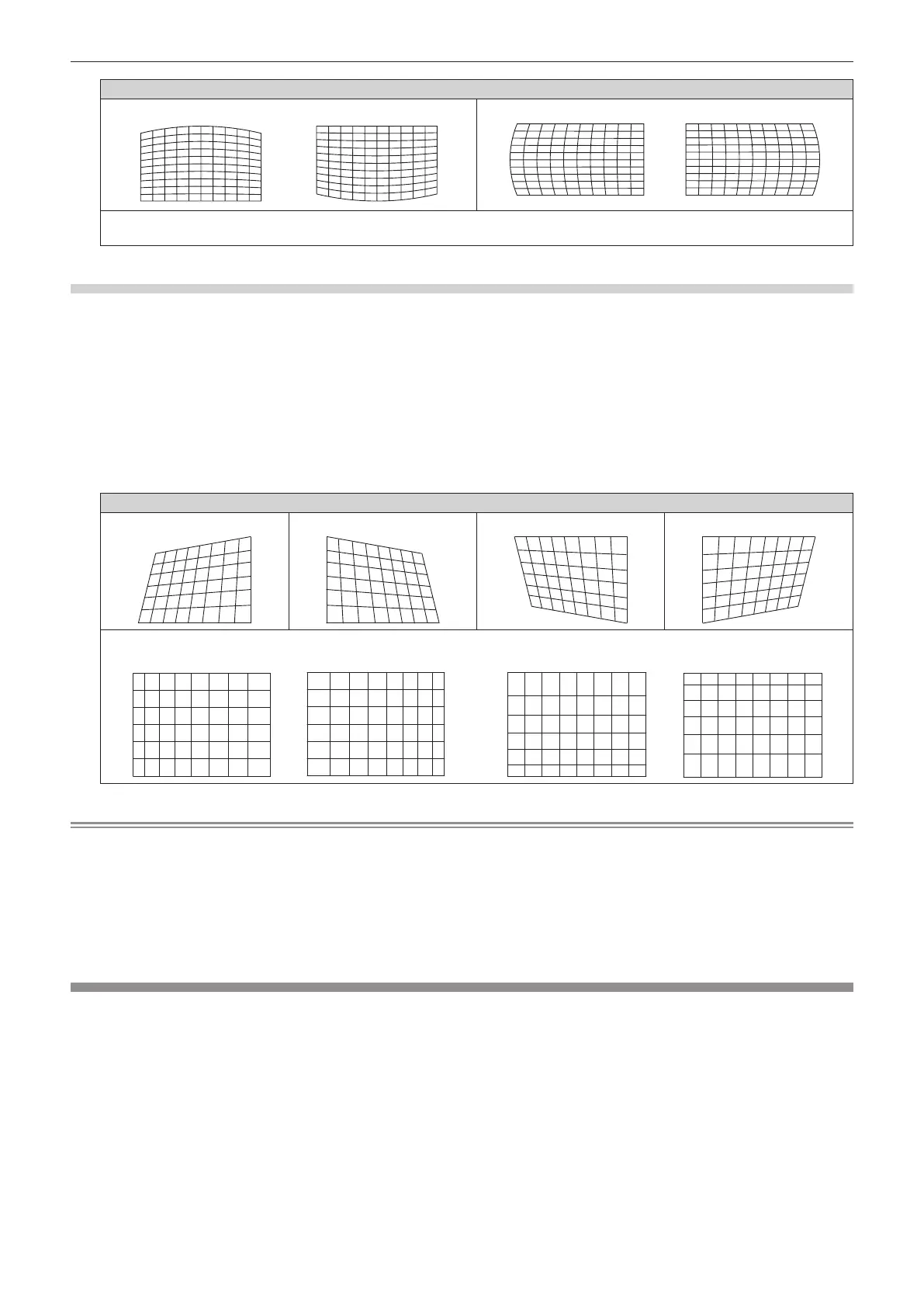

[CURVED]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press as to select [GEOMETRY(2D)].
2) Press qw to select [CORNER CORRECTION].
3) Press the <ENTER> button.
f The [GEOMETRY:CORNER CORRECTION] screen is displayed.
4) Press as to select the item to adjust, and press the <ENTER> button.
5) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]
[LINEARITY]
Horizontal direction
Vertical direction
Note
f The menu or logo may run off the screen when [GEOMETRY(2D)] is set.
f If [EDGE BLENDING] (x page 86) adjustment and [GEOMETRY(2D)] are used together, correct edge blending adjustment may not be
possible in certain environments.
f The optional Upgrade Kit (Model No.: ET-UK20) can be used to expand the correctable range. To purchase the product, consult your dealer.
f [GEOMETRY(2D)] is selectable only when a 2D image is displayed. The setting is invalid while a 3D image is displayed. When executing
the keystone correction while displaying a 3D image, set with [KEYSTONE(3D)].
However, if [3D SYSTEM SETTING] is set to [DUAL (LEFT)] or [DUAL (RIGHT)], the keystone correction becomes possible by selecting
[GEOMETRY(2D)] while a 3D image is displayed.
[KEYSTONE(3D)]
(Only for PT-DZ870E)
While displaying a 3D image, corrects the keystone distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE(3D)].
2) Press the <ENTER> button.
f The [KEYSTONE(3D)] screen is displayed.
3) Press as to select the item to adjust.
4) Press qw to adjust.
