Panasonic PT-DZ870E

Chapter 2 Getting Started — Setting up
32 - ENGLISH
Setting up

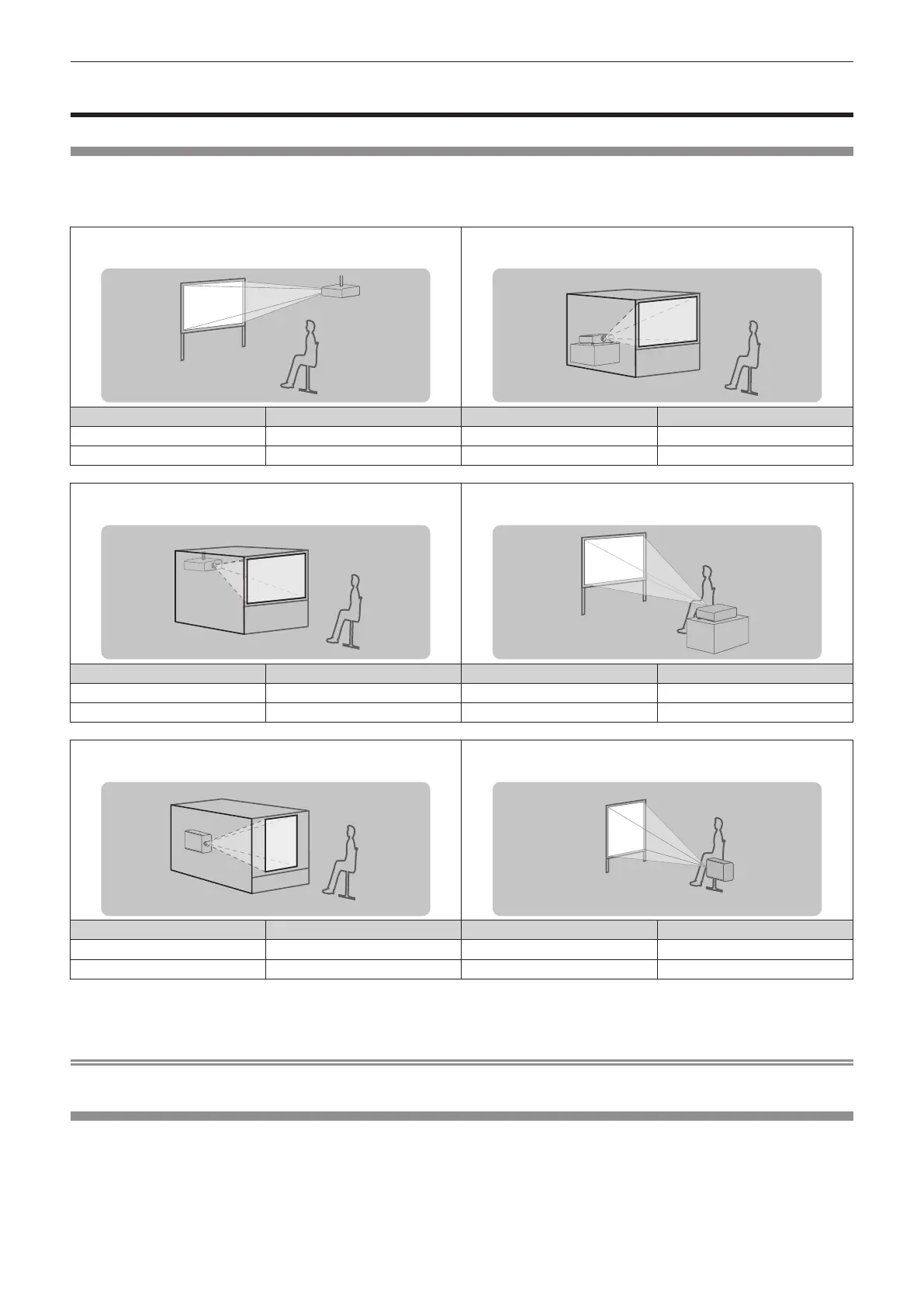

Installation mode
There are six ways to set up the projector. Set the [PROJECTOR SETUP] menu → [PROJECTION METHOD] (x page 108) depending on
the installation method. Set [COOLING CONDITION] to [AUTO]. Using the projector with [COOLING CONDITION] set incorrectly may shorten
the life of the lamp.
Mounting on the ceiling and projecting forward Setting on a desk/oor and projecting from rear
(Using the translucent screen)
Menu item Method Menu item Method
[PROJECTION METHOD] [FRONT/CEILING] [PROJECTION METHOD] [REAR/FLOOR]
[COOLING CONDITION] [AUTO] [COOLING CONDITION] [AUTO]
Mounting on the ceiling and projecting from rear
(Using the translucent screen)
Setting on a desk/oor and projecting forward
Menu item Method Menu item Method
[PROJECTION METHOD] [REAR/CEILING] [PROJECTION METHOD] [FRONT/FLOOR]
[COOLING CONDITION] [AUTO] [COOLING CONDITION] [AUTO]
Portrait setting and projecting from the rear
*1
(Using the translucent screen)
Portrait setting and projecting forward
*1
Menu item Method Menu item Method
[PROJECTION METHOD] [REAR/FLOOR] [PROJECTION METHOD] [FRONT/FLOOR]
[COOLING CONDITION] [PORTRAIT SETTING]
*2
[COOLING CONDITION] [PORTRAIT SETTING]
*2
*1 For the portrait setting, use the optional Replacement lamp unit (for portrait mode) (Model No.: ET-LAD120P (1 pc), ET-LAD120PW (2 pcs)).
*2 Using the optional Replacement lamp unit (for portrait mode) (Model No.: ET-LAD120P (1 pc), ET-LAD120PW (2 pcs)) will set the cooling condition
to [PORTRAIT SETTING].
Note
f In the portrait setting, the on-screen menu is displayed sideways.
Parts for ceiling mount (optional)
You can install the projector on the ceiling using the optional Ceiling Mount Bracket (Model No.: ET-PKD120H (for high ceilings), ET-PKD120S
(for low ceilings), and ET-PKD120B (Projector Mount Bracket)).
f Be sure to use the Ceiling Mount Bracket specied for this projector.
f Refer to the Installation Instructions supplied with the Ceiling Mount Bracket when installing the projector with the bracket.
