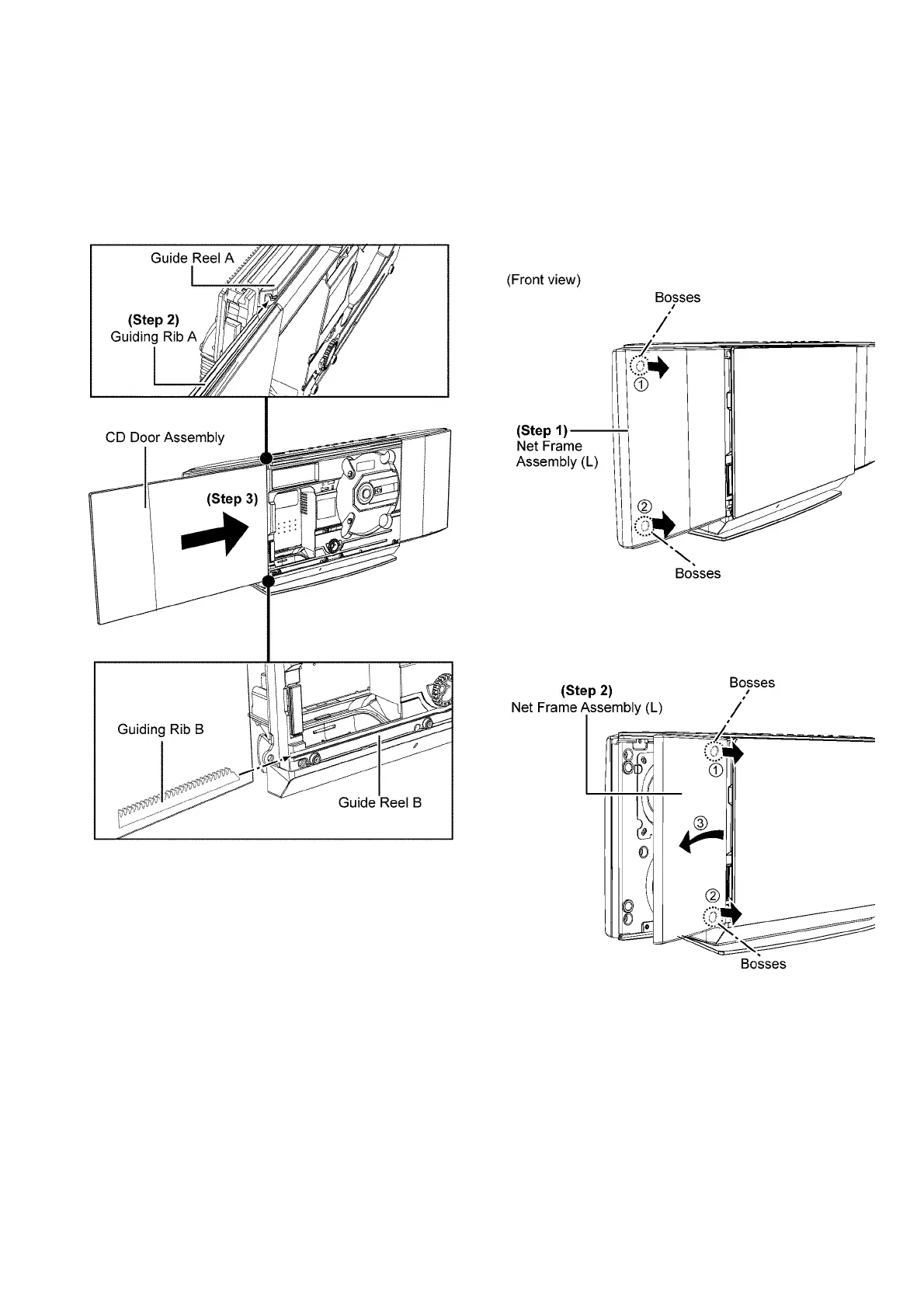

Step 2 : Align the CD Door Assembly with the (upper & lower
rib), with guide reel (A & B) on the front panel.
Step 3 : Gently slide the CD Door Assembly until it is fully
closed.
Caution : Do not exert strong force to slide the CD Door
Assembly as it may damage the gear. If the CD Door
Assembly cannot be closed fully or half-way, push the CD
Door Assembly in opposite direction and Repeat (Step 2 &
Step 3).
9.6. Disassembly of Net Frame
Assembly
9.6.1. Disassembly of Net Frame Assem-
bly (L)
Step 1 : Gently lift up Net Frame Assembly (L).
Caution : During assembling, ensure the net frame assem-
bly (L) is seated properly
Step 2 : Remove Net Frame Assembly (L) as arrow shown.
