9.26. Replacement of Diode (D5802)
• Refer to "Disassembly of SMPS P.C.B.".
9.26.1. Disassembly of Diode (D5802)
Caution : Handle the heatsink unit and P.C.B. with caution
due to its high temperature after prolonged use. Touching
it may lead to injuries.

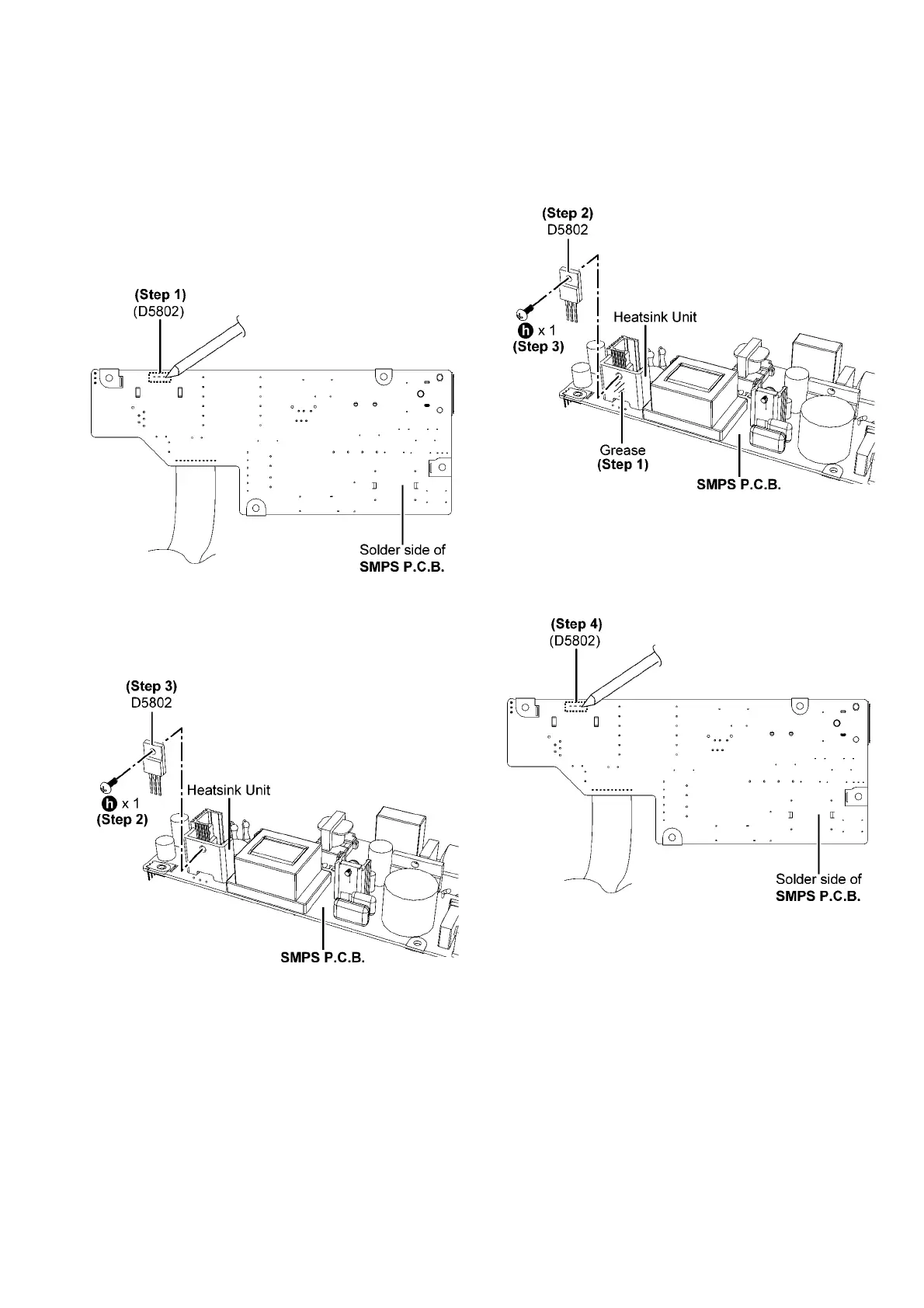

Step 1 : Desolder pins of Diode (D5802) on the solder side of
SMPS P.C.B..
Step 2 : Remove 1 screw.
Step 3 : Remove the Diode (D5802).
9.26.2. Assembly of Diode (D5802)
Step 1 : Apply grease to the Heatsink Unit.
Step 2 : Mount the Diode (D5802) onto SMPS P.C.B.
Caution : Ensure the Diode (D5802) is seated properly on
the SMPS P.C.B..
Step 3 : Fix & screw the Diode (D5802) onto the Heatsink Unit.
Step 4 : Solder pins of the Diode (D5802).
Caution : Ensure the Diode (D5802) is seated properly onto
the SMPS P.C.B. before soldering.
