10 Service Position
Note: For description of the disassembly procedures, see the Section 9
10.1. Checking & Repairing of Panel
P.C.B.
Step 1 : Remove the Stand Unit.
Step 2 : Remove the CD Door Assembly.
Step 3 : Remove the Net Frame Assembly.
Step 4 : Remove the Front Panel Block.
Step 5 : Use tape to keep the Switch depressed.
Step 6 : Flip over the Front Panel Block.

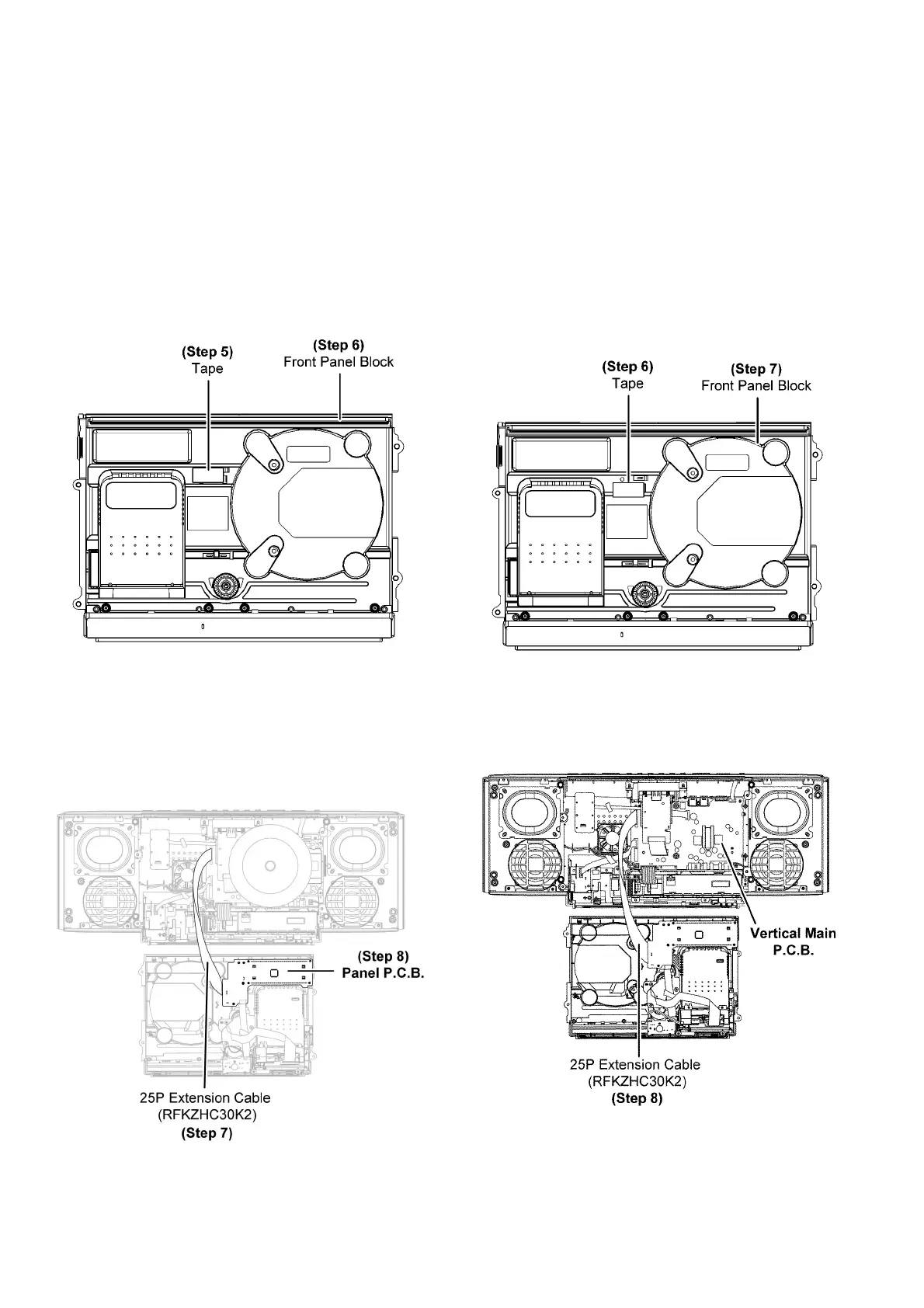

Step 7 : Connect 25P extension cable (RFKZHC30K2) from
CN6801 on the Panel P.C.B. to CN900 on the Vertical Main
P.C.B..
Step 8 : Check and repair the Panel P.C.B. according to the
diagram shown.
10.2. Checking & Repairing of CD
Servo P.C.B.
Step 1 : Remove the Stand Unit.
Step 2 : Remove the CD Door Assembly.
Step 3 : Remove the Net Frame Assembly.
Step 4 : Remove the Front Panel Block.
Step 5 : Remove the Traverse Unit.
Step 6 : Use tape to keep the Switch depressed.
Step 7 : Flip over the Front Panel Block.
Step 8 : Connect 25P extension cable (RFKZHC30K2) from
CN6801 on the Panel P.C.B. to CN900 on the Vertical Main
P.C.B..
