Panasonic SC-HC40PC User Manual

38

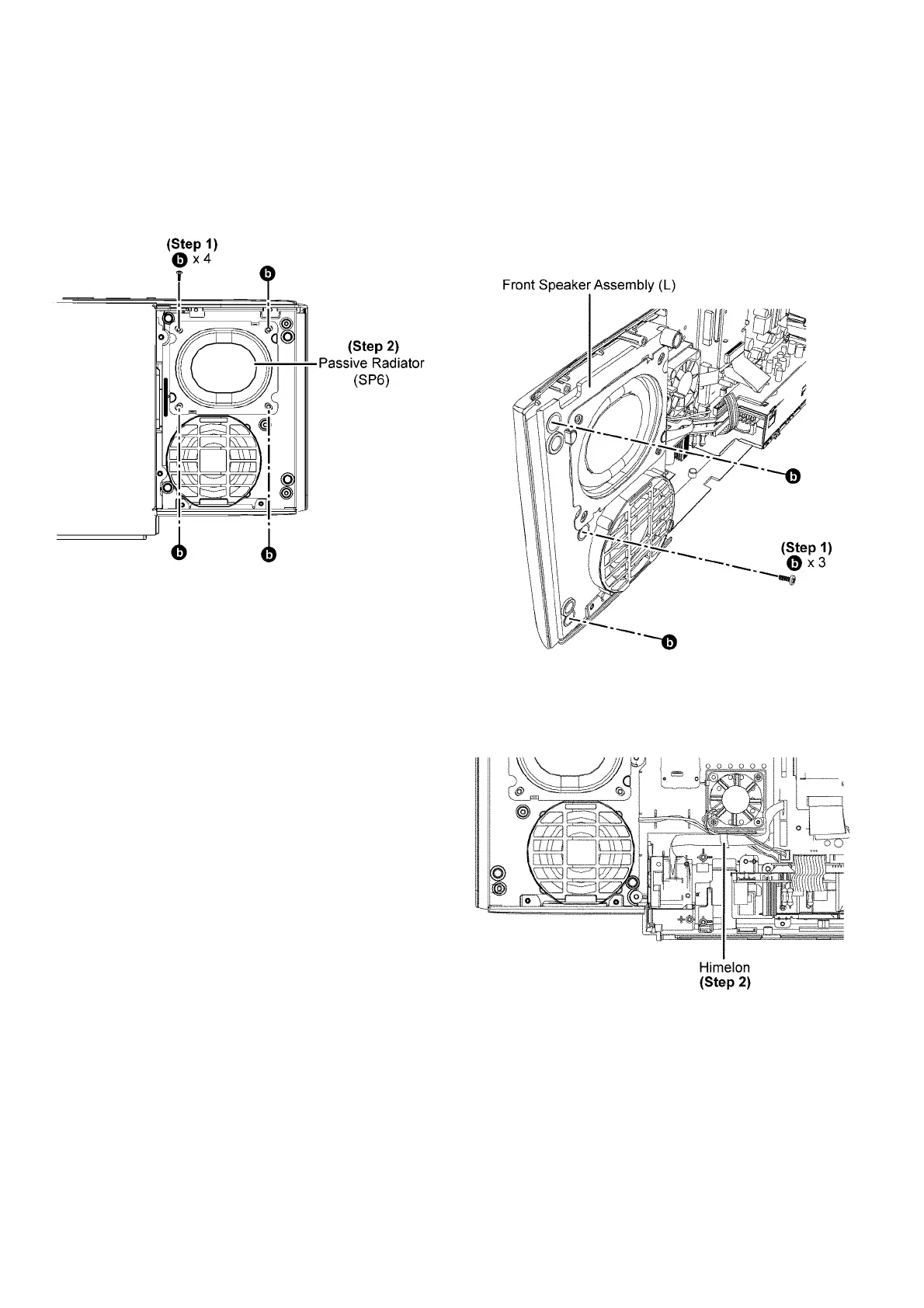

9.11. Disassembly of Passive Radia-
tor (SP6).
• Refer to “Disassembly of Net Frame Assembly (R)”.
Step 1 : Remove 4 screws.
Step 2 : Remove Passive Raidator (SP6).
9.12. Disassembly of Front Speaker
(SP1).
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to “Disassembly of Top Ornament Unit”.
Step 1 : Remove 3 screws.
Step 2 : Lift up the himelon.
Caution : Replace the himelons if they are torn during dis-
assembling.
