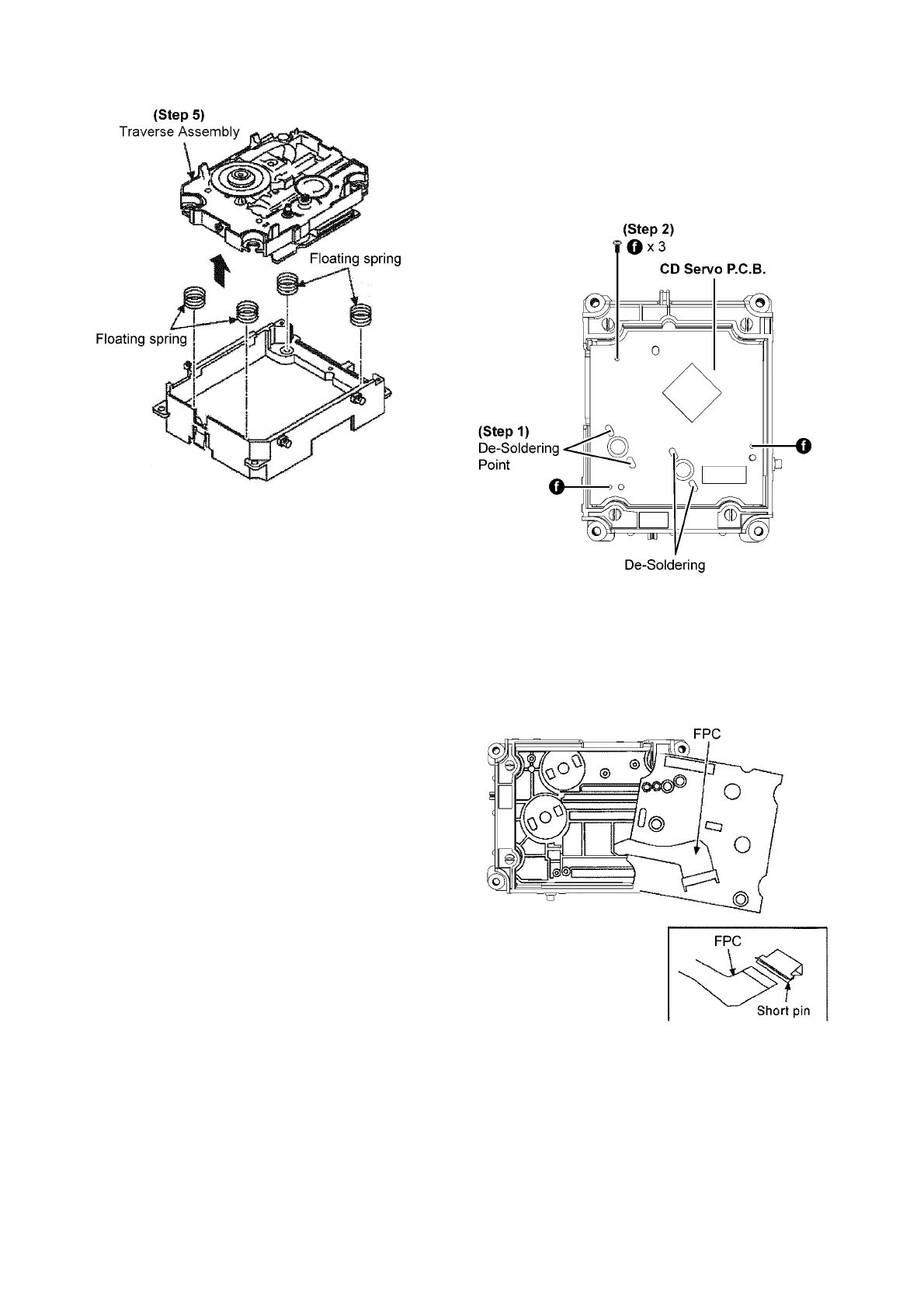

Step 5 : Lift up the Traverse Assembly to remove it.

9.18. Disassembly of CD Servo

P.C.B.

• Refer to "Disassembly of Traverse Unit”

Step 1 : Desolder the terminal.

Step 2 : Remove 3 screws.

Step 3 : Flip the CD Servo P.C.B..

Step 4 : Detach FPC.

Step 5 : Attach a short pin to the unit.

Caution : Insert a short pin into FPC of the optical pickup.

[See “Handling Precautions for traverse unit”]
