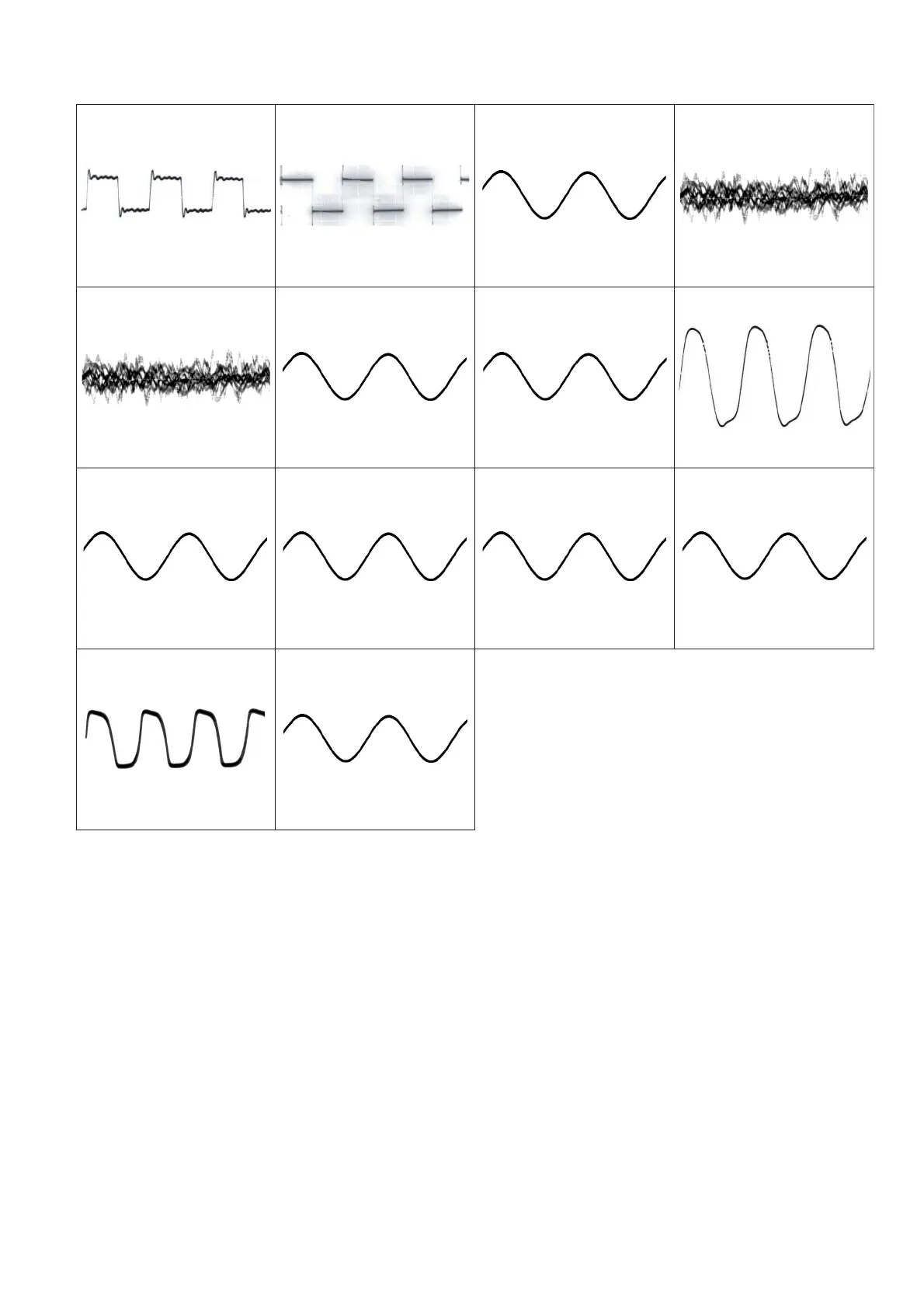

11.12. Waveform Chart
WF No. IC1-1,44 (PLAY)
0.24Vp-p(500nsec/div)
WF No. IC101-40,52 (PLAY)
0.4Vp-p(200usec/div)
WF No. IC801-16 (PLAY)
2.2Vp-p(5usec/div)
WF No. IC7001-74 (PLAY)
1.9Vp-p(20nsec/div)
WF No. IC7001-49,52 (PLAY)
2.4Vp-p(100nsec/div)
WF No. IC7001-73 (PLAY)
4.8Vp-p(20nsec/div)
WF No. IC801-12 (PLAY)
4Vp-p(50nsec/div)
WF No. IC801-13 (PLAY)
2Vp-p(20nsec/div)
WF No. IC801-15 (PLAY)
1.2Vp-p(5usec/div)
WF No. IC101-3,37 (TUNER)
0.2Vp-p(200usec/div)
WF No. IC1-13,14,31,32 (PLAY)
38Vp-p(1usec/div)
WF No. IC52-9,17 (TUNER)
0.2Vp-p(100usec/div)
WF No. IC52-2,13,14 (TUNER)
0.1Vp-p(200usec/div)
WF No. IC101-17,22 (PLAY)
2.2Vp-p(200usec/div)
