9.29. Disassembly of Bluetooth
P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.

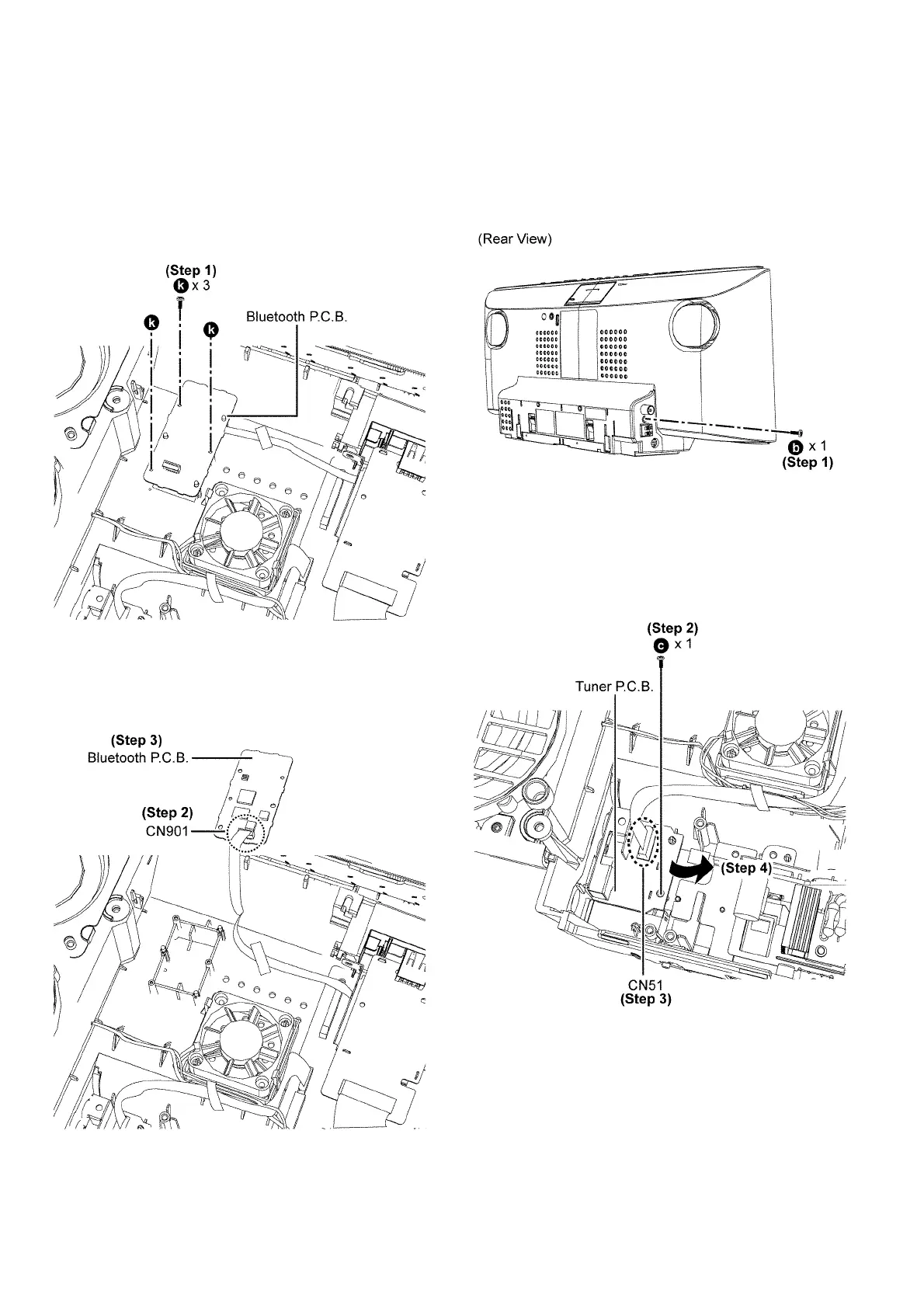

Step 1 : Remove 3 screws.
Step 2 : Detach 10P FFC at the connector (CN901) on the
Bluetooth P.C.B..
Step 3 : Remove Bluetooth P.C.B..
9.30. Disassembly of Tuner P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Remove 1 screw.
Step 2 : Remove 1 screw.
Step 3 : Detach 9P FFC at the connector (CN51) on the Tuner
P.C.B..
Step 4 : Remove Tuner P.C.B. as arrow shown.
