9.9. Disassembly of Button P.C.B.
• Refer to “Disassembly of Top Ornament Unit”.

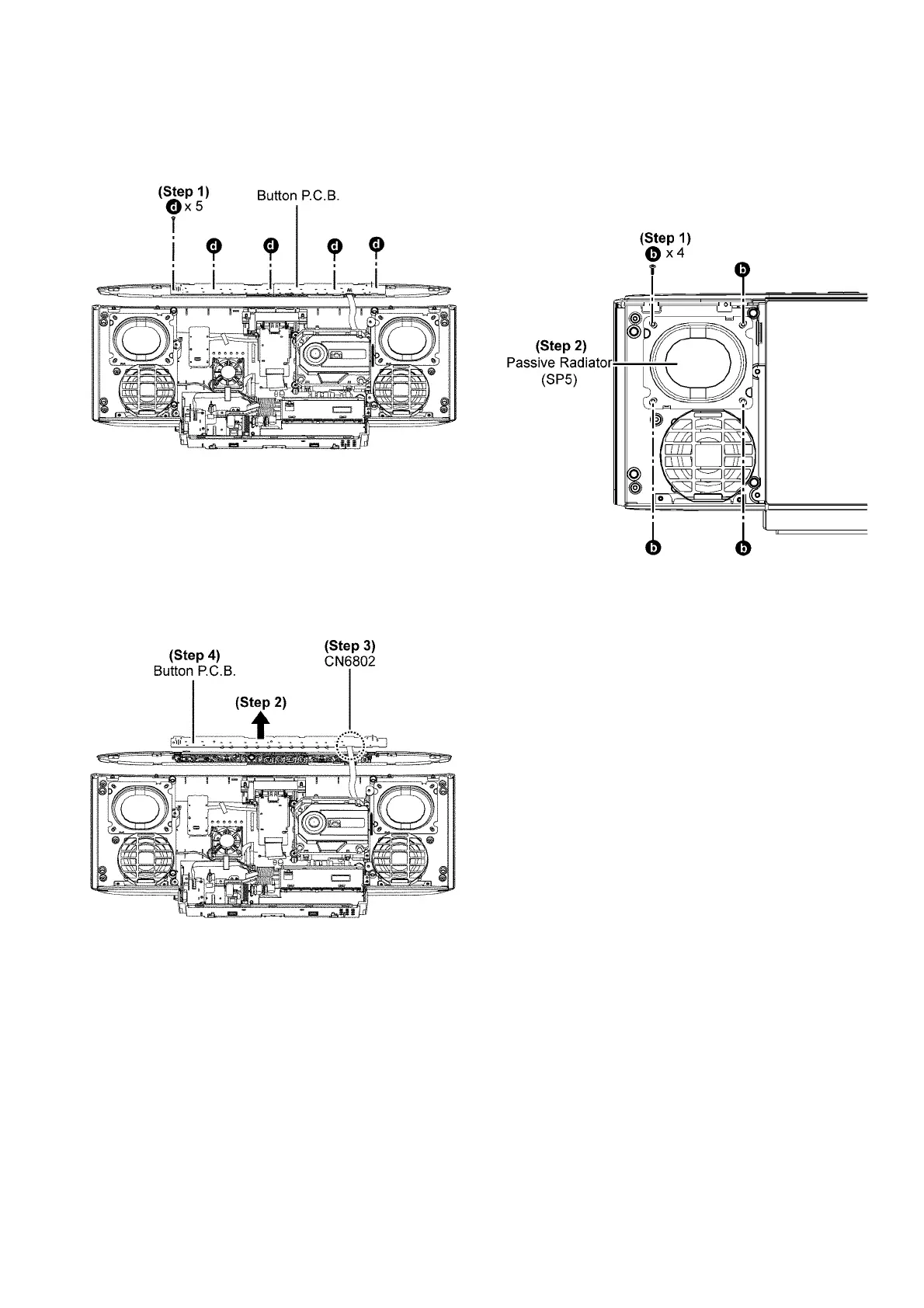

Step 1 : Remove 5 screws.
Step 2 : Lift up the Button P.C.B..
Step 3 : Detach 7P FFC at the connector (CN6802) on the But-
ton P.C.B..
Step 4 : Remove Button P.C.B. as arrow shown.
Caution : During assembling, ensure the Button P.C.B. is
seated properly on the locator.
9.10. Disassembly of Passive Radia-
tor (SP5).
• Refer to “Disassembly of Net Frame Assembly (L)”.
Step 1 : Remove 4 screws.
Step 2 : Remove Passive Raidator (SP5).
