43

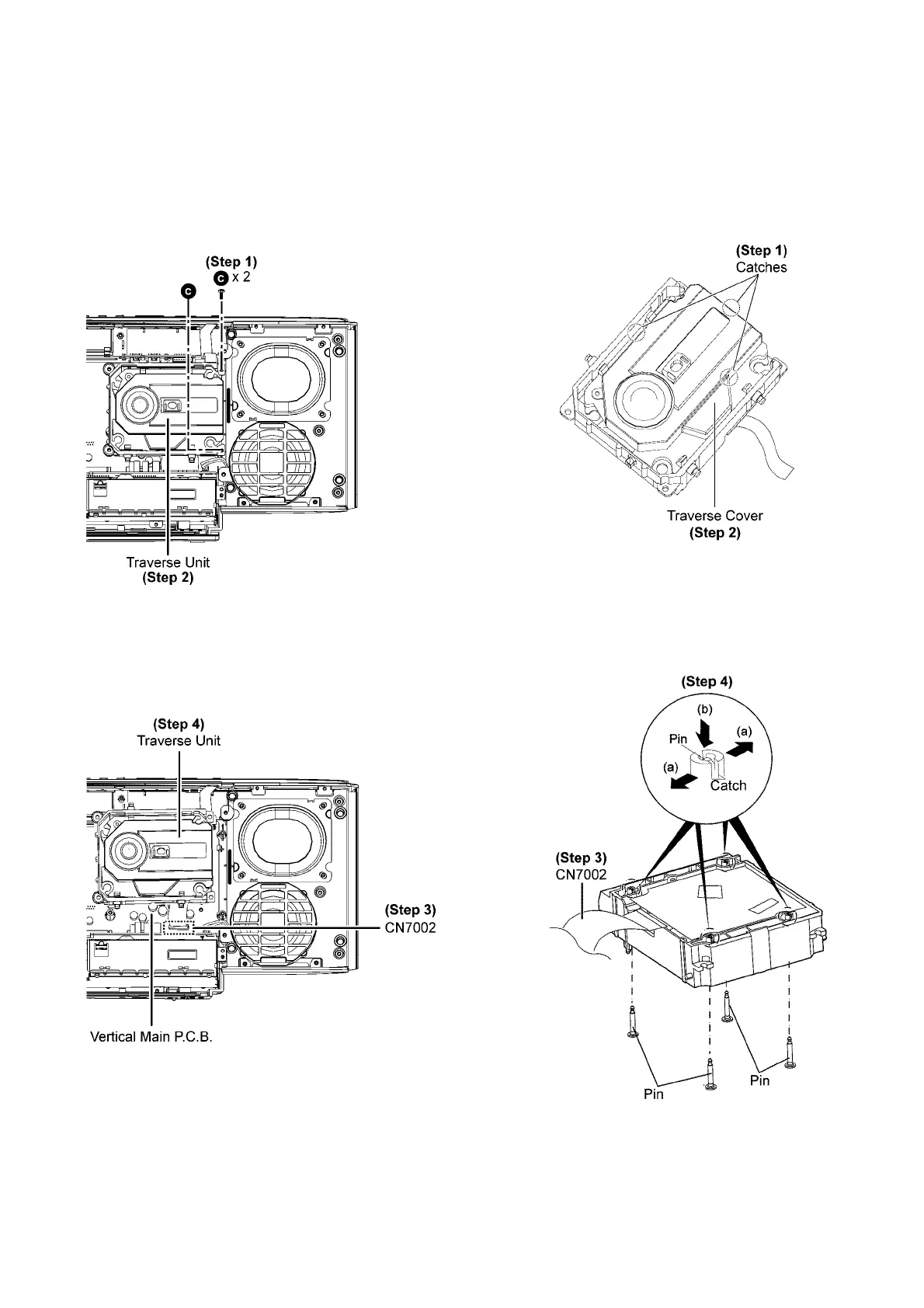

9.16. Disassembly of Traverse Unit.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Remove 2 screws.
Step 2 : Slightly lift up the Traverse Unit.
Step 3 : Detach 25P FFC at the connector (CN7002) on the
Vertical Main P.C.B..
Step 4 : Remove Traverse Unit.
9.17. Disassembly of Traverse Cover
& Traverse Assembly.
• Refer to “Disassembly of Traverse Unit”.
Step 1 : Release 3 catches.
Step 2 : Remove the Traverse Cover.
Step 3 : Detach 25P FFC at the connector (CN7002) on the CD
Servo P.C.B..
Step 4 : Release both catches and push down the fixed pin as
arrow shown.
