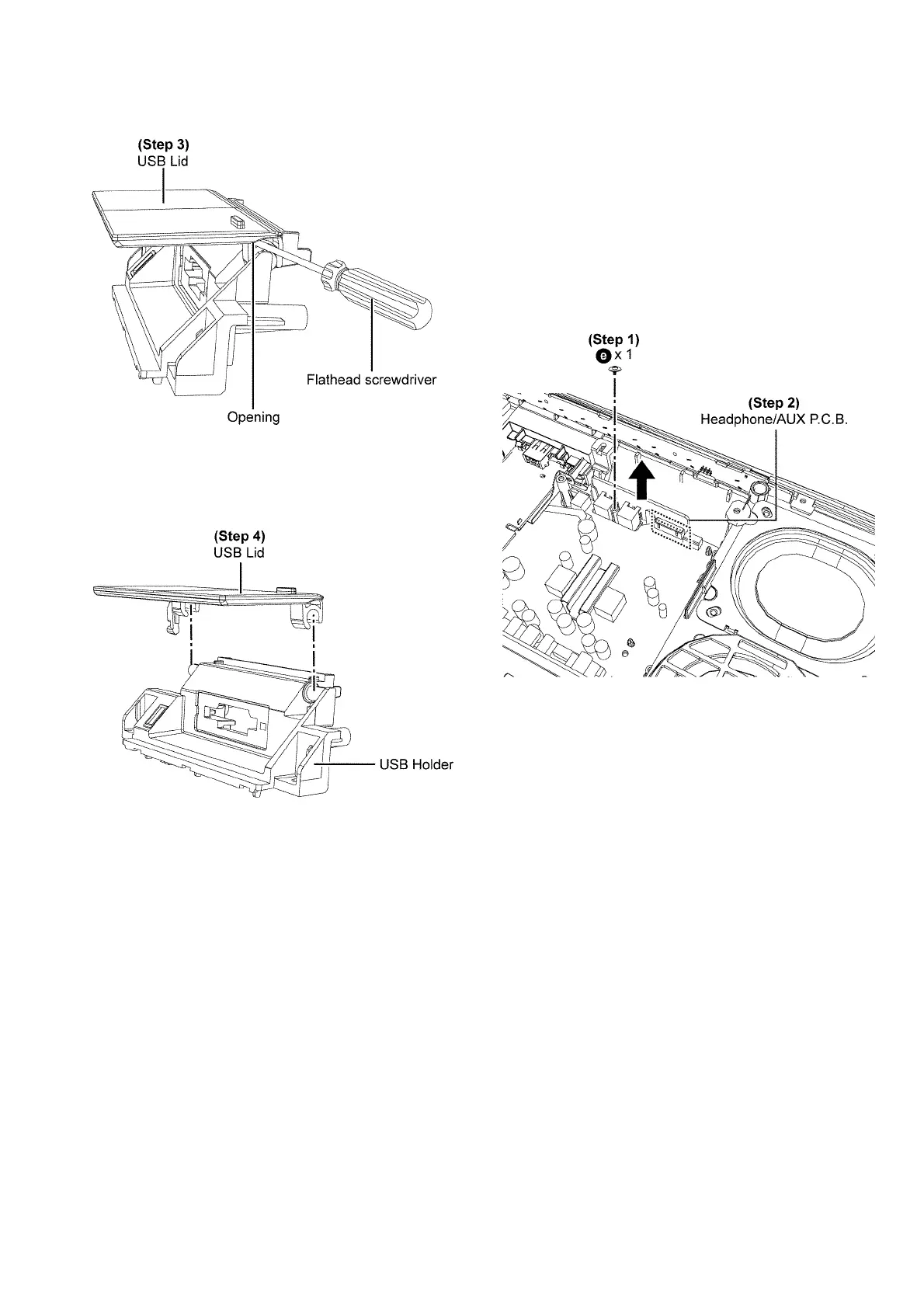

Step 3 : Repeat the same action on the other side of the USB
Lid.
Step 4 : Remove the USB Lid.
9.21. Disassembly of Headphone/
AUX P.C.B.
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
• Refer to "Disassembly of Traverse Unit”
Step 1 : Remove 1 screw.
Step 2 : Remove Headphone/AUX P.C.B..
Caution : During assembling, ensure the Headphone/AUX
P.C.B. is seated properly.
To Next Page
