Caution : During assembling, ensure the Tuner P.C.B. is
seated properly on the locator.

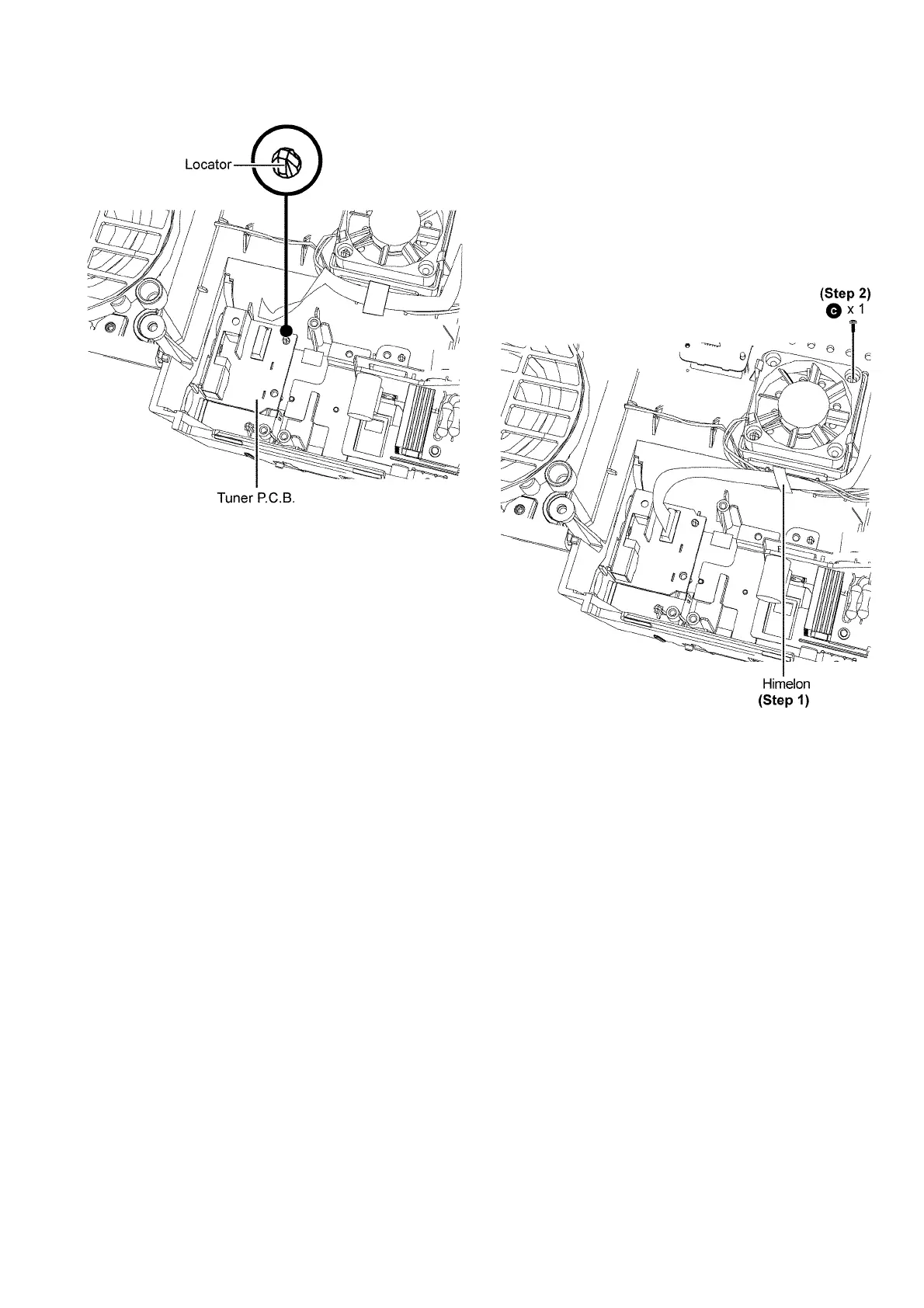

9.31. Disassembly of Fan Unit
• Refer to “Disassembly of Stand Unit”.
• Refer to “Disassembly of CD Door Assembly”.
• Refer to “Disassembly of Net Frame Assembly”.
• Refer to “Disassembly of Front Panel Block”.
Step 1 : Lift up the himelon.
Step 2 : Remove 1 screw.
Caution : Replace the himelon if they are torn during disas-
sembling.
To Next Page
