54

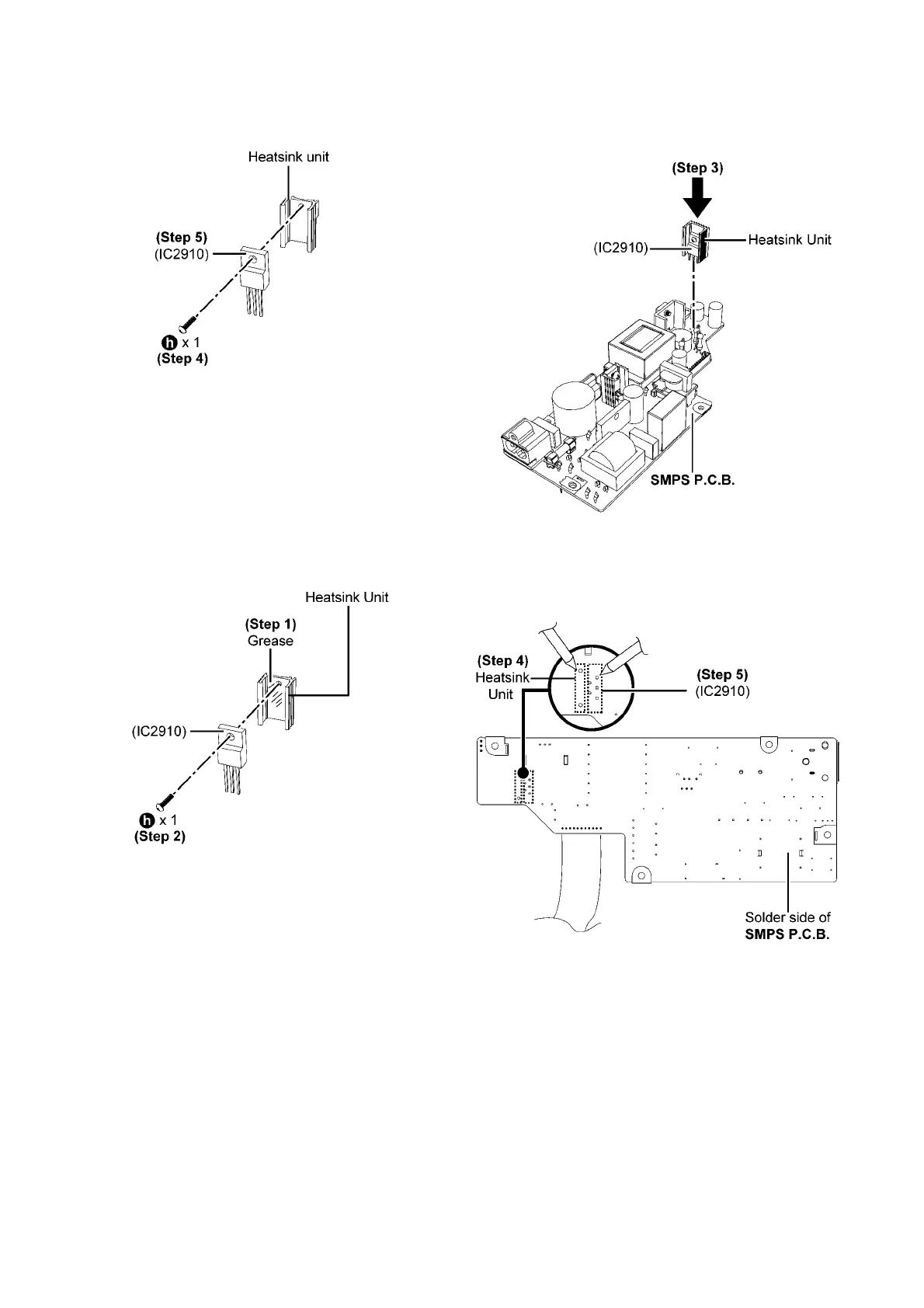

Step 4 : Remove 1 screw.
Step 5 : Remove the Voltage Regulator IC (IC2910).
9.25.2. Assembly of Voltage Regulator IC
(IC2910)
Step 1 : Apply grease to the Heatsink Unit.
Step 2 : Fix & screw the Voltage Regulator IC (IC2910) onto
the Heatsink Unit.
Caution : Ensure the Voltage Regulator IC (IC2910) is
tightly screwed to the Heatsink Unit.
Step 3 : Mount the Voltage Regulator IC (IC2910) onto SMPS
P.C .B .
Caution : Ensure the Voltage Regulator IC (IC2910) is
seated properly on the SMPS P.C.B..
Step 4 : Solder pins of the Heatsink Unit.
Step 5 : Solder pins of the Voltage Regulator IC (IC2910).
Caution : Ensure the Voltage Regulator IC (IC2910) is
seated properly onto the SMPS P.C.B. before soldering.
