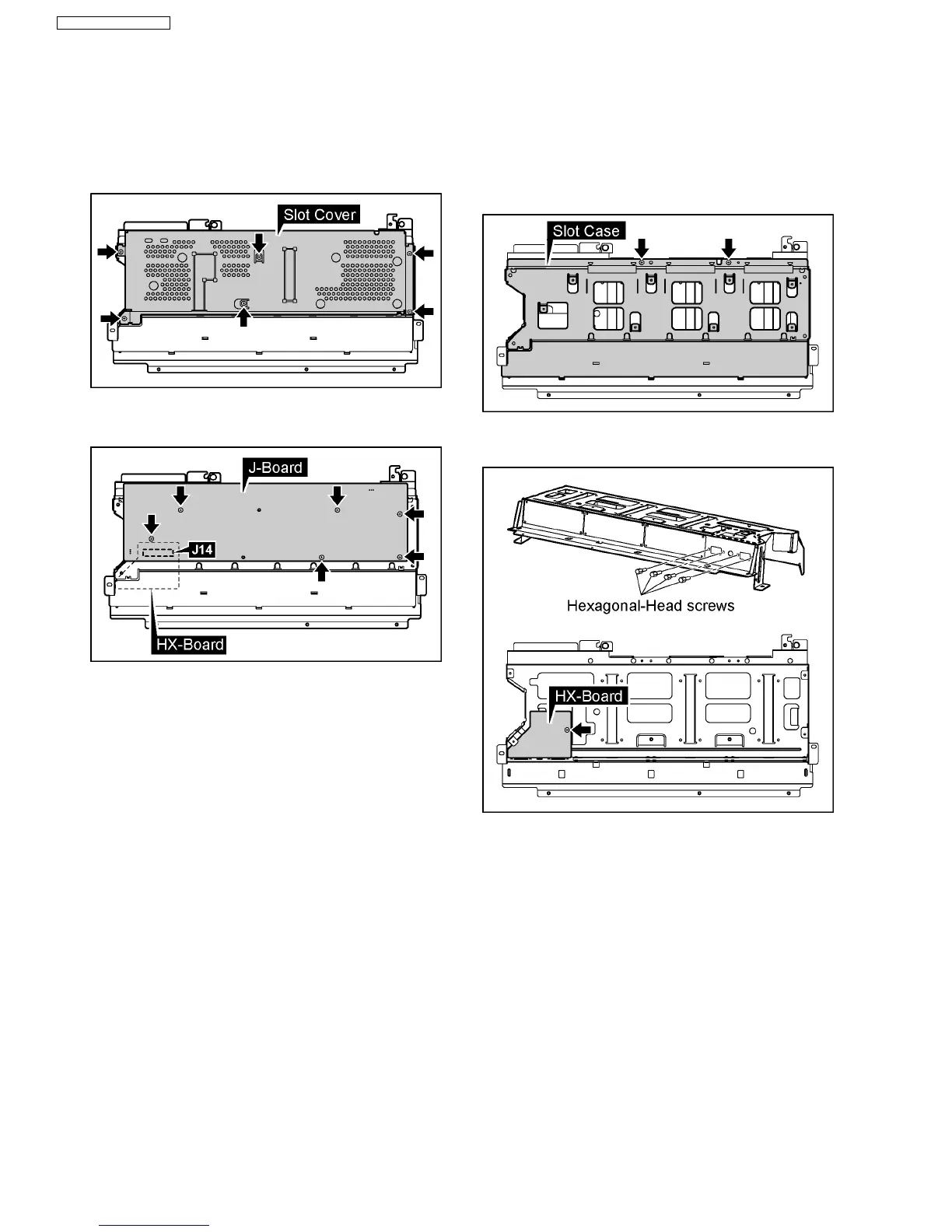

6.4. Removal of the J-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. The slot block is turned inside out.
3. Remove the 6 screws and then remove the Slot cover.
4. Remove the 6 screws, release the coupler(J14) from HX-
Board and then remove the J-Board.
6.5. Removal of the HX-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Remove the J-Board.
(Reference to Removal of the J-Board)
3. Remove the 2 screws and then remove the Slot Case.
4. Remove the 4 Hexagonal-Head screws and the 1 screw
and then remove the HX-Board.
10
TH-37PG9W / TH-42PG9W
