Panasonic TH-37PG9W - 6 Disassembly; Removal of the; Removal of the HA-Board; Removal of the Slot Block

6 Disassembly
· To disassemble P.C.B., wait for 1 minute after power was
off for discharge from electrolysis capacitors.
·
and marks indicate screw positions.

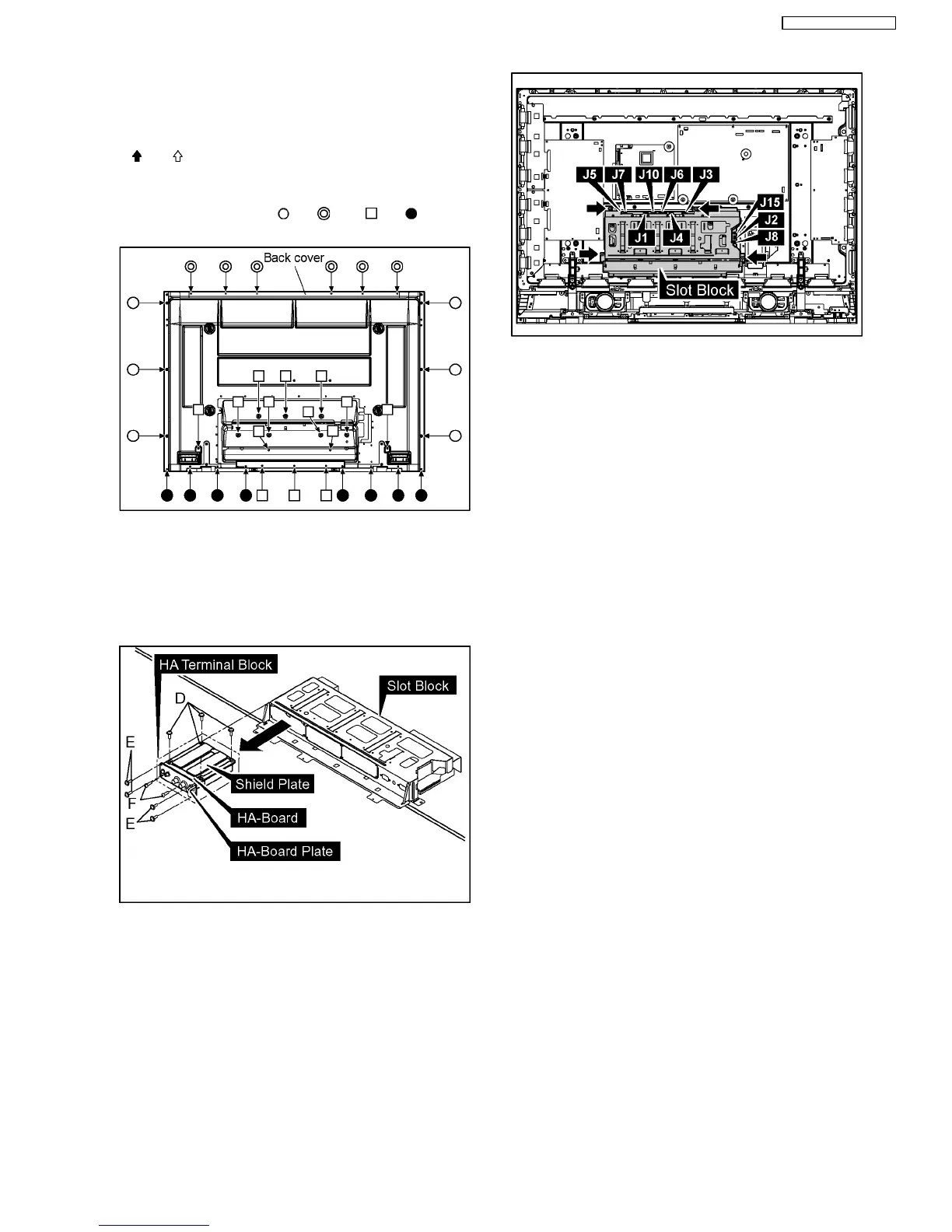

6.1. Removal of the Back Cover
1. Remove the screws (×6 ,×6 , ×14 ,×8 ) and then
remove the Back Cover.
6.2. Removal of the HA-Board
1. Remove the 4 screws(D) and then remove the HA Terminal
Block.
2. Remove the 4 screws(E).
3. Remove the 2 screws(F) and then remove the HA-Board.
6.3. Removal of the Slot Block
1. Disconnect the couplers (J1, J2, J3, J4, J5, J6, J7, J8, J10,
J15).
2. Remove the 4 screws and then remove the Slot Block.
9
TH-37PG9W / TH-42PG9W
