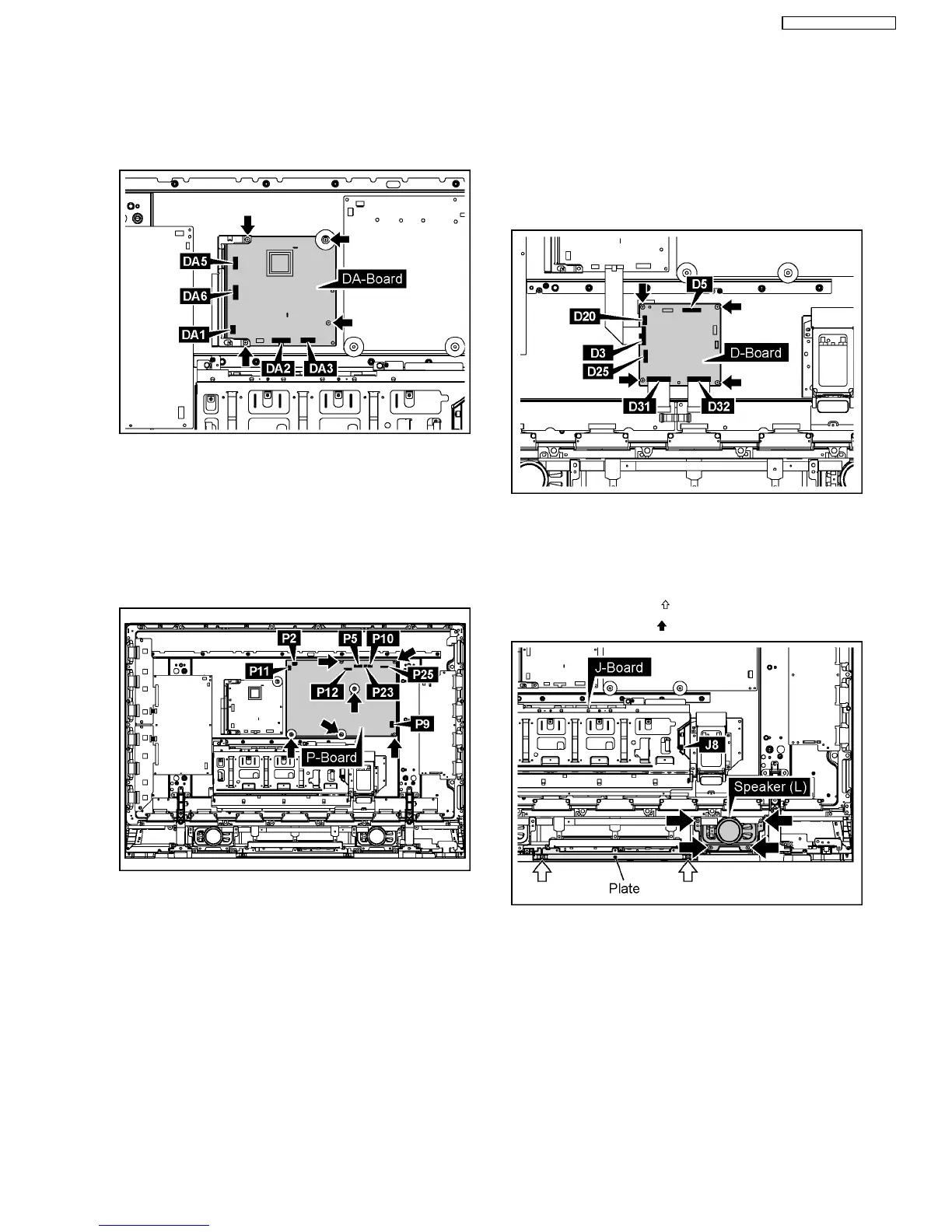

6.6. Removal of the DA-Board
1. Disconnect the couplers(DA1, DA3, DA5, DA6).
2. Remove the Flexible Cable from the coupler(DA2).
3. Remove the 4 screws and then remove the DA-Board.
Note:
A re-setup of the destination is performed by MS mode
after DA-Board exchange.
6.7. Removal of the P-Board
1. Disconnect the couplers(P2, P5, P9, P10, P11, P12, P23,
P25)
2. Remove the 6 screws and then remove the P-Board.
6.8. Removal of the D-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Disconnect the couplers(D5, D20, D25)
3. Remove the Flexible Cable from the couplers (D3, D31,
D32).
4. Remove the 4 screws and then remove the D-Board.
6.9. Removal of the Speaker (L, R)
6.9.1. Removal of the Speaker (L)
1. Disconnect the coupler (J8).
2. Remove the 2 screws (
) and then remove the Plate.
3. Remove the 4 screws (
) and then remove the Speaker (L).
11
TH-37PG9W / TH-42PG9W
