Panasonic TH-37PG9W - Removal of the SS-Board; Removal of the C1, C2-Board

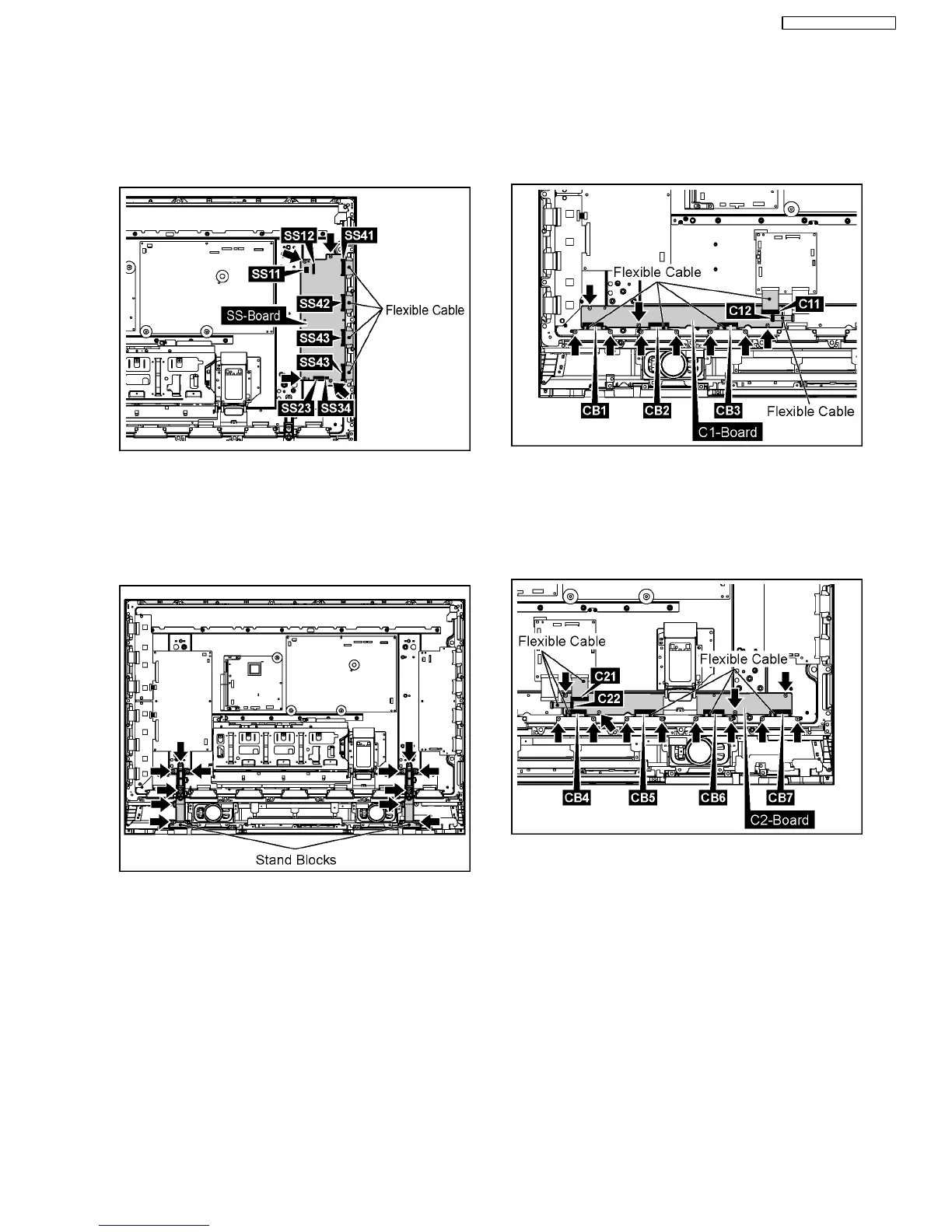

6.12. Removal of the SS-Board
1. Disconnect the couplers(SS11, SS12, SS23, SS34).
2. Remove the Flexible Cable from the couplers(SS41, SS42,
SS43, SS44)
3. Remove the 6 screws and then remove the SS-Board.
6.13. Removal of the C1, C2-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Remove the each 6 screws and then remove the Stand
Blocks.
6.13.1. Removal of the C1-Board
1. Disconnect the couplers(C11, C12).
2. Remove the 6 screws and then remove the Flexible Cable
from the couplers(CB1, CB2, CB3).
3. Remove the 3 screws and then remove the C1-Board.
6.13.2. Removal of the C2-Board
1. Disconnect the coupler(C21, C22).
2. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CB4, CB5 CB6, CB7).
3. Remove the 4 screws and then remove the C2-Board.
13
TH-37PG9W / TH-42PG9W
