5 Service Hint
Note:
·
The remote control transmitter is not included with this set.
·
Execute by the following remote control transmitter when repairing.
product number : EUR7636070R

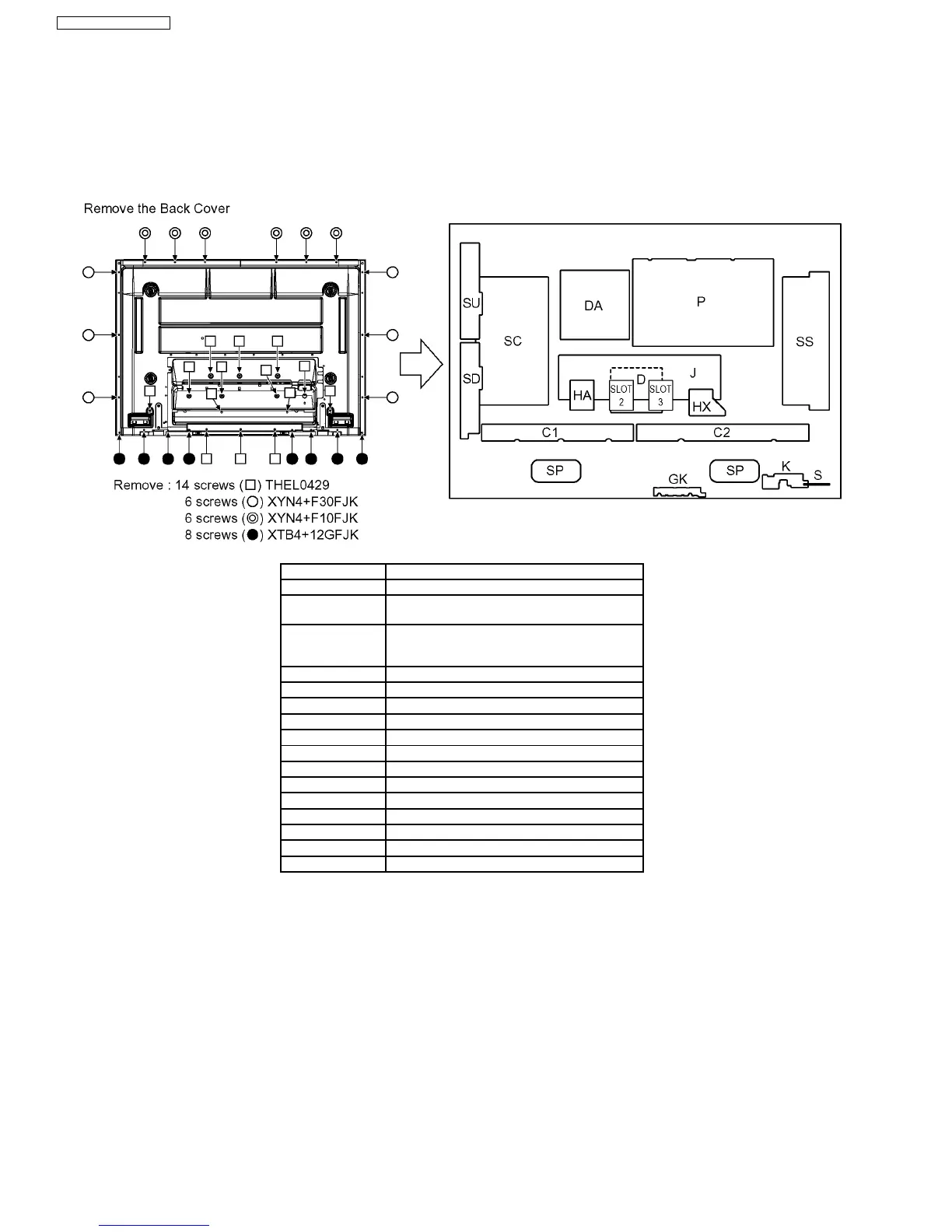

Board Name Function
DA Digital Signal Processor, Micon
D Format Converter, Plasma AI Processor
Sub-Field Processor
J Slot Interface (Audio / Video / Sync input
Switch),
SYNC processor, Sound processor,
SS Sustain drive
SC Scan drive
SU Scan out (Upper)
SD Scan out (Lower)
C1 Data Drive (Right)
C2 Data Drive (Left)
SP Speaker
S Power switch
K Remote receiver, LED_G,R
GK Key switch
P Power supply
HX PC / RS-232C_Input terminal
HA BNC Component Video
Note:
·
Extension cable kit Slot Board is supplied as service fixtures and tools.
(Parts No. TZCS07040)
8
TH-37PG9W / TH-42PG9W
