Panasonic TH-37PG9W - Removal of the SU-Board and the SD-Board; Removal of the SC-Board

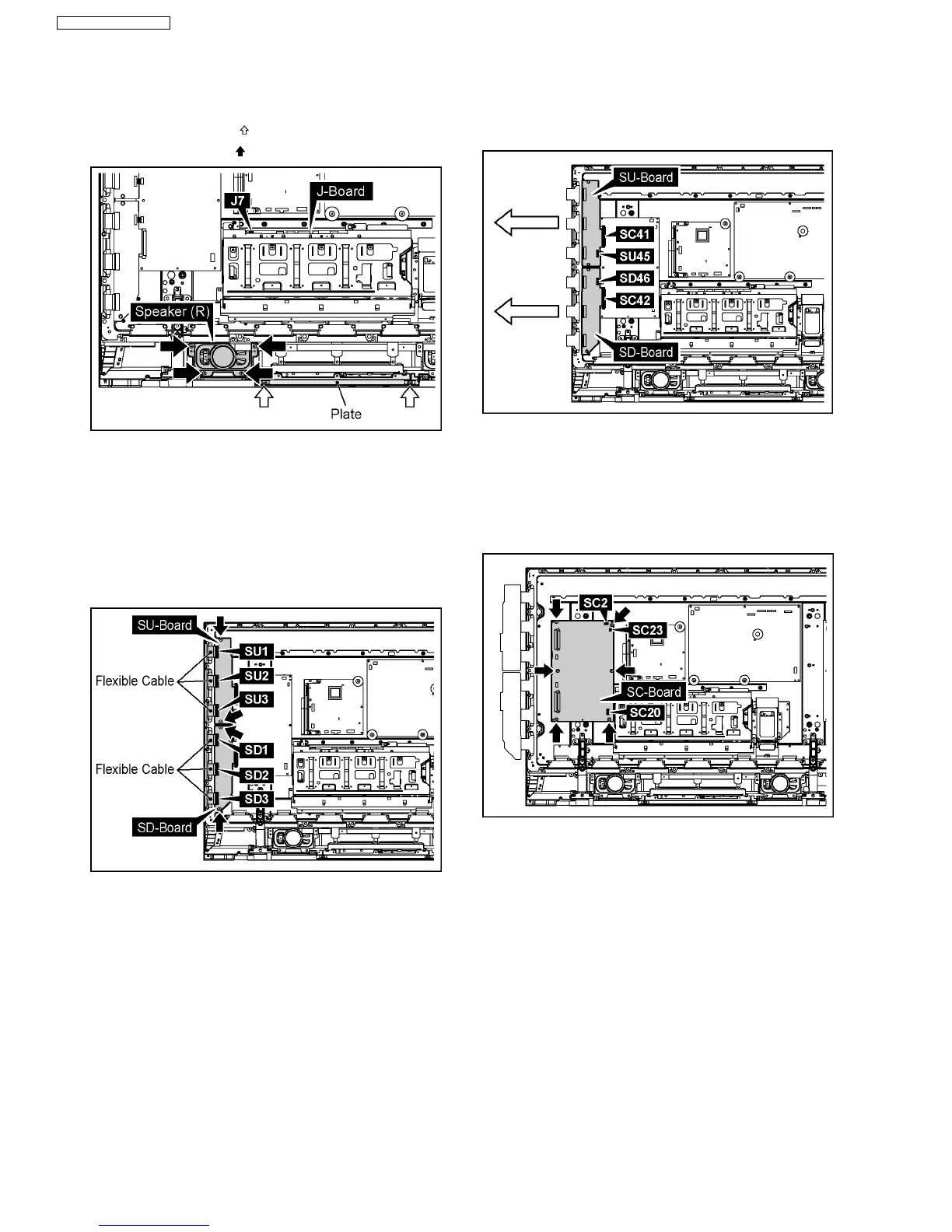

6.9.2. Removal of the Speaker (R)
1. Disconnect the coupler (J7).
2. Remove the 2 screws (
) and then remove the Plate.
3. Remove the 4 screws (
) and then remove the Speaker (R).
6.10. Removal of the SU-Board and
the SD-Board
1. Remove the each 2 screws.
2. Remove the Flexible Cable from the couplers(SU1, SU2,
SU3).
3. Remove the Flexible Cable from the couplers(SD1, SD2,
SD3).
4. Disconnect the couplers(SU45, SD46).
5. Slide the SU-Board and the SD-Board to the left, remove
the SU-Board and the SD-Board from the couplers(SC41,
SC42).
6.11. Removal of the SC-Board
1. Slide the SU-Board and the SD-Board to the left.
(Reference to Removal of the SU-Board and the SD-Board)
2. Disconnect the couplers(SC2, SC20, SC23).
3. Remove the 6 screws and then remove the SC-Board.
