TH-42PG9W

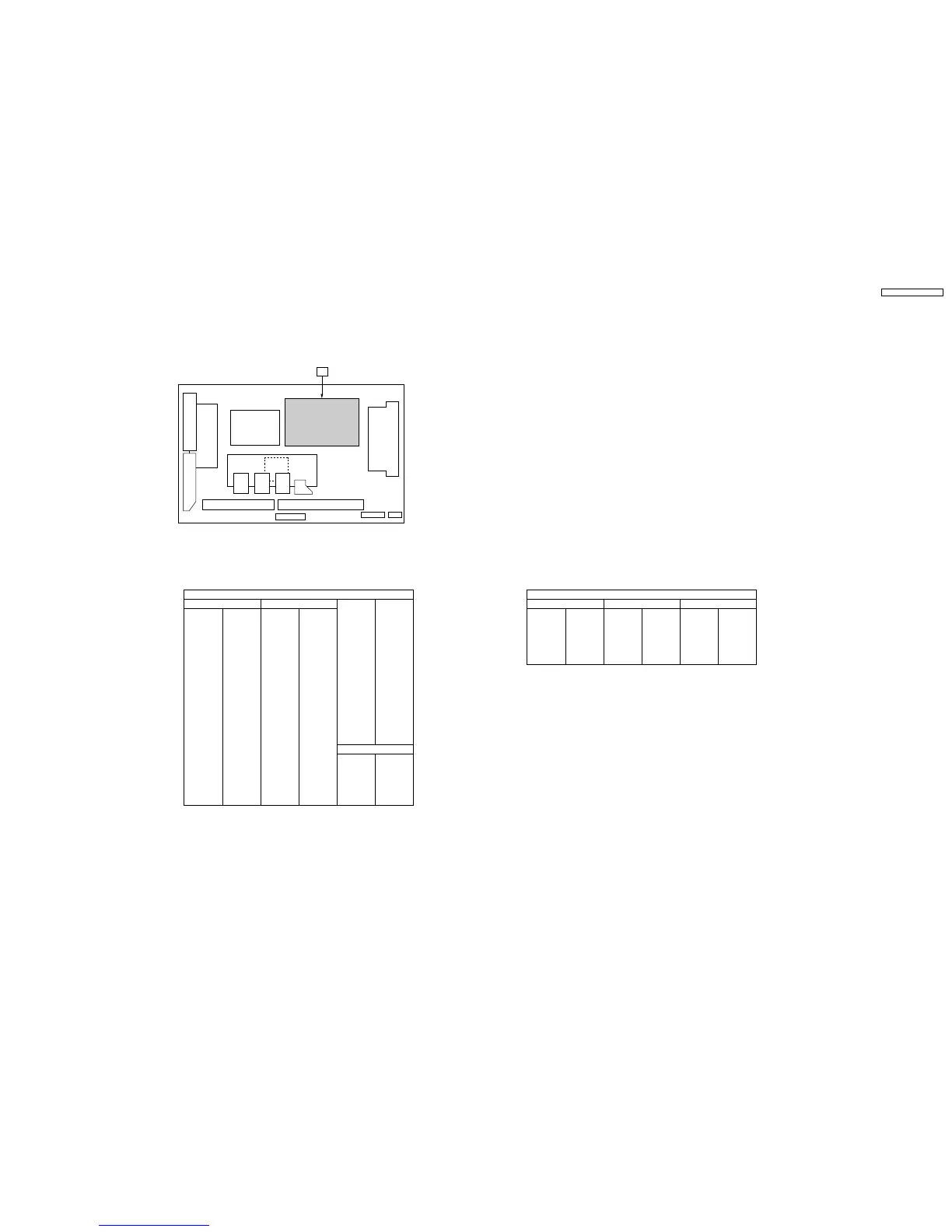

P-BOARD PARTS LOCATION
TH-42PG9W
P-BOARD PARTS LOCATION
Parts LocationParts Location
P-BOARD (COMPONENT SIDE)
IC402 G-4
IC406 D-1
IC409 F-3
IC411 H-4
IC504 H-4
IC509 B-5
IC512 C-5
IC
Q404 C-2
Q406 D-2
Q412 B-3
Q413 B-2
Q434 H-3
Q505 C-5
Q507 C-5
Q527 C-5
TRANSITOR
R443 D-1
R628 C-5
R661 D-5
R665 C-5
R671 B-5
VOLUME
P-BOARD (FOIL SIDE)
IC401 B-4
IC402 C-4
IC403 B-4
IC404 C-4
IC405 C-4
IC406 F-1
IC408 B-4
IC409 C-3
IC410 B-4
IC411 B-4
IC412 A-4
IC501 B-5
IC502 B-5
IC504 B-4
IC505 H-5
IC506 G-5
IC507 G-6
IC509 H-5
IC510 C-6
IC512 F-5
IC520 F-6
IC
Q401 B-4
Q402 E-1
Q404 F-1
Q406 F-2
Q407 F-1
Q408 H-3
Q409 H-2
Q412 H-3
Q413 H-2
Q415 B-4
Q418 G-1
Q420 F-1
Q421 G-1
Q422 F-1
Q434 B-4
Q501 A-5
Q502 A-5
Q505 G-6
Q507 G-5
Q508 E-5
Q509 E-5
Q510 F-5
Q512 A-4
Q517 E-4
Q520 E-4
Q521 C-5
Q524 D-5
Q525 G-5
Q527 F-5
Q530 G-5
TRANSISTOR
R443 F-1
R628 G-5
R661 E-5
R665 G-5
R671 H-4
Q535 A-5
Q537 C-5
Q538 E-5
Q540 G-5
Q541 F-5
Q551 C-5
Q553 B-5
Q554 B-5
Q555 E-4
Q556 D-4
Q557 B-5
Q558 A-4
Q559 B-5
Q561 A-5
Q563 A-6
Q564 F-6
Q565 F-5
Q566 E-6
Q567 F-5
Q568 B-4
Q569 B-6
VOLUME
P
TH-37PG9W / TH-42PG9W
47
