SMARTZONE UPS USER MANUAL

128

Appendix F: Panduit Network Controller Replace

or Rotate 180°

1. Use a T10 Torx screwdriver on the screws as shown in Figure 88. The screws

are held in with retaining washers.

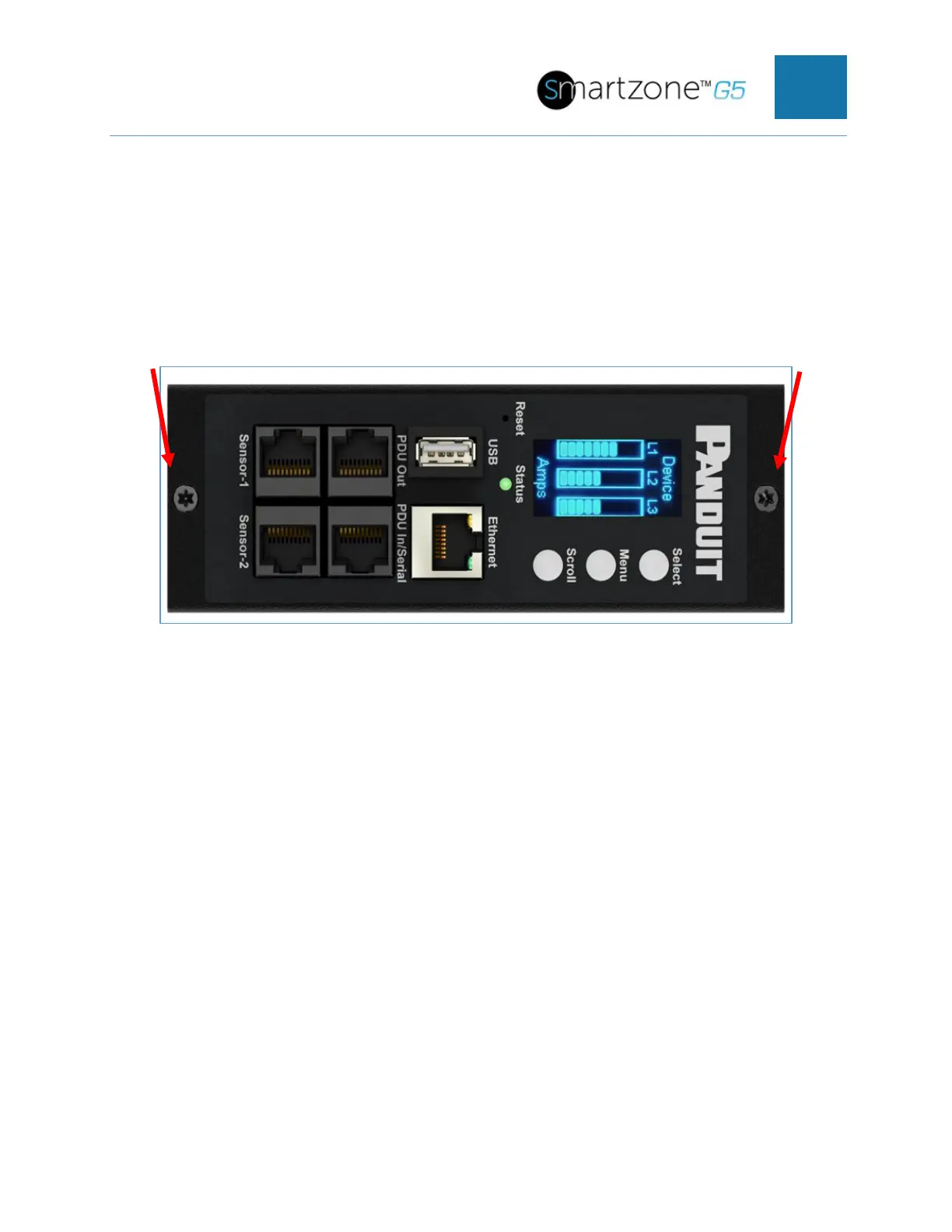

Figure 97: Screws on Network Controller

a. Controller may be rotated to accommodate overhead or underfloor power. If

rotating controller, YOU MUST DISCONNECT the ribbon cable to prevent

damage to the ribbon cable. After rotating the controller, carefully reconnect

the ribbon cable making sure to not pinch any of the ribbon cable.

2. If replacing controller, disconnect the existing ribbon cable from the existing

controller. To reinstall, carefully connect the ribbon cable to the new controller

making sure to not pinch any of the ribbon cable.
