INTELLIGENT PDU USER MANUAL

Alarms Menu

The Alarms menu displays active alarms for the PDU. On the Main Menu, scroll down to

highlight Alarms. Press Select to display the Alarm Screen. When you finish your

review, press Menu to return to the main menu.

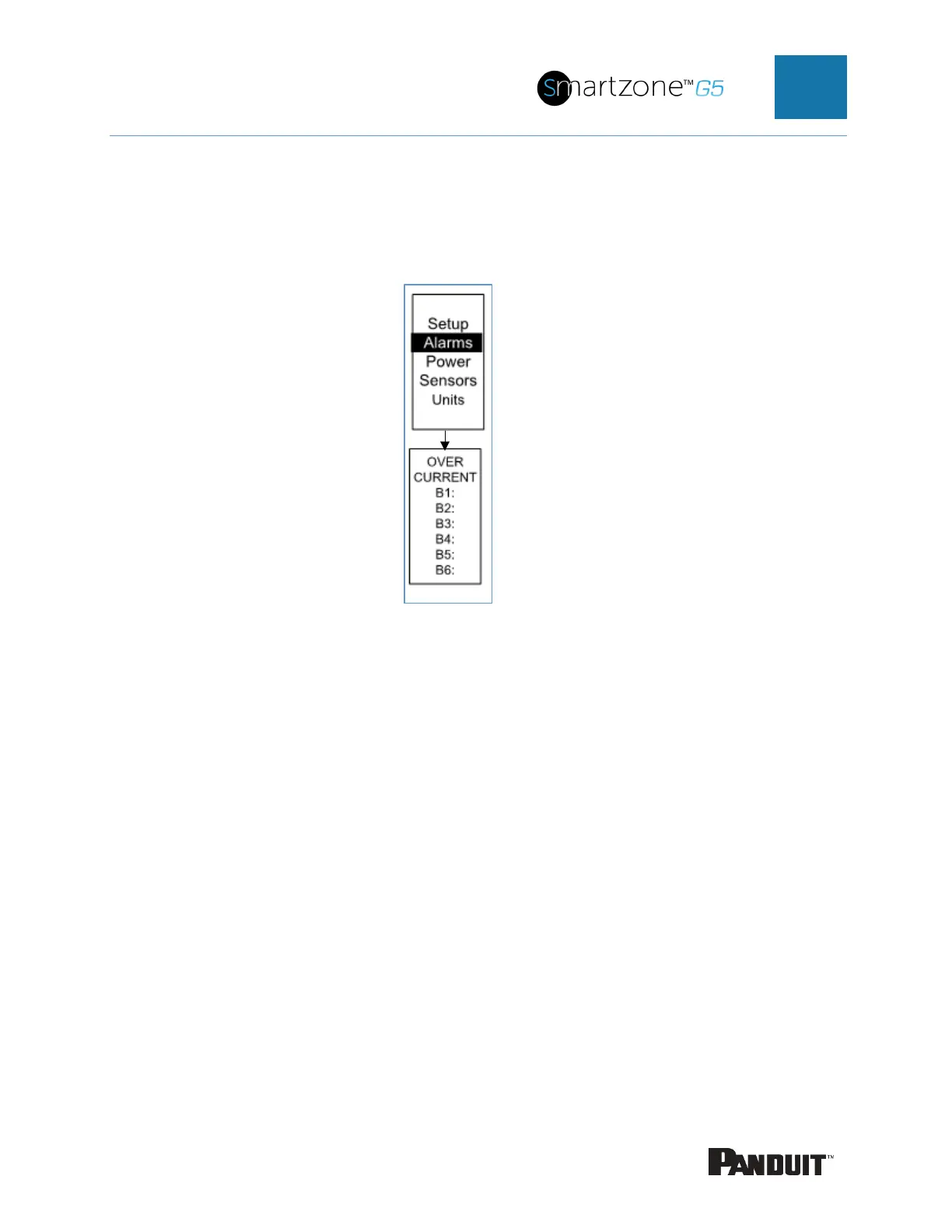

Figure 62: Alarms Menu

Table of Contents2
Section 1 - System Overview9
PDU Controller9
Connecting the PDU Via Ethernet Port9
Figure 1: Ethernet Port for Network Connection9
Connecting the PDU to a Computer Serial Port10
Figure 2: Status LED & Serial in Port Identified10
Section 2 - Web Graphical User Interface (GUI) Configuration11
Internet Protocol (IP) Addressing11
Connecting to the PDU11
Web Configuration11
Figure 3: Changing Your Password12
Figure 4: after Login12
Figure 5: Change User Password13
Figure 6: Change Password13
Introduction to the Web GUI15
Figure 7: Login Page15
Figure 8: Landing Page/Dashboard15
Screen Resize Due to Multiple PDU Configuration17
Figure 9 - Resized Dashboard Screen17
Menu Dropdowns18
Introduction to the Dashboard18
Figure 10: Power Summary Page18
Network Settings19
Figure 11: Outlet Monitoring Page19
Figure 12: Environmental Monitoring Page19
Figure 13: Security Monitoring Page19
System Management Information21
Figure 14: System Management21
Figure 15: System Management Configuration22
Figure 16: Rack Location Configuration23
Setting Time and Date on the PDU24
Figure 17: Power Panel & Core Location24
Figure 18: NTP Configuration25
Figure 19: Daylight Saving Time Configuration26
Outlet Power Management27
Outlet Power Sequence Setup28
Figure 20: Control & Manage PDU28
Figure 21: Outlet Control Enabled29
Figure 22: Edit Outlets29
Setting Metering Thresholds30
Figure 23: One-Delay Time30
Figure 24: Saved Sequence30
Figure 25: Power Threshold31
Figure 26: Energy Threshold33
Figure 27: Phase Current Alarm34
Figure 28: Phase Voltage Alarm36
Figure 29: Load Segment Breaker38
Figure 30: Device Detection Threshold Information40
Figure 31: Outlet Information41
Email Setup42
Figure 32: Email Setup43
Figure 33: SMTP Account Settings44
Figure 34: Email Recipients45
Data Log46
Figure 35: Data Log46
Web Interface Access47
Figure 36: Data Log Configuration47
Setting up the System for RADIUS Authentication49
Figure 37: User Settings49
Configuring the System with LDAP Server Settings50
Figure 38: RADIUS Configuration50
Figure 39: LDAP Configuration52
Figure 40: Enable Role Privileges53
Figure 41: Test LDAP Configuration54
Section 3 - Simple Network Management Protocol (SNMP)55
SNMP Management Configuration55
Figure 42: SNMP Management55
Figure 43: SNMP General56
Configuring Users for SNMP V1/V2C57
Figure 44: SNMP Port57
Figure 45: Setup SNMP Port and Trap Port57
Figure 46: Define SNMP V1/V2C User58
Figure 47: Edit V1/2C Manager58
Configuring Users for SNMP V359
Figure 48: SNMP V3 Manager59
Figure 49: SNMP V3 Edit60
Configuring SNMP Traps61
Figure 50: Snmpv2 Configuration Information61
Figure 51: Snmpv3 Trap Server Information62
Section 4 - Local Display64
Onboard Display and Network Controller64
Figure 52: Network Controller64
Control Buttons65
Network Controller Menu Structure66
Main Menu Selections66
Figure 53: Network Controller Menu Structure66
Setup Menu67
Figure 54: Main Menu Selections67
Figure 55: Setup Menu67
Figure 56: Network Submenu68
Figure 57: Device Submenu69
Figure 58: Screen Submenu70
Figure 59: Language Submenu71
Figure 60: USB Submenu72
Figure 61: Units Submenu73
Figure 62: Alarms Menu74
Figure 63: Power Menu75
Figure 64: Device Submenu76
Figure 65: Phase Submenu77
Figure 66: Breaker Submenu78
Figure 67: Outlet Submenu79
Sensors Menu80
Figure 68: Sensors80
Section 5 - Daisy Chain Configuration81
Daisy-Chain Overview81
Daisy-Chain Setup81
RNA (Redundant Network Access) Functionality81
RNA Setup82
Figure 69: Connection Diagram RNA Daisy Chain82
Power Share84
Figure 70: Connection Diagram Power Share & Daisy Chain85
Section 6 - Smartzone Security Handle87
Figure 71: Smartzone Security Handles87
Figure 72: Connection Diagram for Smartzone Security Handle88
Configuring Cabinet Access Control89
Figure 73: Rack Access Control Web GUI90
Figure 74: Rack Access Control Actions Web GUI90
Adding a User for Local Rack Access91
Configuring Rack Access Settings92
Figure 75: Local Rack Access Web GUI92
Configuring Handle Settings93
Figure 76: Rack Access Settings Web GUI93
Configuring Keypad Settings94
Figure 77: Handle Settings Web GUI94
Remote Controlling the Handle95
Figure 78: Remote Control96
Controlling the Beacon97
Figure 79: Beacon97
Figure 80: Beacon Settings Web GUI98
The Status LED99
Setting Status LED State100
Handle and Compatible Card Types100
Figure 81: Status LED Settings Web GUI100
Section 7 - Smartzone G5 Accessories101
Hardware Overview101
Figure 82: Sensor Ports for Vertical PDU102
Configuring Temperature Scale103
Configuring Environmental Sensors103
Figure 83: Sensor Ports for Horizontal PDU103
Figure 84: User Settings103
Figure 85:Celcius Setting103
Figure 86: Fahrenheit Setting103
Warranty and Regulatory Information105
Warranty Information105
Regulatory Information105
Panduit Support and Other Resources106
Accessing Panduit Support106
Acronyms and Abbreviations107
Appendix A: Sensor Configuration108
Door Switch Sensor108
Dry Contact Input Sensor (Side Panel Switch)108
Temperature & Humidity Sensors109
Figure 88: Door Switch Sensor Configuration109
Configuring Environmental Sensors110
Figure 89: Dry Contact Cable110
Figure 90: Temperature and Humidity Sensors111
Appendix B: Firmware Upgrade Options112
Web Interface Method112
G5 Upgrade Utility (GUT)112
Figure 91: Sensor Ports on Controller112
USB Method113
Ftps Method113
Figure 92: Upload Firmware113
Appendix C: Bulk Management of Pdus115
G5 Upgrade Tool (GUT)115
Figure 93: G5 Upgrade Tool Interface116
Figure 94: System Management Screen Webgui117
Figure 95: G5 Upgrade Tool Interface117
Appendix D: System Reset or Password Recovery118
Figure 96: Example CSV File118
Figure 97: G5 Upgrade Tool Interface118
Appendix E: PDU Alarms119
Trap Codes Assigned to Alarms List121
Appendix F: Panduit Network Controller Replace or Rotate 180127
Figure 98: Screws on Network Controller128
Appendix G: Direct Connect to the PDU by Changing Your Pc's IP Address129
Figure 99: Ribbon Cable for the Network Controller129
Figure 100: Control Panel130
Figure 101: Network Status and Tasks131
Figure 102: Change Adapter Settings132
Figure 103: Properties132
Figure 104: Ethernet Properties133
Figure 105: Internet Protocol Version 4134
Appendix H: Command Line Interface (CLI)135
Figure 106: IP Settings for Direct Connection135
Figure 107: Connect MA017 to the PDU In/Serial Port137
CLI Commands138
Figure 108: Serial Cable Pinout138
Network Commands140
User Commands142
Device Commands142
Appendix I: RADIUS Server Configuration147
Appendix J: Panduit G5 Accessories149
Appendix K: Compliance Model Number Details150
Appendix L: JSON API Web Service151
