INTELLIGENT PDU USER MANUAL

The iPDU controller has a maximum output power capacity of 800mA @ 5V = 4 watts.

Based on this, DO NOT deploy the Automatic Light Bar (PN: ACD01) when deploying

solutions leveraging Power Share.

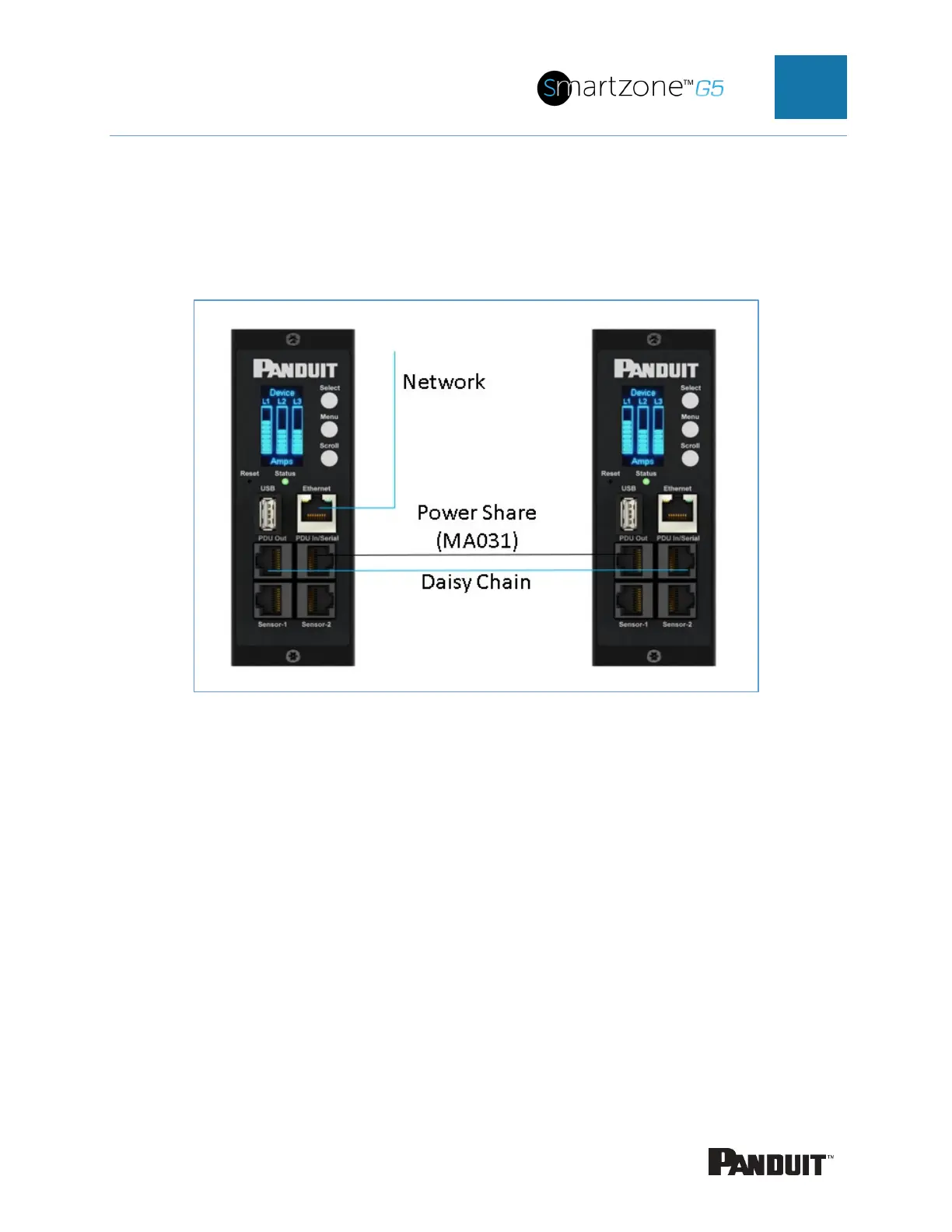

Figure 70: Connection Diagram Power Share & Daisy Chain

To confirm that your controller has Power Share from the WebGUI

Home → Control & Manage → Power Share
