SMARTZONE UPS USER MANUAL
137
Connecting to the CLI through the serial interface
An option to communicating through the serial interface is to use the specialized YOST
Serial Data Cable Panduit Part Number: MA017. This cable Remaps Panduit G5 Serial
Interface to a YOST interface.

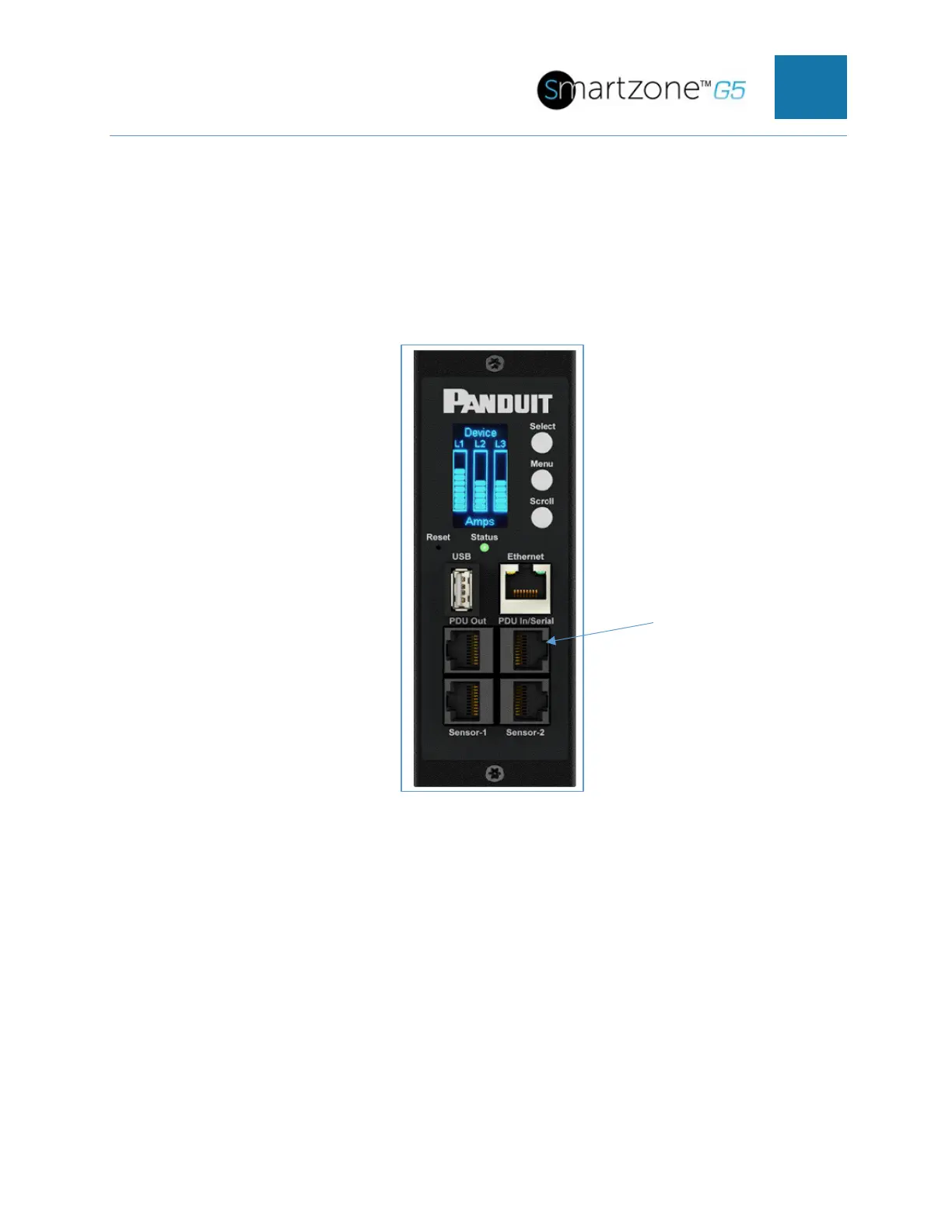

Figure 106: Connect MA017 to the PDU In/Serial port
To connect the PDU to a computer (via Serial Interface):
Using a MA017 YOST Remap cable and a Cisco Compatible Console Cable (USB to
RJ45) insert the USB End to an available port of the computer.
Logging in with HyperTerminal
To login through HyperTerminal, set the COM settings to the following parameters:
• Bits per second: 115200
PDU In/Serial for CLI
