30 Reference & Installation Manual

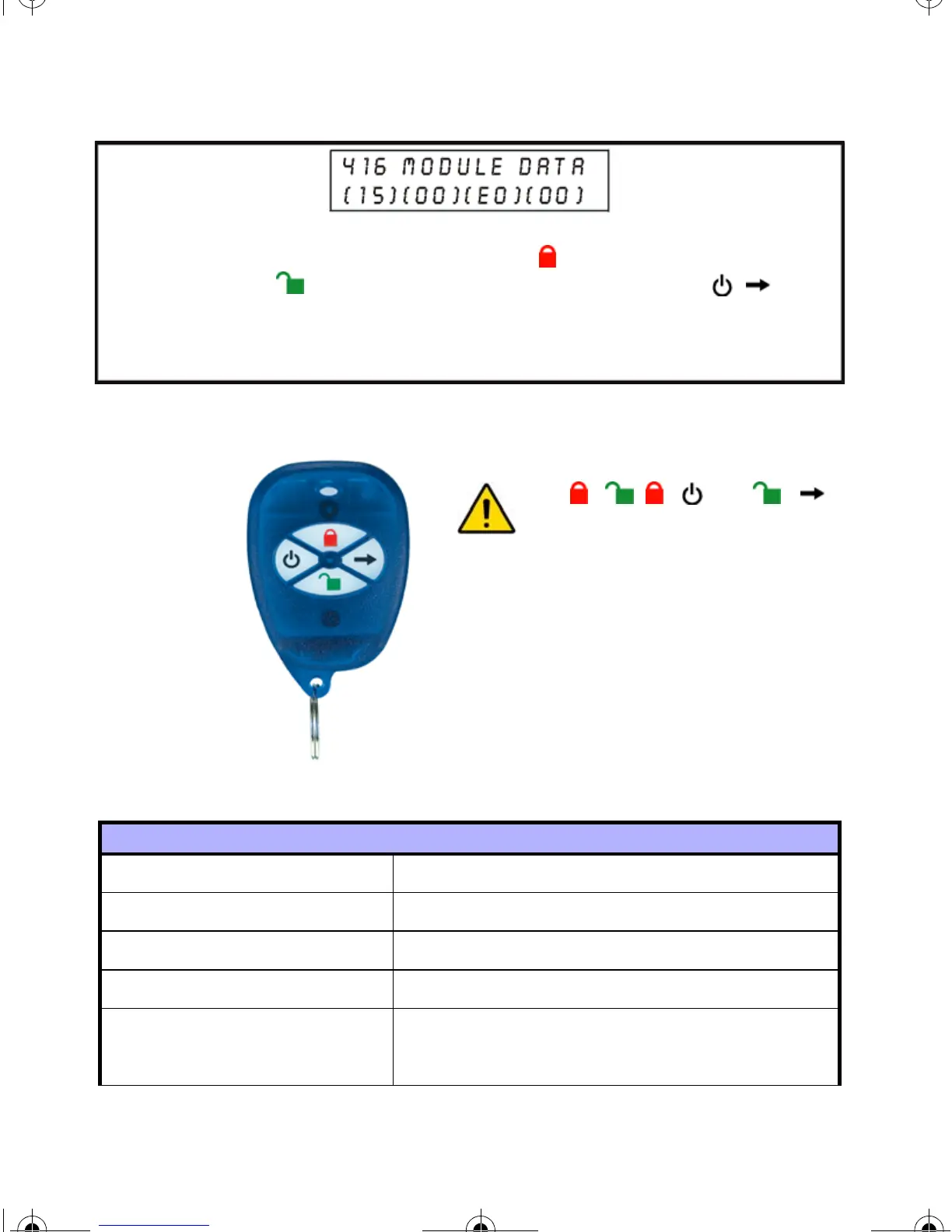

Figure 8.1: Remote Control Button Programming Example
Figure 8.2: Remote Control Button Identification
Table 8.4: Remote Control Button Options
Spectra
[FORCE] = Button Disabled [7] = Regular Arm and Disarm
[1] = Regular Arm [8] = Panic 1† (Police)
[2] =Stay Arm [9] = Panic 2† (Non-Medical)
[3] = Instant Arm [A] = Panic 3† (Fire)
[4] =Force Arm
(not allowed in UL
listed installations)
[B] = Activates any PGMs that have Event
Group #07 as their Activation Event*
In this example, the MG-RCV3 is connected to a DGP-NE96 control panel
and the user is utilizing an LCD keypad. The button is programmed to
Regular Arm, the button is programmed to Disarm, and the
button
combination is programmed to activate the PGM(s) according to the
appropriate PGM Table (Utility Key 4). See Table 8.4 on page 30. The last
three digits are not available with the MG-REM1 and cannot be programmed.
+
MG-REM1
The , and
button combinations do not
function with the MG-REM1
remote control and therefore
cannot be programmed.
+ +
+
