Parker AC10 series Quick Start Guide

IP20 Metal Enclosure - Frame 6-11

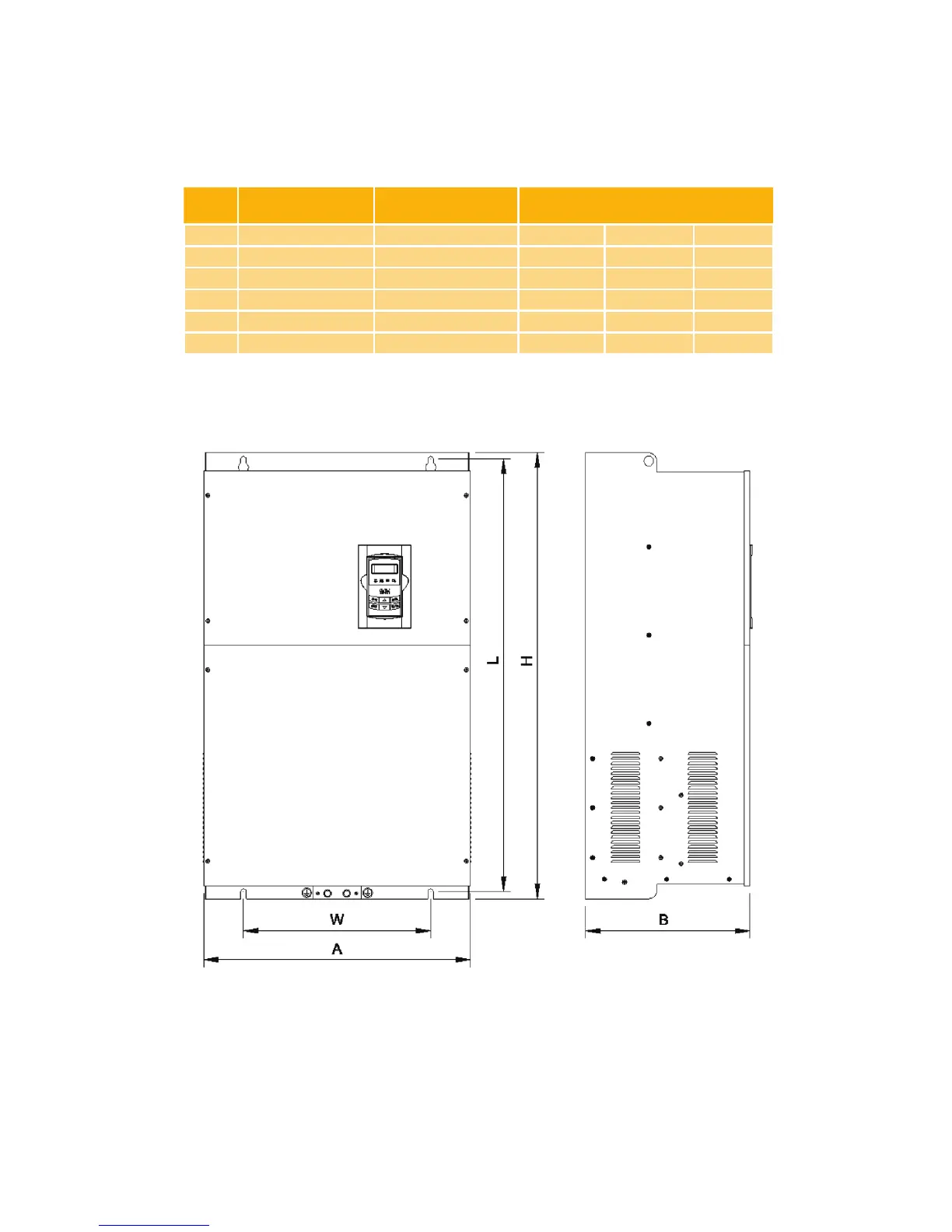

Dimensions
Note: H is the size of inverter without grounding plate. H1 is the size of inverter with grounding plate.
Dimensions 2-6
IP20
Frame
Part Number
External Dimension
AxBxH (H1) [mm]
Weight [lb/
kg]
Mounting
Size (WxL)
Mounting
Bolt
6 10G-46-XXXX-XX 265 x 235 x 435 37.48/17 235x412 M6
7 10G-47-XXXX-XX 315 x 234 x 480 55.12/25 274x465 M6
8 10G-48-XXXX-XX 360 x 265 x 555 88.19/40 320x530 M8
9 10G-49-XXXX-XX 410 x 300 x 630 121.25/55 370x600 M10
10 10G-410-XXXX-XX 516 x 326 x 765 207.24/94 360x740 M10
11 10G-411-XXXX-XX 560 x 342 x 910 264.56/120 390x882 M10

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
