Parker AC10 series Quick Start Guide

Menu Organization - IP66 Units 3-6
Parameters Setting
This inverter has numerous function parameters that the user can modify to effect different modes of
operation. The user should be aware that if they set password valid (F107=1), the password must be
entered rst if parameters are to be set after power off or protection is effected, i.e., to call F100 as
per the mode in Table 6-2 and enter the correct code. User’s password is invalid before delivery, and
user could set corresponding parameters without entering password.

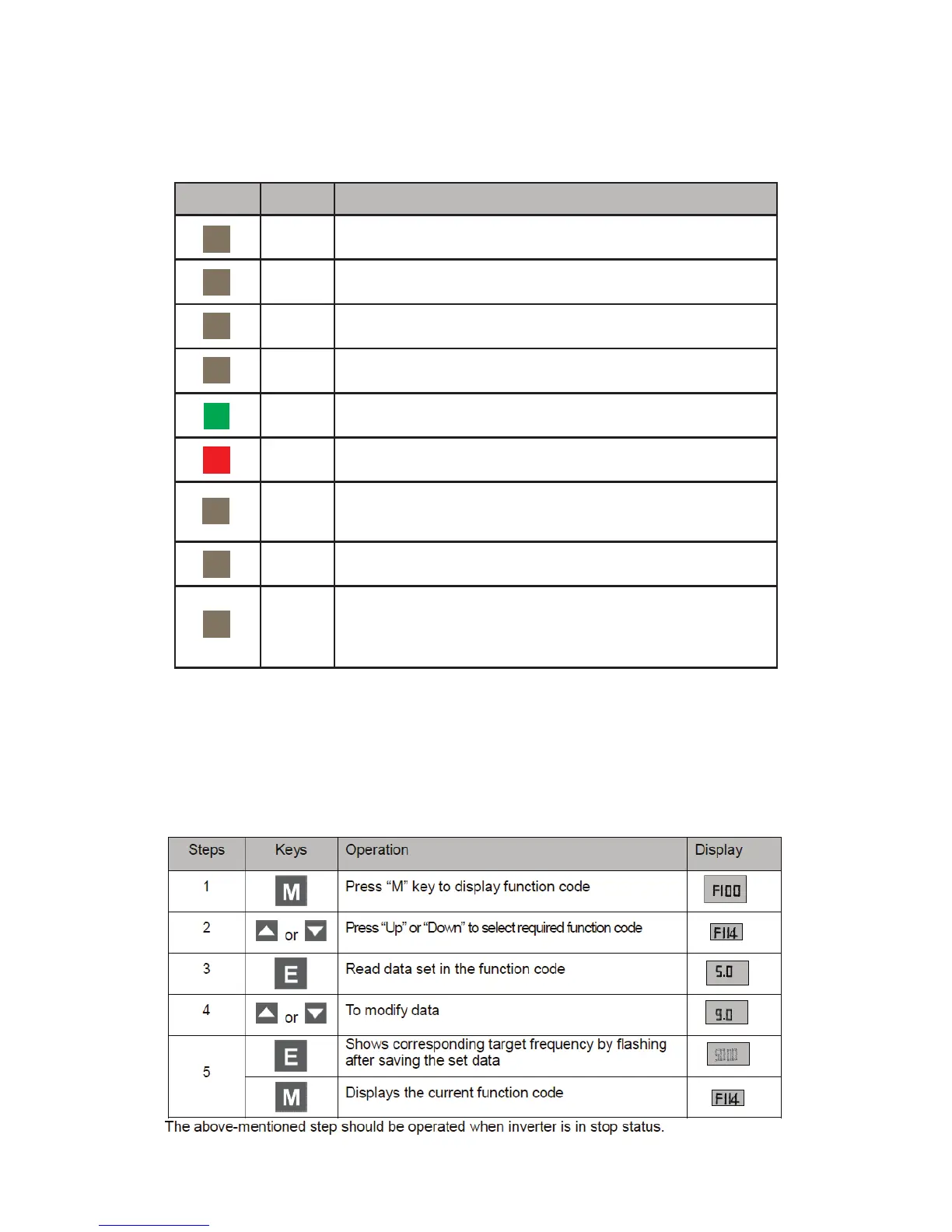

Keys Names Remarks
Menu To call function code and switch over display
sEt To call and save data
Up To increase speed (speed control or setting parameters)
Down To decrease speed (speed control or setting parameters)
Run To start inverter
Stop or
reset
To stop inverter, to reset in fault status
Forward
or
reverse
Switchover between forward and reverse
Shift key Shift and displaying items switchover
Multi
func-
tional
key
FWD/REV, jogging, and local/remote can be selected by multi-
functional key. Please refer to F643
M
E
∆
∆
I
O
<<
*
FWD
------
REV

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
