Accessories and Options 9-2
Remote Mounting Keypad
The remote mounting keypad allows users
to mount the keypad remote from the AC10
drive, such as on the door of an electrical
enclosure. The remote keypad provides the same
functionality as the drive mounted keypad and is
connected to the drive via a 1.5 meter cable that
is provided with the option.

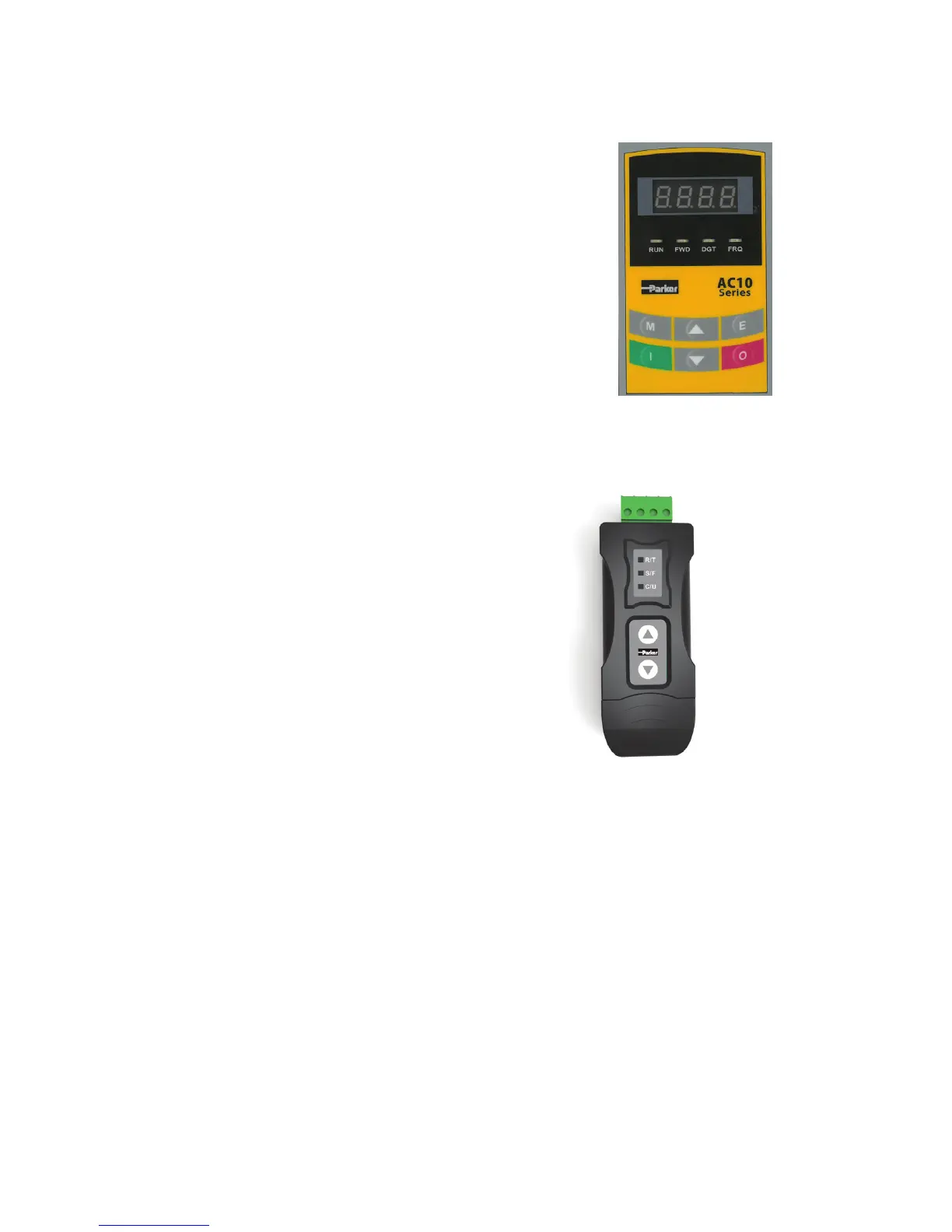

Remote Mounting Keypad
Part Number: 1001-00-00
Cloning Module
AC10 drives may be cloned
using the Parker cloning
module that plugs into the side
of the drive. This module allows
users to copy applications
between AC10 drives and
upload and download
parameter sets between drive
and PDB or DSE Lite software.
Cloning Module
Part Number: 1002-00-00
Toggle switch --------
-------- Copy
-------- Load
------- Indicators

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
