Parker AC10 series

3-7 Menu Organization - IP66 Units
As parameter setting can take time due to numerous function codes, such function is specially
designed as “Function Code Switchover in a Code Group or between Two Code-Groups” so
that parameters setting becomes convenient and simple.
Press “M” key so that the keypad controller will display function code. If user presses “▲” or “▼”
key, the function code will circularly keep increasing or decreasing by degrees within the group; if
user presses the key again, the function code will change circularly between two code
groups when operating the “▲” or “▼” key.

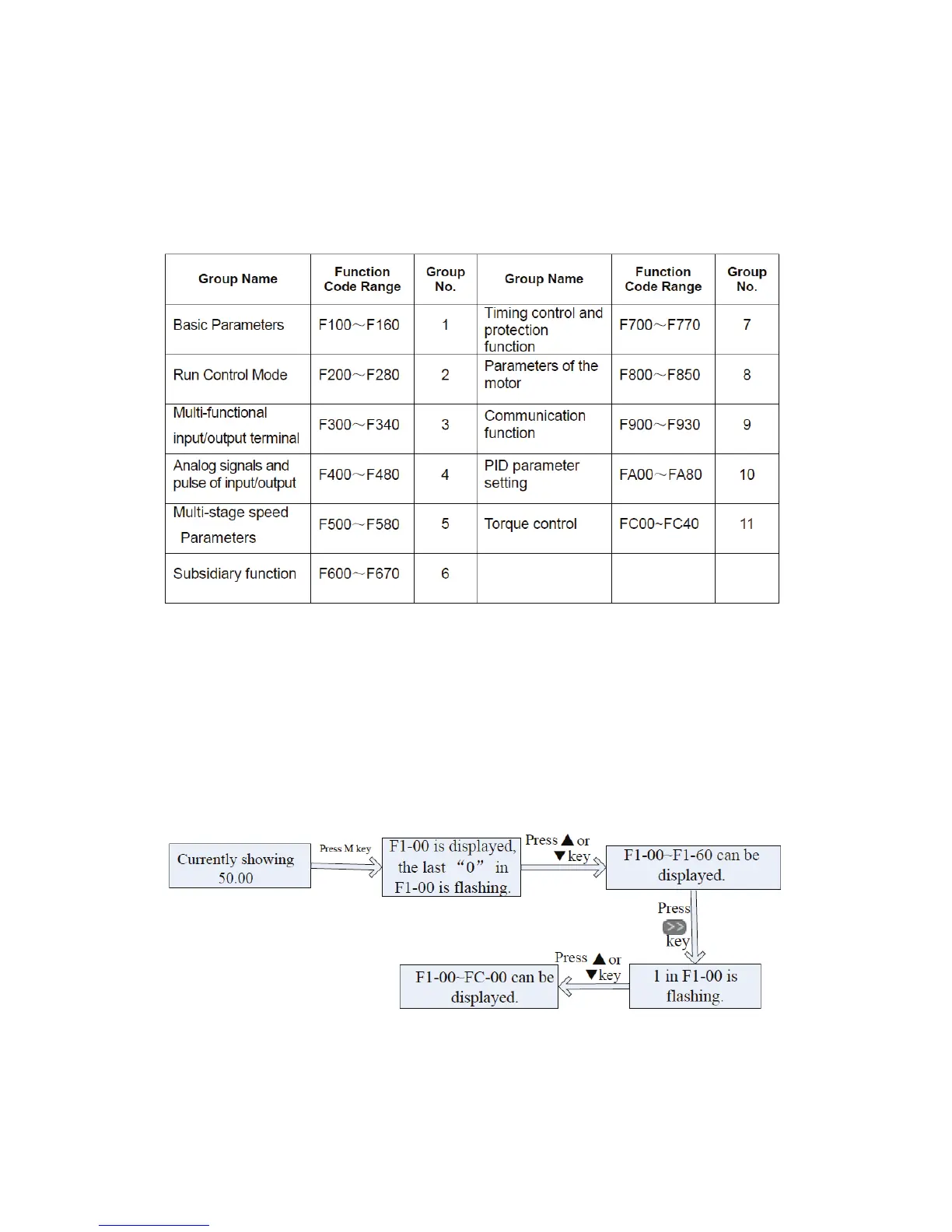

The AC10 has more than 300 parameters (function codes) available to user, divided into
sections as indicated in Function Code Partition table below:
Function Codes Switchover in/between Code-Groups (IP66 Models)
