Parker AC10 series Quick Start Guide

Product Overview 2-2
Typical IP20 AC10 Model

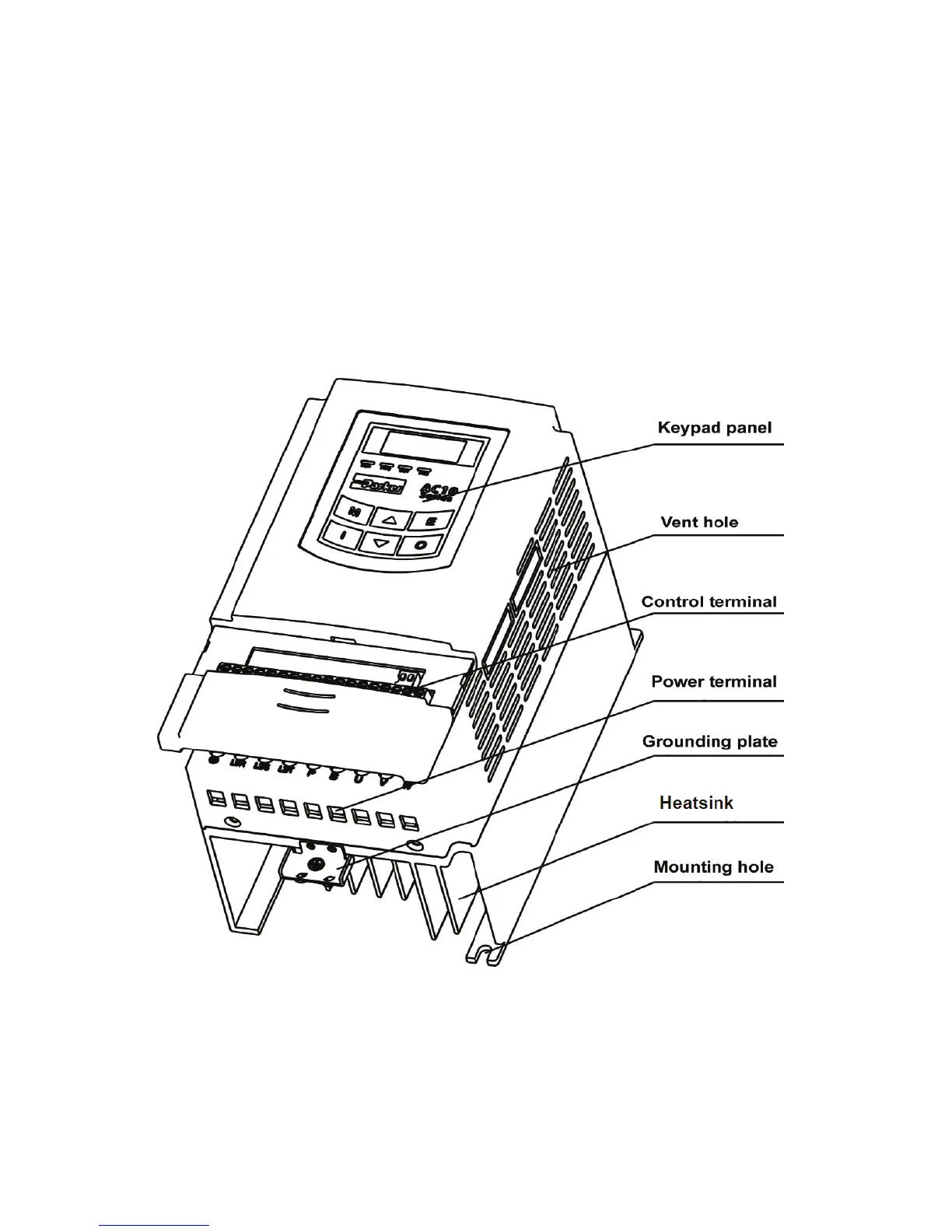

This basic diagram shows the location of main drive components that will be referred to
in this manual. The diagram is representative of the product, but some sizes may appear
different than the illustration.
Basic Drive Layout

Parker AC10 series Specifications

General

Overload Capacity	150% for 60 seconds
Analog Inputs	2
Analog Outputs	1
Communication Options	Modbus RTU
Protection Rating	IP20
Input Voltage	200-240VAC, 380-480VAC, 500-575VAC, 600VAC, 690VAC
Digital Outputs	2
Protection	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Braking	Built-in dynamic braking
