3-3 Menu - IP20 Units
Function Codes Switchover in/between Code-Groups (IP20 Models)
The AC10 has more than 300 parameters (function codes) available to the user, divided into

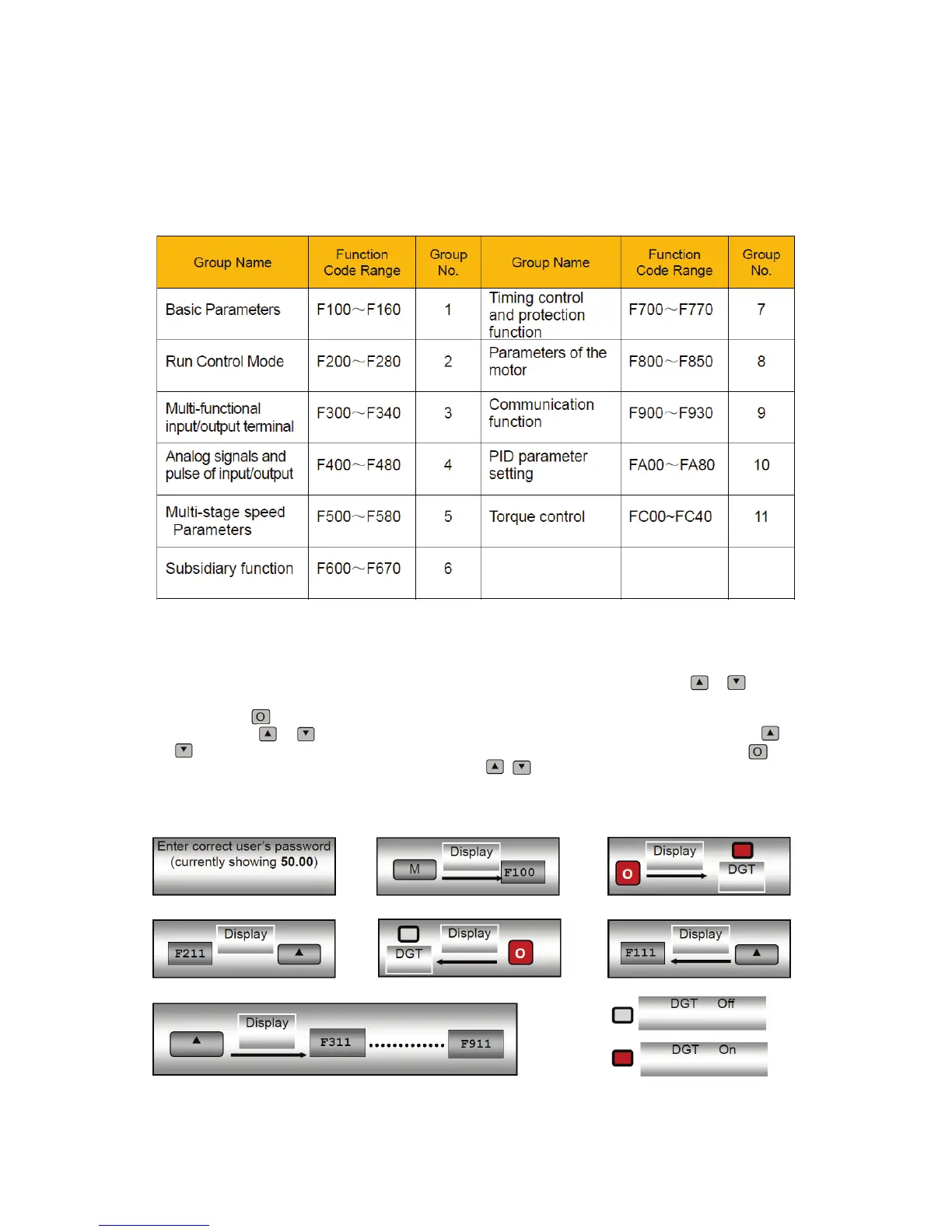

sections as indicated in the Function Code Partition table below
As parameter setting can take time due to numerous function codes, such function is specially
designed as “Function Code Switchover in a Code Group or between Two Code-Groups” so that
parameters setting becomes convenient and simple.
Press “M” key so that the keypad controller will display function code. If user presses “▲” or “▲” key,
the function code will circularly keep increasing or decreasing by degrees within the group; if user
presses the “O” key again, the function code will change circularly between two code groups when
operating the “▲” or “▲” key, e.g. when function code shows F111 and DGT indicator is on, press “▲”/
“▲” key, function code will keep increasing or decreasing by degrees within F100 - F160; press “O”
key again, DGT indicator will be off. When pressing “▲”/ “▲” key, function codes will change circularly
among the 10 code-groups, like F211, F311…FA11, F111…, Refer to illustration below (The flashing
“50.00" is indicated the corresponding target frequency values).
Switch over in a Code Group or between Different Code-Groups
To Next Page
