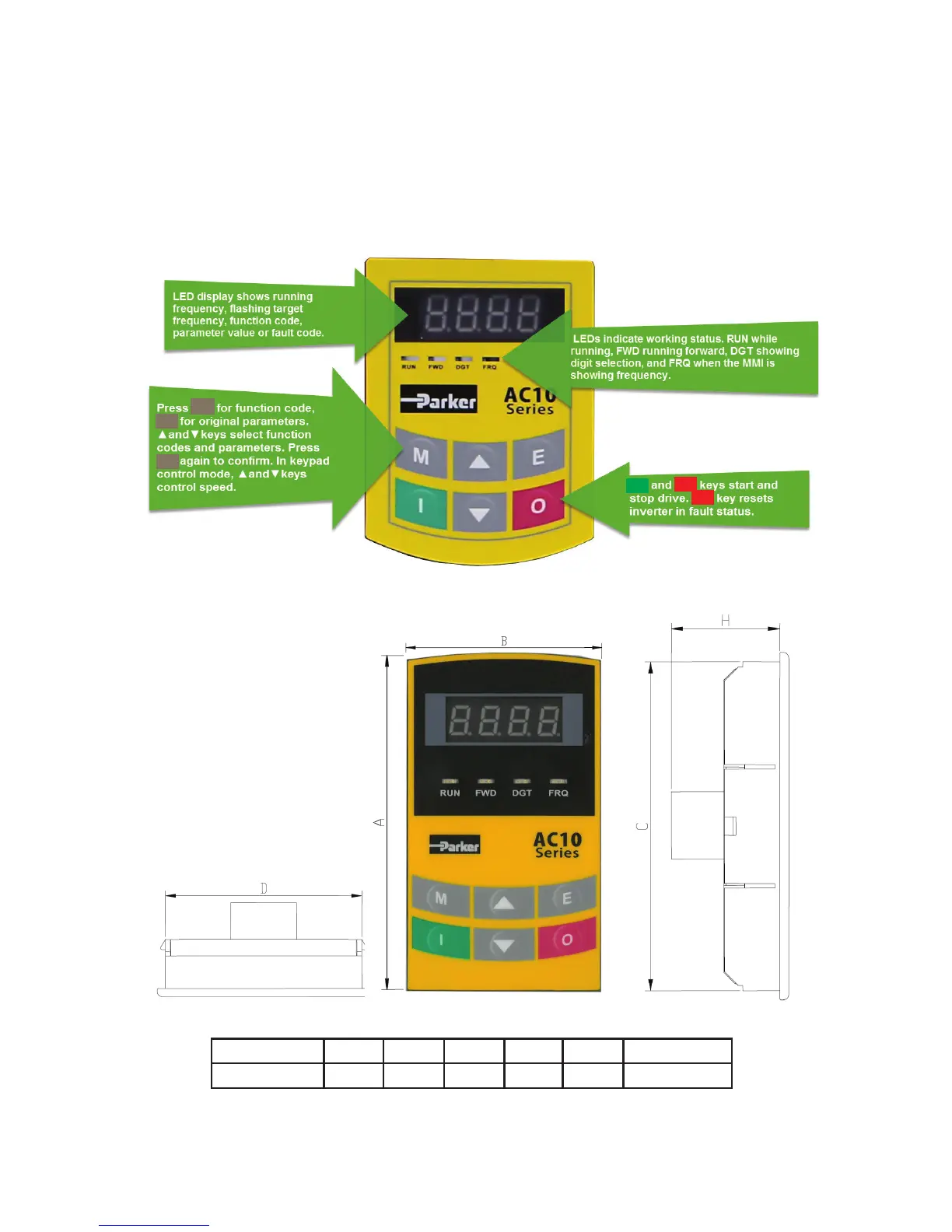

3-1 The Keypad - IP20 Units
The panel covers three sections: data display section, status indicating section
and keypad operating section.
The remote mounted keypad
can be ordered as 1001-00-
00. This includes the keypad,
cable and mounting brackets.
Part Number A B C D H Opening
1001-00-00 124mm 74mm 120mm 70mm 26mm 121mm x71mm
Remote Keypad (Option)
Local Keypad (IP20 Units)
