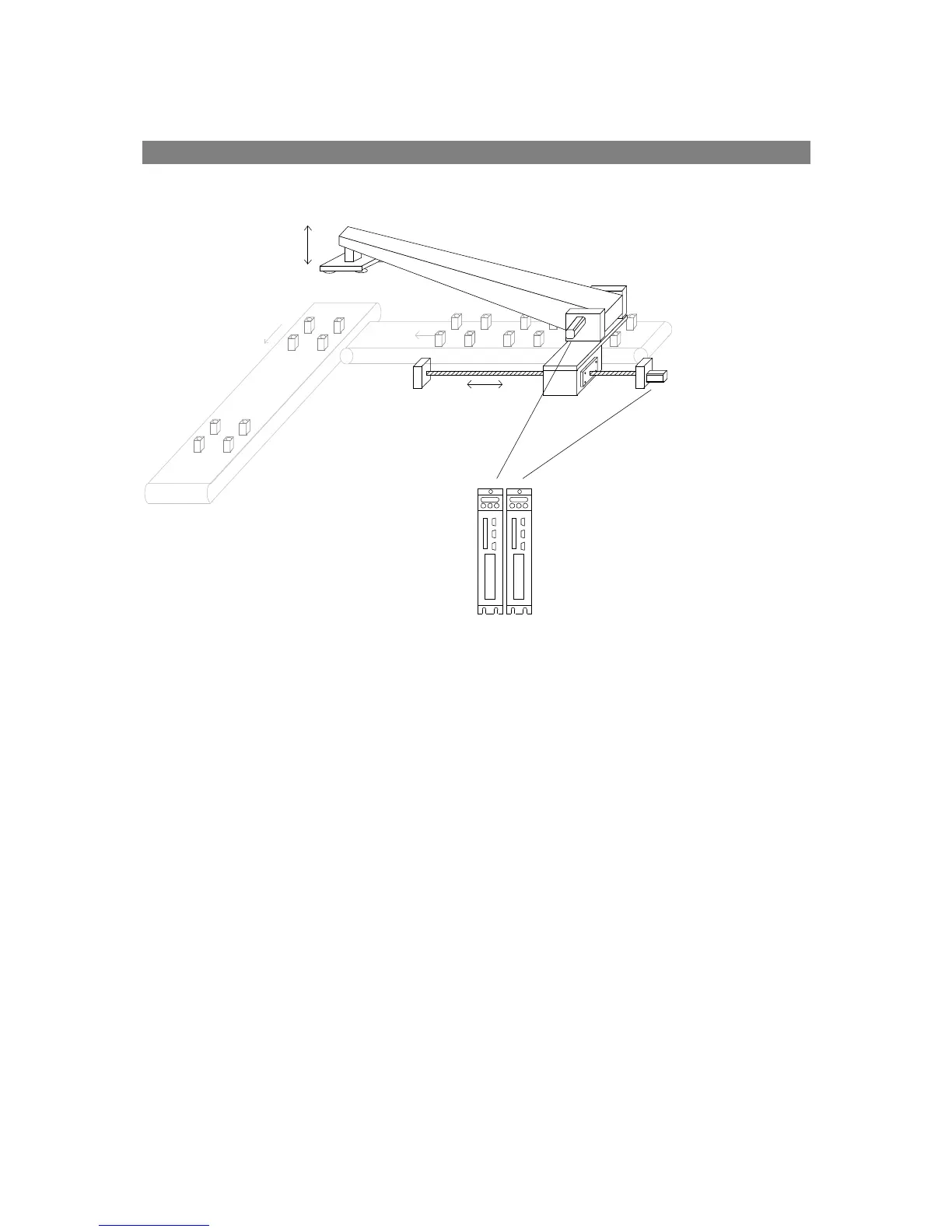

21.4. Two-axis extractor
Teaching axe
Extraction axe
SBC Drive + EC4 expansione board
Teaching axe motor
Extraction axe motor
 Positioning value control on external incremental encoder, SSI encoder, or resolver
 Management of the control signals for the unloading line
 Management of the control signals for the extractor device
 Programmable feed and unload times
 Ability to program n formats
 For each process, you can program:
o feed and unload levels
o rapid approach values for extraction
o Speed and acceleration of loaded extractor
o Speed and acceleration of empty extractor
 Jog back and forward
 Ability to connect a display to program the system directly
