22. Appendix M: external bracking modul
TECHNICAL CHARACTERISTICS
resistenza
+
-
24V dc Ventilatore

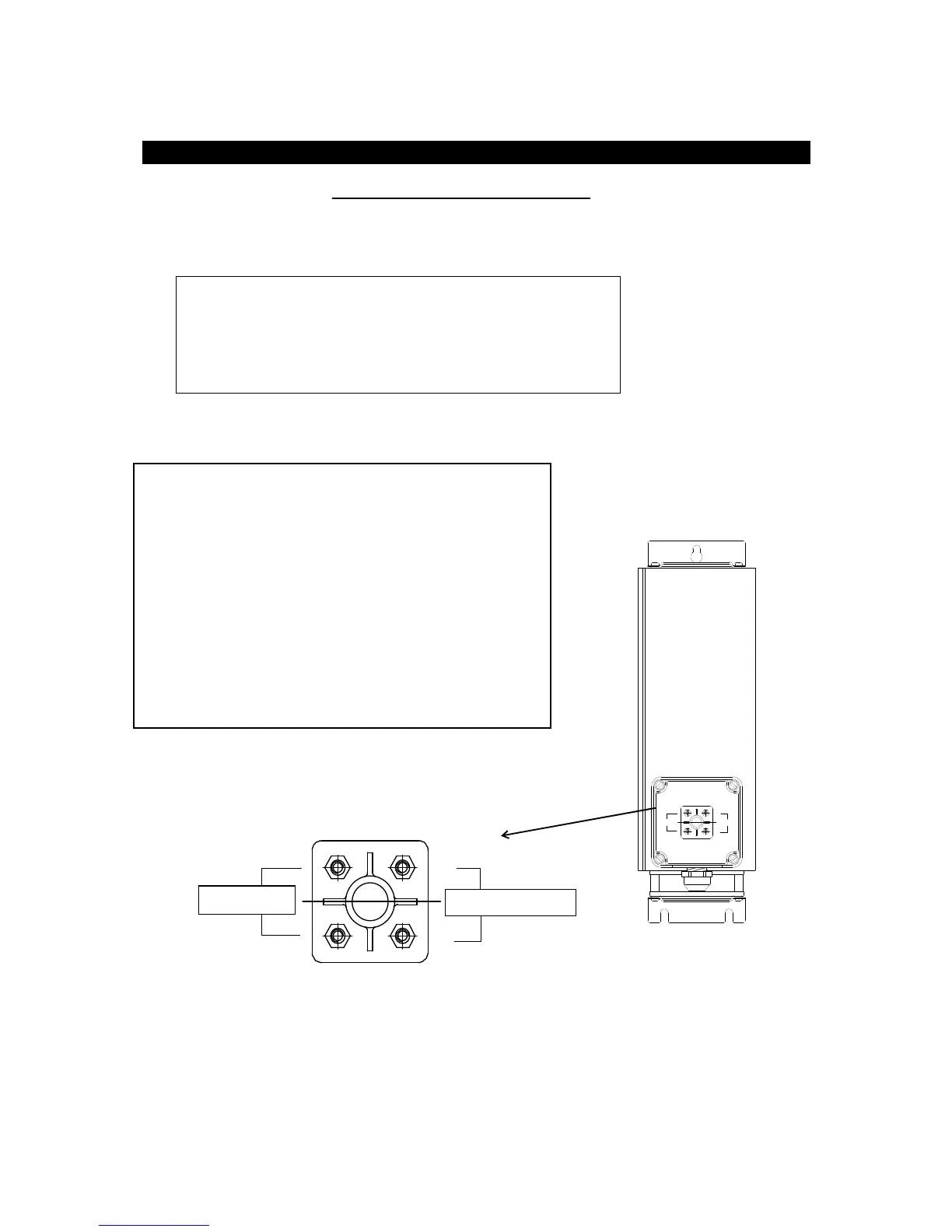

MORSETTIERA MODULO DI FRENATURA
RFE / 1
resistenza
+
-
24V dc Vent.
Resistance value: RFE1 = 40 ohm, RFE2 = 27 ohm
IP protection 20
Max power dissipated 1000 W
Max ambient temperature 45° C
Delta T 90° C
Weight 2,5 Kg
Ventilation power supply 24 V=
Terminal pins REF1
resistance
24Vdc ventilation
INSTALLATION
The RFE1 or 2 breaking module must be installe
d
vertically as shown. A four-pole 4mm
2
cable must be
used for the connection.
The 24v power supply used for the ventilator can cause
disturbances. It is therefore a good idea not to use the
same power line for electronic devices. The cable
should not be longer than 4m. For the connection to the
drive, see the related chapter in the converter manual
and use a 30A thermo-magnetic switch.
