Parker Hannifin S.p.A. - S.B.C. Division HPD N User’s Manual
19
Earth connections
To reduce the length of individual conductors that must be connected to earth we
recommend using an earth busbar located as near as possible to the drive.
The busbar must be made of copper to ensure low inductance. It must also be mounted on
insulated fixings. The adjacent table shows minimum dimensions according to length.

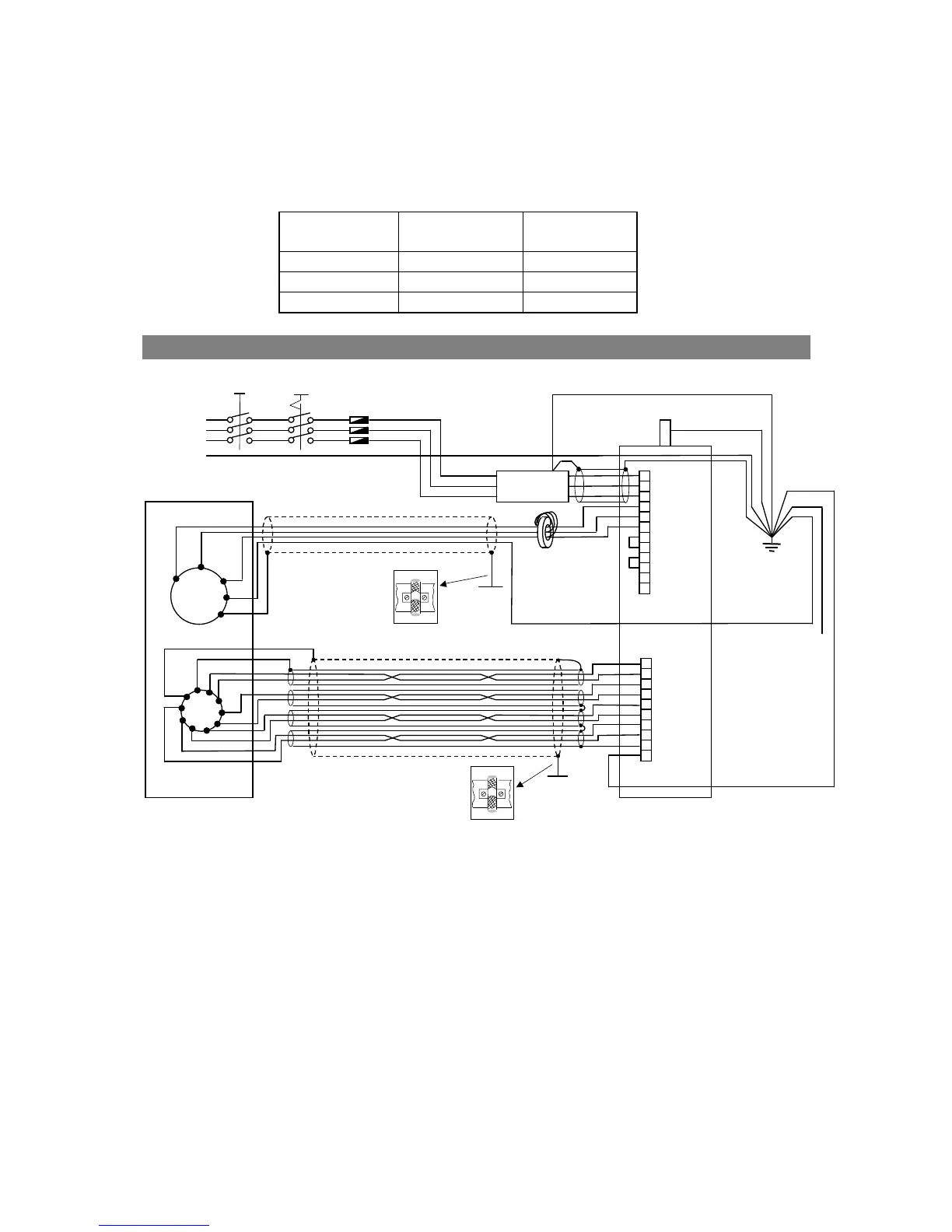

3.8. Power connection layout
A
B
C
D
1
EMC filter
X4
FERRITE CORE
TOROIDAL
COIL
MAIN
S
MOTOR
EARTH STUD
SCREW
A
B
C
D
E
F
RESOLVER
X1
E
J
K
G
H
*
*
FERRITE COIL, MOTOR FILTER OR NOT PROTECTION
ACCORDING TO CHOSEN CONFIGURATION
SERVOMOTOR "MB"
DRIVE "HPD"
M
2
3
4
5
6
7
8
9
10
11
12
L1
L2
L3
PE
10
9
1
2
3
4
5
6
7
8
A
B
C
A
B
C
D
E
F
J
K
Connection 360°
Connection 360°
ATTENTION: respect suitable connections meticulously (with particular attention to the
shield) for a correct operation system.
N.B. the protection of the resolver cable in general must be all connected to the clamp 9 of
X1. Side motor,the protection of the connected duplex cable to [j-k] must be connected to
H, the general protection to G. the other protections must not be connected.
Length (m) width (mm) thickness
(mm)
0.5 20 6
1 40 6
1.5 50 6
