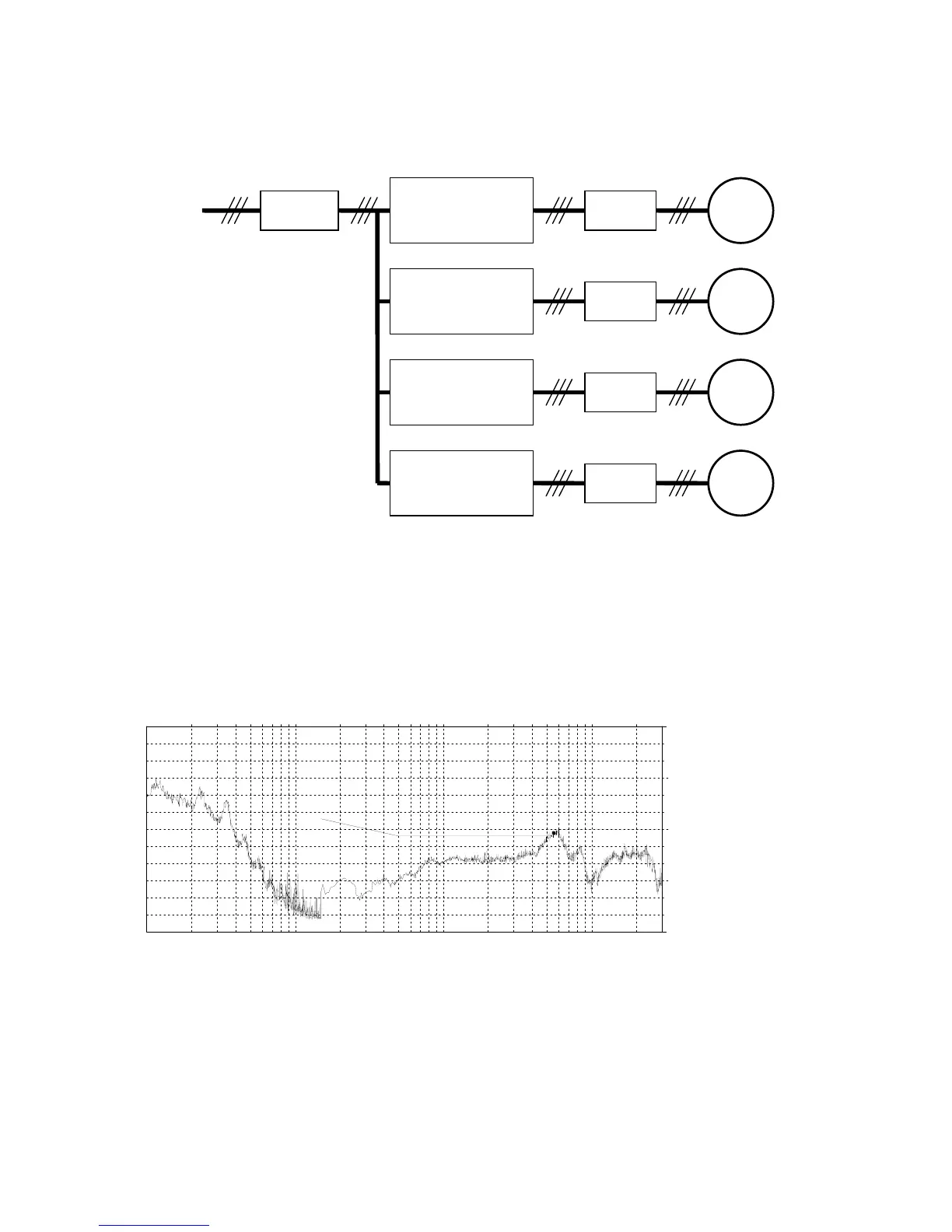

Configuration 2 Class B
mains filter
SBC3RDXX
drivesi
SBC3MYY
MAINS
M
motor filter
SBC3MYY
M
SBC3MYY
M
SBC3MYY
M
H P D
H P D
H P D
H P D
Where HPD rating is between 2 and 16 A
The sum of drive rated current values must not exceed the XX mains filter rated current
YY can be 10 or 20 and represents the motor filter rated current;
drive rated current must not exceed that of the filter
.01 .1 1 10 30
120
90
60
30
0
dBuVMHz
Limit: C22_B_QP Title: DEFINI12 Date: 06-25-1995
PMM 8010
