Parker Hannifin S.p.A. - S.B.C. Division HPD N User’s Manual
39
Fig.2

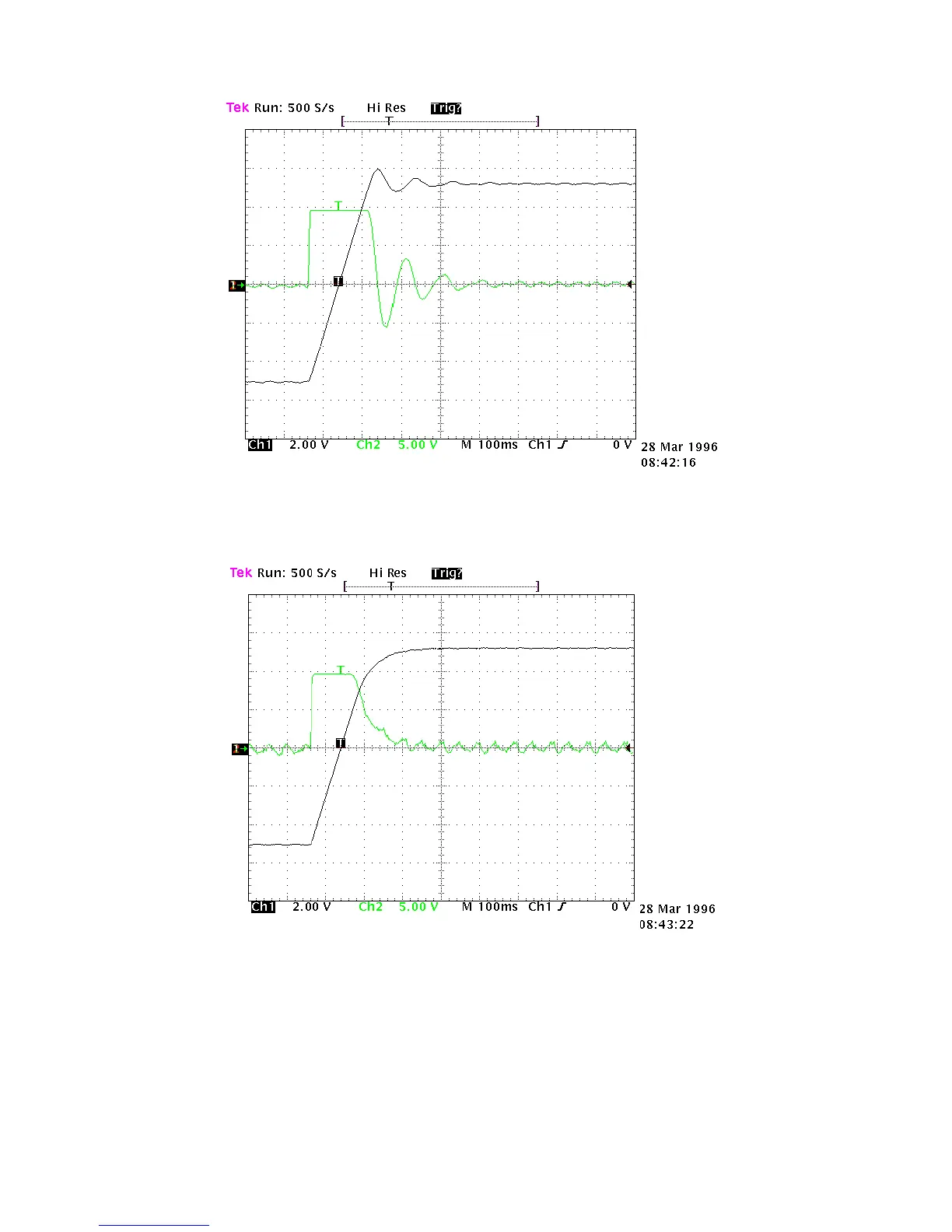

For higher values of Pr17 system response will resemble the situation of figure 3 below.
Fig.3
The optimal value of Pr17 can be considered when system response is as shown in figure 4.
