Parker HPD2N

Parker Hannifin S.p.A. - S.B.C. Division HPD N User’s Manual
41

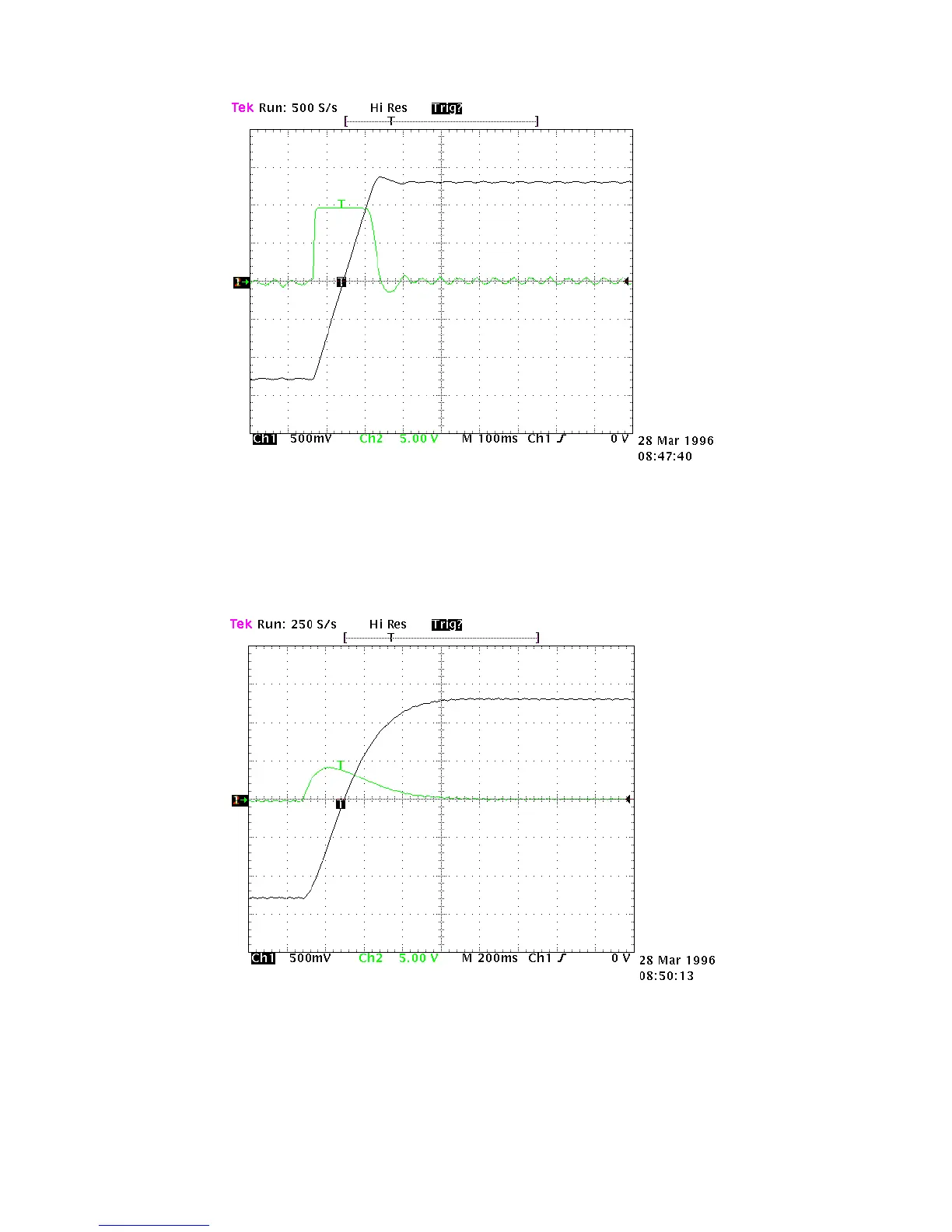

Fig.6
If the driven mechanical system is prone to oscillation, we recommend using very low
values for Pr16; in this configuration the HPD drive will smooth out motor torque requests to
prevent the creation of mechanical oscillation. Figure 7 shows this type of configuration.
Fig.7
