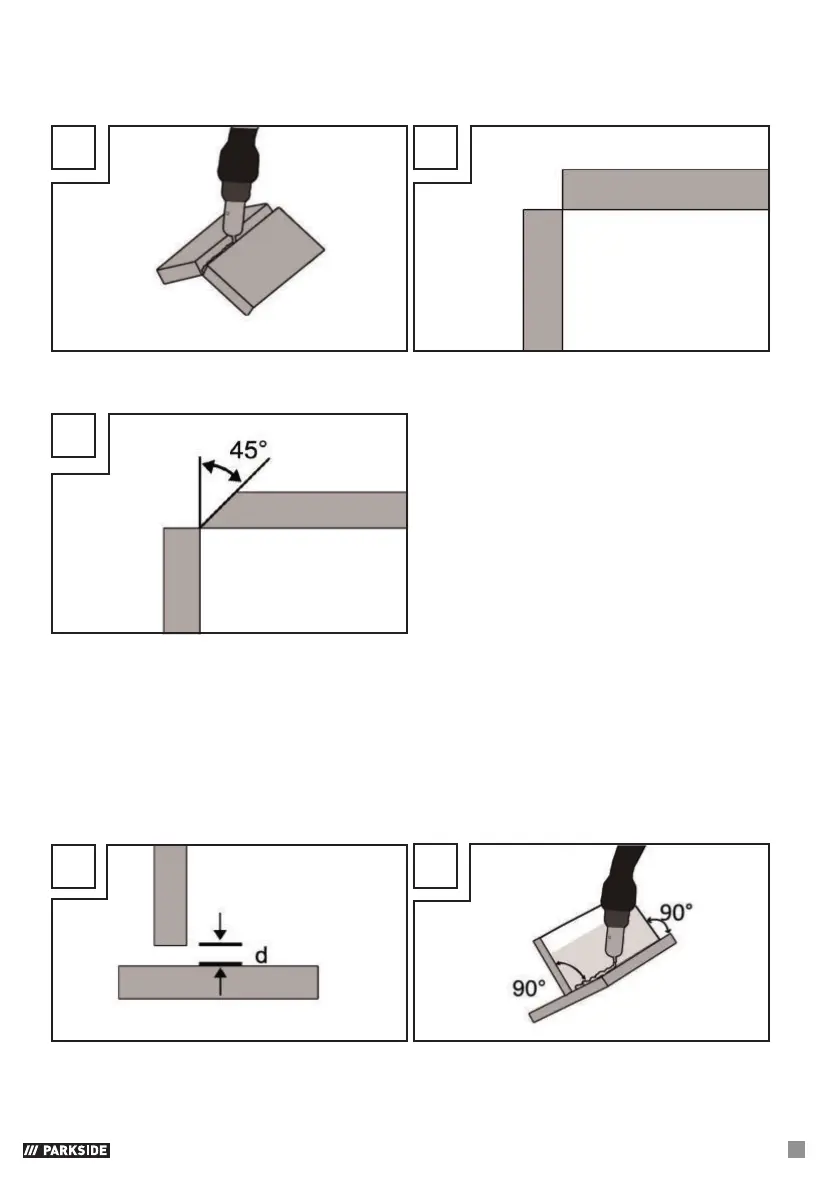

Welds on the outer edge
The preparation for this is very simple (Fig. V, W).
V
W
However, it is no longer expedient for thicker materials. In this case, it is better to prepare a joint as
shown below, in which the edge of the plate is angled (Fig. X).
X
Fillet weld connections
A fillet weld is created if the workpieces are perpendicular to each other. The weld should be shaped
like a triangle with sides of equal length and a slight fillet. (Fig. Y, Z).
Welds on an inner edge
The preparation for this weld joint is very simple and is carried out for thicknesses of 5 mm.
The dimension “d” needs to be reduced to a minimum and should always be less than 2 mm (Fig. Y).
Y
Z
However, it is no longer expedient for thicker materials. In this case, it is better to prepare a joint as
shown in Figure X, in which the edge of the plate is angled.
