PCE Instruments PCE-3000ULS - Settings Tab Configuration

51

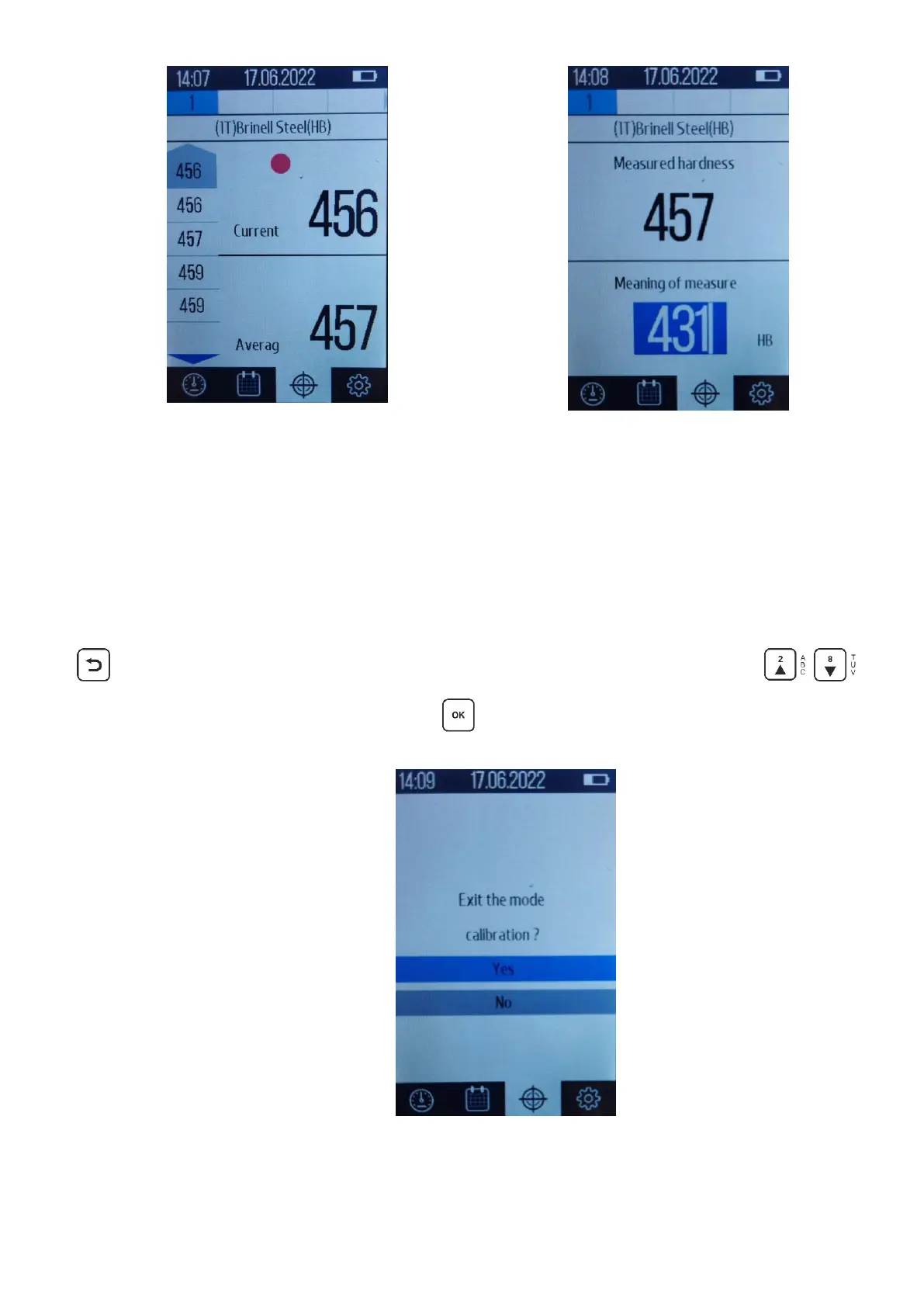

Figure 2.49 - One point calibration of the
device
Figure 2.50 - Enter the specific value of the
calibration measure
After performing these actions, a message will be displayed stating that the calibration
has been adjusted, and it will be saved in the "Custom" section under a new name.
To exit the process of creating a calibration on one point, you need to press the button
, a dialog box will appear (Fig. 2.51) where you need to use the buttons to
select "Yes" or "No" and press the button .
Figure 2.51 - Exit the One-point calibration mode
