1.3 THE CONTROL PANEL
STP
.
RC
U
.
.
(ALWAYS PRESENT)
(SELECTABLE LINE)
4807-024 Rev C
OUTPUT
FREQUENCY
OUTPUT
CURRENT
STATUS
OVERLOAD
(FLASHING)MESSAGE
STATUS
CONTROL LINE
STATUS LINE
SCREEN
REFERENCE No.
‘SELECT’ KEY
‘-’ KEY ‘+’ KEY
CONTROL KEYS
LED INDICATORS
NO FAULT
(FLASHING = FAULT)
DRIVE
RUNNING
POWER
ON
CONTROL
MESSAGE
SCREEN
RUNON OK
1
0
MT R
=
1
4
9
A
z
H
00
+
A
00

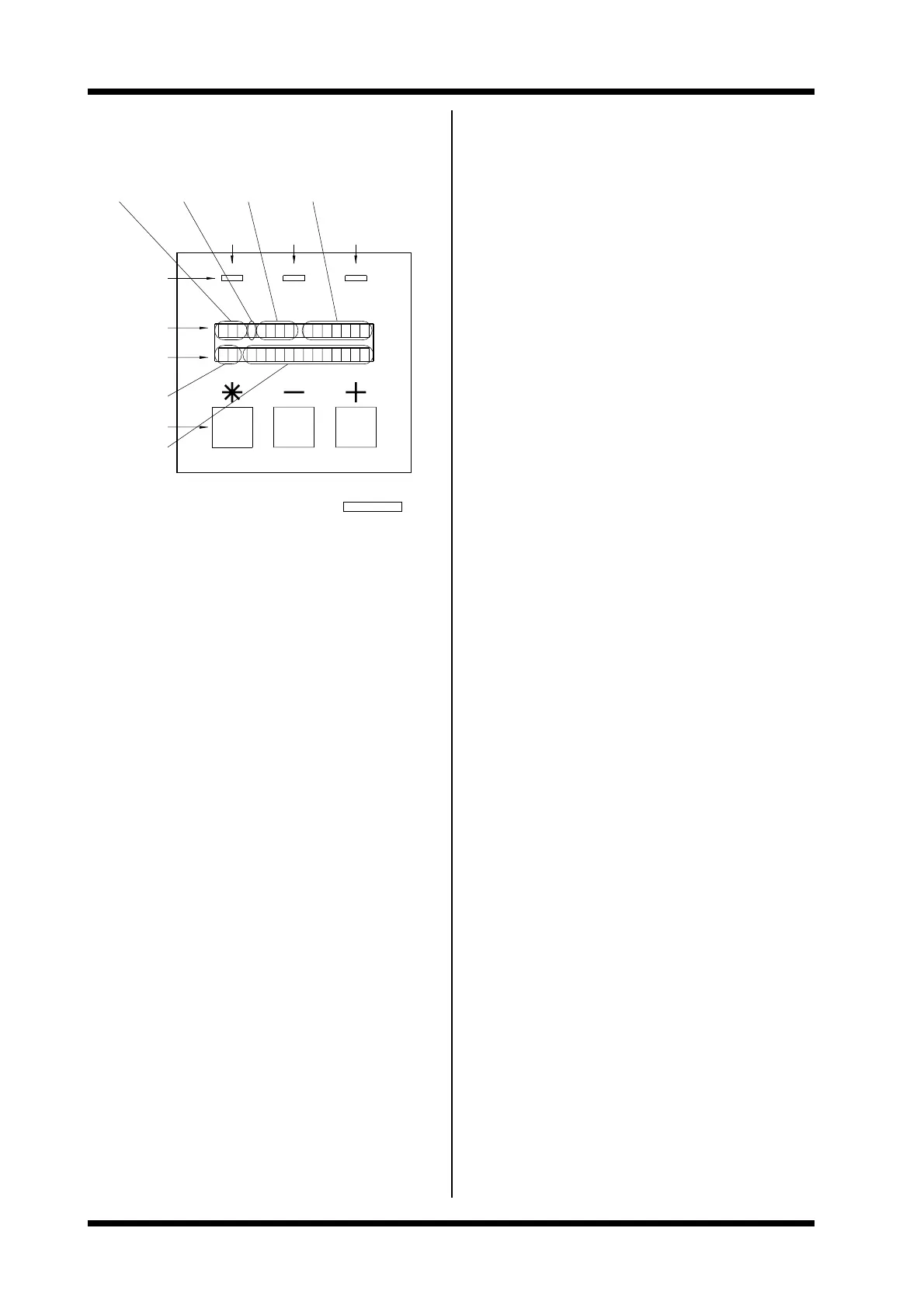

Figure 1.5 The Control Panel
1.3.1 THE LED INDICATORS
ON Indicates mains power is supplied to the Microdrive
and stored charge is present
RUN Indicates the Microdrive is running (driving a motor)
OK Indicates that the Microdrive is operating normally
OK Flashing: Indicates that the Microdrive has tripped
on fault protection
1.3.2 USE OF THE CONTROL PANEL
The LCD Display
The Microdrive has a 16 character by two line LCD display.
The lines each have different functions:
- The STATUS LINE is always present and shows
the Microdrive status, the output current and the
output frequency.
- The CONTROL LINE display is used to view
and/or adjust the many parameters of the
Microdrive.
Use of the Control Keys
The control keys are used to view and/or adjust the
parameters of the Microdrive.
Screen Selection
- Use + and  to examine the displays.
Notes: Only the bottom line changes.
Hints: The reference number tells you which screen you
are on.
Changing a value
- Use + and  to locate the desired screen.
- Press and hold select to adjust the value.
- Now use + and  to adjust the value.
- Release select to enter new value.
Hints: For reasons of security the Microdrive must be in
commission mode (Screen 98) before some
adjustments can be made.
Security Protection
Reaching the commission mode (Screen 98):
Since access to this screen allows any user to adjust all
settings, access is hidden. To access this screen, scroll to
(Screen 97) release and then hold the + button for five
seconds.
1.3.3 SCREEN ORGANISATION
The Microdrive screens are organised in a particular
sequence as shown below.
When delivered the Microdrive is configured to show only
the short menus of the standard configuration (Screen 96
controls this). Only the screens essential for general
applications are shown. All other screens are still active, but
hidden.
Local Control Screens
Screen No. -3
Function Input Emulation
Description Commissioning Check Screen
Screen No. -2
Function Keyboard Frequency
Description Keyboard Frequency Control
Screen -1
Function Keyboard Stop/Start
Description Keyboard Stop/Start Control
Extended Status Screens
Screen No. 0
Function Primary Screen
Description General Information Display
Screen No. 1
Function Secondary Screen
Description Alternative Information Display
Screen No. 2
Function Fault Screen
Description Fault Display Messages
Adjustment Screens
Screen No. 1059
Function
Description Parameter (Adjustment) Settings
Mode Screens
Screen No. 6094
Function
Description Mode (Switch) Settings
Screen Controls
Screen No. 95
Function Language Selection
Screen No. 96
Function Short/Full Menus
Screen No. 97
Function Initialisation
Screen No. 98
Function Commission Mode
