PeakTech 2755 - Device Controls; Function Keys

4. Control

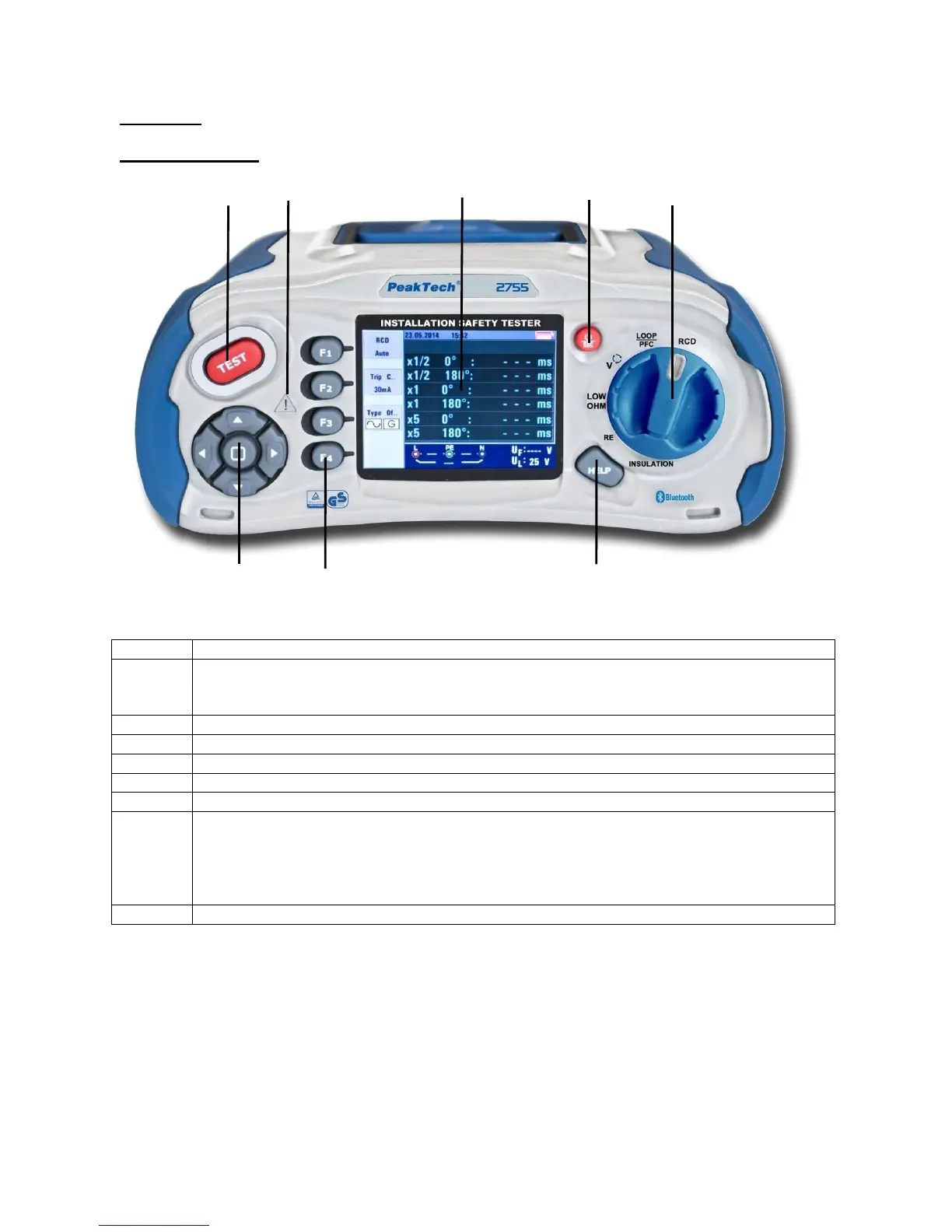

4.1. Function keys
No.
Description
1
Starts the selected test. The T key is surrounded by a “touch pad”. The touch pad
measures the potential between the operator and the tester’s PE terminal. If you exceed
a 100 V threshold, the symbol (2) above the touch pad is illuminated.
2
Warning lamp
3
320X(RGB)X240 color active matrix
4
Press and hold Turns the tester on and off. Short Press return the latest status
5
Function selector switch
6
Navigation keys: Enter, Up, Down, Left, Right
7
Selects the sub-menus from the Test Mode selected by the rotary switch:
F1
F2
F3
F4
8
Accesses help menus
-58-
2
3
4
5
1
6
7
8
