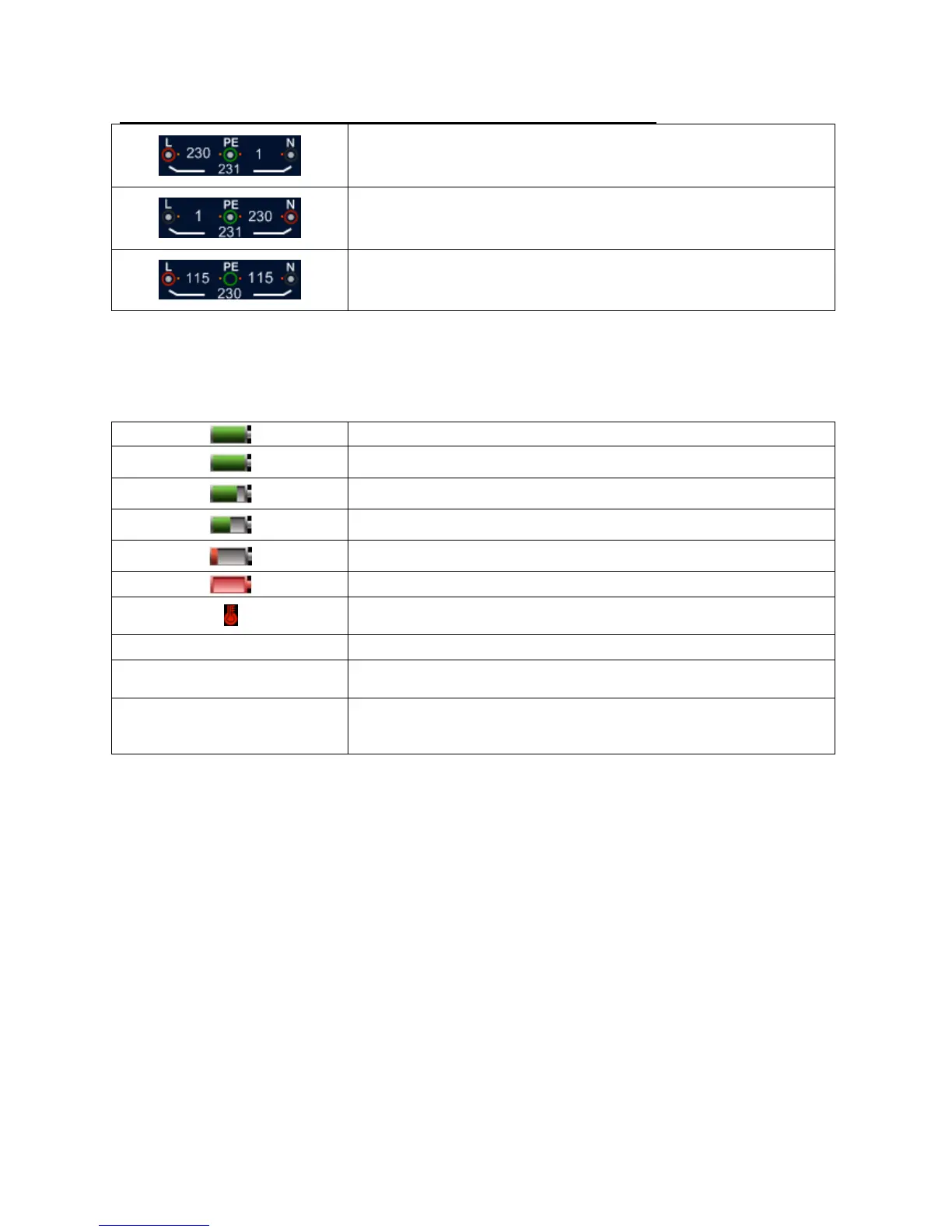

5.1.2. Displayed icons (symbols) and messages in LOOP/PFC function
Indicates the correct input terminal connectivity. The user should
connect the test leads to the appropriate terminals.
Indicates L connection is connected on the N input terminal and
vice-versa
Indicates no connection on the PE input terminal
If the wiring condition is other than normal, the Tester is limited on its measurements that can be
performed.
Notes:
1) Will not detect two hot wires in a circuit.
2) Will not detect a combination of defects.
3) Will not detect reversal of grounded and grounding conductors.
Indicates the battery status
Indicates high temperature and therefore cannot make any
measurements
Function in use - measurement being carried out
During the measurement, the RCD has tripped therefore no test
result obtained
Appears during the No Trip Loop Measurement, and indicates that
the displayed value may
not be accurate due to “mains” interference - test to be repeated
To Next Page
