PeakTech 2755 - Voltage Function Display Icons

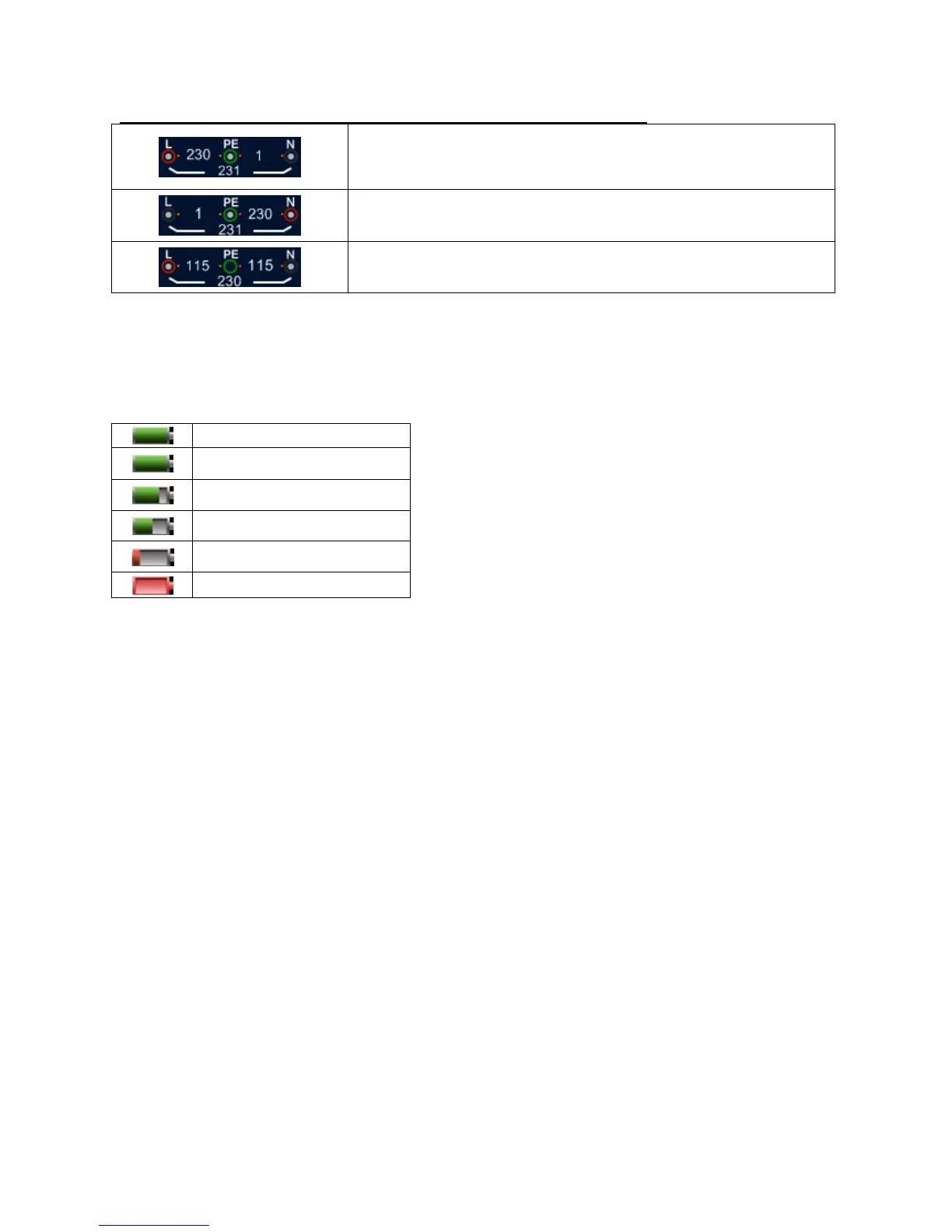

5.1.1 Displayed icons (symbols) and messages in VOLTAGE function
Indicates the correct input terminal connectivity. The user should
connect the test leads to the appropriate terminals.
Indicates L connection is connected on the N input terminal and
vice-versa
Indicates no connection on the PE input terminal
If the wiring condition is other than normal, the Tester is limited on its measurements that can be
performed.
Notes:
1) Will not detect two hot wires in a circuit.
2) Will not detect a combination of defects.
3) Will not detect reversal of grounded and grounding conductors.
Indicates the battery status
100%
80%
50%
30%
Low Battery
