PeakTech 2755 User Manual

5.2.7 Using the VOLTAGE Function
WARNING!
Do not use on a circuit whose voltage either L-L or L-N exceeds 500V AC
Measuring the Voltage and Frequency

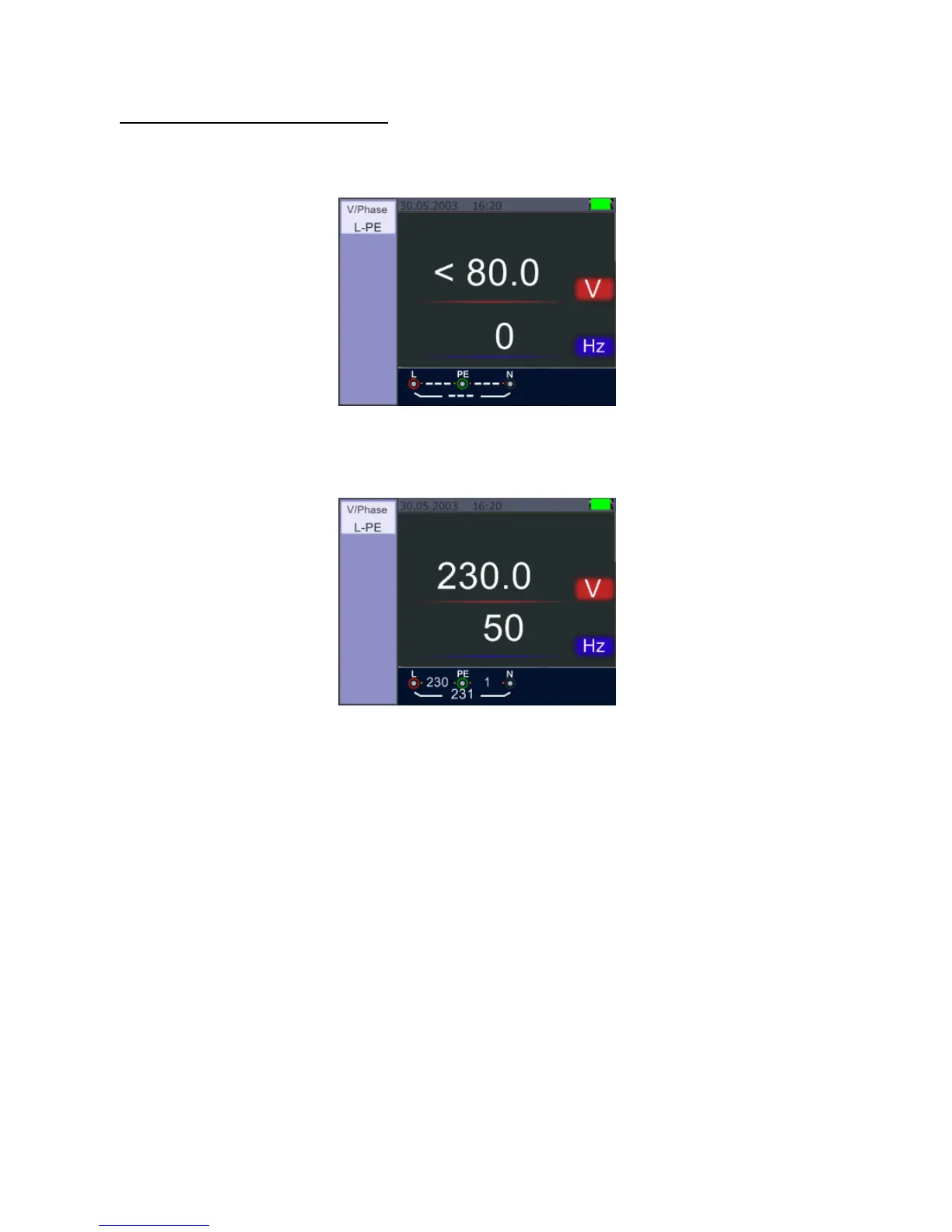

Standby screen for the Voltage and Frequency
1. Connect the test lead input terminal
2. Turn the rotary switch to the V position
Screen while measuring Voltage and Frequency
Do not attempt to measure when the input voltage is above 500V AC.
Value at the top right hand corner represents the Voltage, and the value below the frequency .
The display will appear without the TEST button operated.
-80-
