P350 Operation Manual 4
1.2 Cable drums
The system supports either a powered or manual drum that can accommodate cable lengths of 100m (330’),
150m (495’), 200m (660’), 250m (820’) and 305m (1000’). The powered drum contains an integral power supply whilst
the manual drum requires an external power supply unit.
The cable drum cassette in the powered drum is user-replaceable. Refer to the Appendix for instructions on how to
remove and install the cable drum cassette.
Please contact your local representative or visit www.pearpoint.com for a complete list of spares and accessories.
Powered drum
1. Command module support stand.
2. On/Off switch. Switches the system on or off.
3. Command module.
4. Reel compartment: Houses up to 305m (1000') of
cable wound onto the drum cassette.
5. Handle bars, wheels and removable handles: Allow
you to manoeuvre the system easily into position
6. Emergency stop: Instantly shuts off system power.
When initiated, the system must be reset.
7. Pushrod connector: Connect and power
compatible P340 pushrod systems to your P350
controller.
8. Pendant Controller connector, for joystick/button
control of system.
9. Command module connector: To connect the
command module link cable.
10. Power on/off indicator. A White LED lights up when
the PSU is switched on and powered up.
11. Power supply socket: To connect mains power.
12. Fuse holder: 5 x 20mm T12A 250V cartridge fuse
13. Crank handle: Will allow the manual retrieval of the
deployed cable. (Behind side panel).
14. Cable rollers.
.
Manual drum
15. Cable drum: Houses up to 305m (1000') of cable.
16. Cable brake.
17. Crank handle socket.
18. Command module support clamp.
19. PSU link cable socket.
20. Manual layering handle: To assist with laying cable
evenly on the drum.
21. Cable rollers.

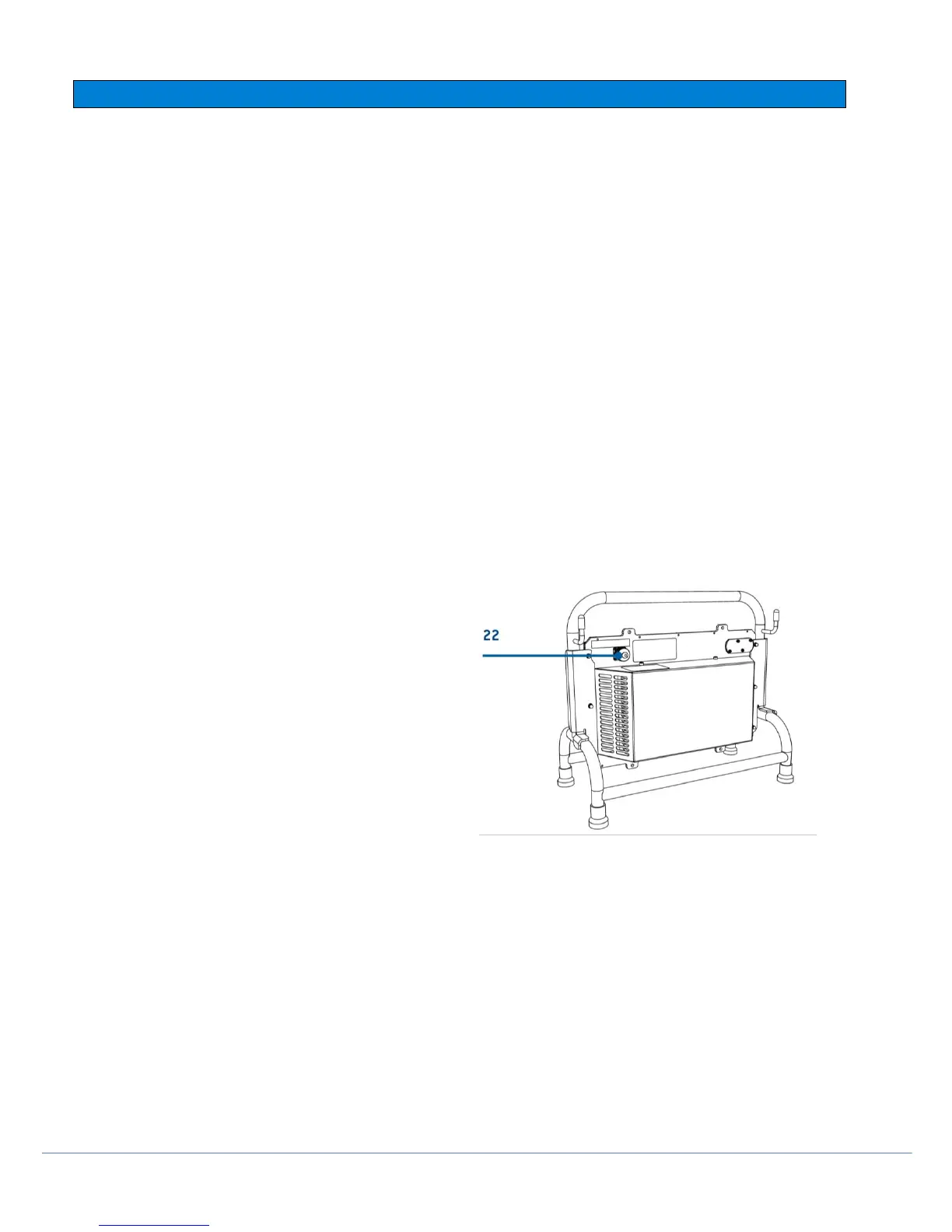

External PSU (manual system only)
22. Link cable connection for manual drum.
