P350 flexitrax Operation Manual 9
Section 2 - System assembly
The system can be setup in a large number of ways, depending on your survey requirements. This section provides
details on system assembly. You will as a minimum require an Allen key set and a range of general purpose
screwdrivers.
CAUTION! If using a generator, ensure that this is compatible with the P350 system. Refer to the Generator
Selection paragraph in the preface of this document for further information
CAUTION! Before attempting to assemble the system, ensure that the power is switched off
CAUTION! Check that all the link cables are connected as per instructions.
CAUTION: Do not replace the C-Clamp modified screws (at rear of tractors and cameras) with standard ‘off the
shelf’ screws, as these have not been designed to secure connection.
2.1 Crawler, Camera and accessories
The P354 and P356 crawlers have a variety of wheels, tires, cameras and accessories to suit your survey. The figure
below demonstrates some of the options available.
It is necessary to match the appropriate wheel-set connected in the MENU > SETUP > EQUIPMENT > WHEELS
menu, incorrect wheel settings will cause motor strain, incorrect behaviors and early life failure on the crawlers.

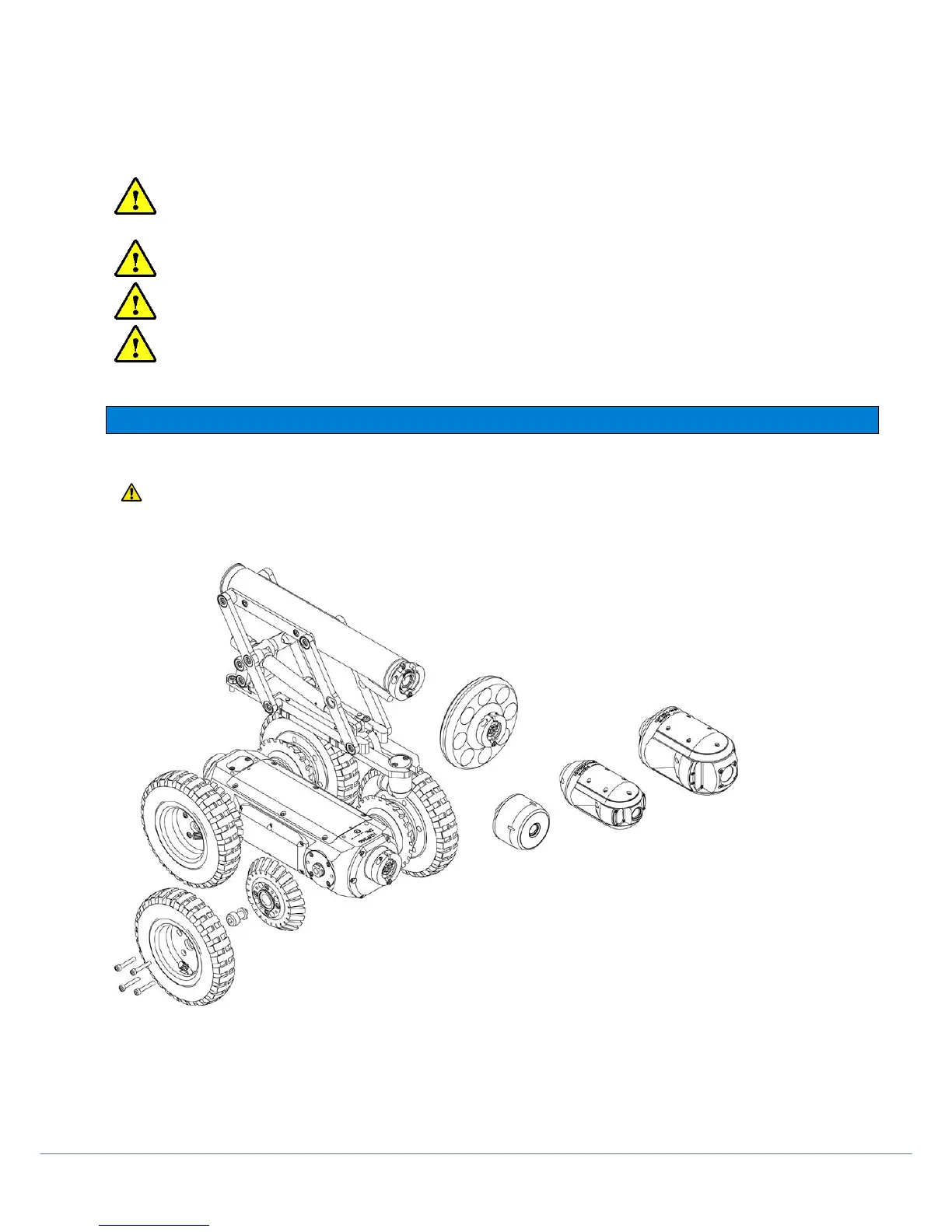

Figure 2.1: P356 crawler assembly
Crawler weight (P354 Only)
The crawler weight is a metal plate designed to increase traction by adding more weight to the crawler. Attach the
weight on the crawler body before attaching other wheels and accessories, then secure with the provided screws
