Pentair Sta-rite INTELLIPRO User Manual

INTELLIPRO
®
Variable Speed Pump Installation and User’s Guide
26
INTELLIPRO
®
Variable Speed Pump Installation and User’s Guide

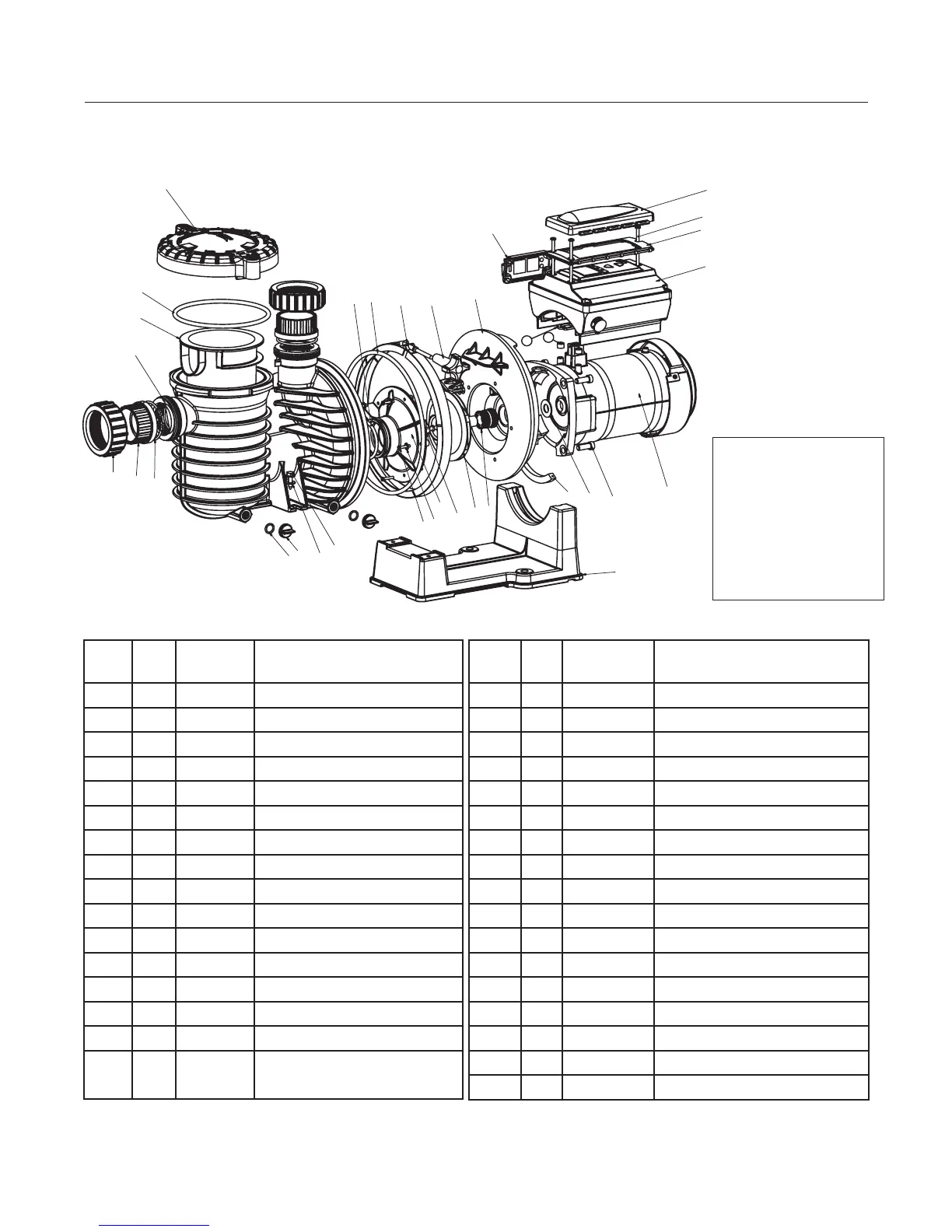

REPLACEMENT PARTS
9
13
8
7
25
17
27
26
20
32
33
21
24
23
5
19
31
30
29
18
10
1
2
11
3
6
4
6
16
15
12
28
14
22
Box A
Pkg. 188 2” Slip Union Kit:
(Included with the pump)
U11-200PS
U9-362
U11-196PS
Pkg. 189 2” NPT Adapter Kit:***
U11-200PS
U9-362
U11-199P
Union Collar (2)
O-Ring (2)
2” Slip Adapter (2)
Union Collar (2)
O-Ring (2)
2” NPT Adapter (2)
IntelliPro
®
Variable Speed Pump Replacement Parts(BlackColoredPumps)
(*)IncludesTRAPCOVER,TRAPRINGANDCOVERO-RING
(**)IncludesTRAPBODY,BASKET,DRAINPLUGSANDTRAPCOVERASSEMBLY
(***)THISKITISNOTINCLUDEDWITHTHEPUMPBUTMAYBEPURCHASEDSEPARATELY.
ITEM
NO.
QTY. PART NO. DESCRIPTION
1 1 C19-37a V-CLAMP
2 1 WC-36-22 CLAMP, KNOB
3 1 350301 COVER, FWC ASSEMBLY
4 3 350107 10-24 3 1/4” PH MS 18-8 SS
5 2 U9-362 O-RING #2-231
6 1 357290 CVR CNTR ASSY, BLK
7 5 U43-21SS #8 EXT TOOTH WASHER
8 5 U30-922SS SCREW DIFFUSER
9 1 350108 GASKET INTELLIPRO DRIVE
10 1 U9-228A O-RING
11 1 C103-194P SEAL PLATE
12 4 U30-99SS SCR CAP 3/8-16 X 1” SOC HEAD
13 3 350142 CAP SPACER
14 1 C35-11 MOTOR PAD
15 4 357294 MTR 3.2KW PMSM VFD
16 1 353252
DRIVE INTELLIPRO VARIABLE
SPEED PUMP
ITEM
NO.
QTY. PART NO. DESCRIPTION
17 1 37007-6080 IMPELLER SCREW
18 1 U9-374 O-RING
19 1 35505-1440 O-RING 6.90 O.D. 6.35 I.D.
20 2 U9-359 O-RING DRAIN PLUG
21 2 U30-918 SCR 5/16-14 X 1 IN LG HI-LO HEX
22 1 C4-78P BASE
23 2 U11-196PS 2” SLIP ADAPTER
24 2 U11-200PS UNION COLLAR
25 1 C1-271P DIFFUSER
26 2 354444Z SHAFT SEAL, GREEN
27 1 C105-238PLA IMPELLER ASSEMBLY
28 1 17351-0009 SLINGER PUMP SHAFT 1/16 IN
29 1 17307-0110S TRAP COVER ASSEMBLY *
30 1 17307-0110S TANK BODY ASSEMBLY **
31 2 C8-58P TRAP BASKET
32 2 U78-920P DRAIN PLUG
33 2 U43-41SS WASHER 5/16 TYPE B NARROW
